PLC Frequency Control Steel Hat Channel Roll Forming Machine With 0-15m/min Forming Speed

Description of Steel Hat Channel Roll Forming Machine

• Metal steel hat channel have become a competitive and widely used product in the building industry giving a fire proof and easily erected system for partitioning and various other uses. The component parts of the system are ideal rollform applications.

• There are many kinds of profiles of the steel hat channel as the different market has the different requirements, we design and produce the forming machine according to clients’ drawings or samples normally.

Main Components of Hat Channel Roll Former

• Decoiler / Uncoiler--------------------------------------------------------------------------1 Unit
• Pinch Feeding & Leveling-----------------------------------------------------------------1 Unit
• Punching--------------------------------------------------------------------------------------1 Unit

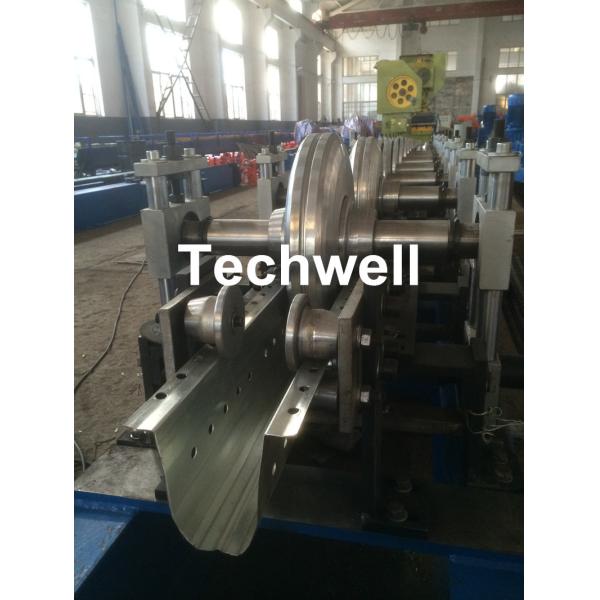

• Main Roll Forming Machine---------------------------------------------------------------1 Unit
• Cutting to Length----------------------------------------------------------------------------1 Unit
• Hydraulic Station-----------------------------------------------------------------------------1 Unit
• PLC Computer Control Board-------------------------------------------------------------1 Unit
• Runout Table---------------------------------------------------------------------------------1 Unit

Main Technical Parameters of Hat Channel Roll Forming Machine

Flow Chart of Hat Channel

Manual Decoiler ---- Feeding guide & Leveling Device ---- Punching------Roll Forming ---- Cutting ------

Run out table

Hat Channel Roll Forming Machine Reference Drawing

Applications

Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...

Output Table Products

Competitive Advantages

1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

More Machine Pictures
