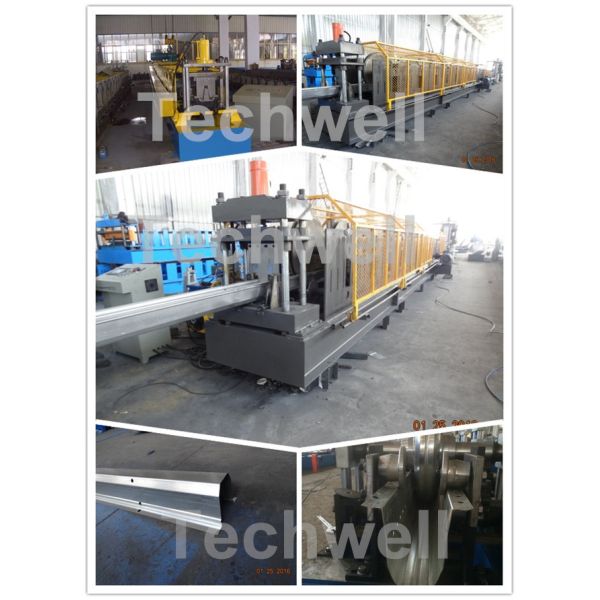

GI, Carbon Steel Top Hat Purlin Roll Forming Machine, Furring Channel Roll Former With 18 Roll Stands

Introduction of Top Hat Purlin Forming Machine

Top hat channel machine in which the adjustable pedestal system is introduced can be used to produce different height top hat purlin.
Adapting the PLC, touch screen, and frequency converter system, it applies convenient operation, stable speed control and precise production

Main Technical Specificaations of Top Hat Purlin Roll Former

1. Coil Material

• ​Thickness of sheet: 1.5-3.0mm
• Coil width: Customer-made
• Yield strength: 250-350Mpa
• Material: GI, Carbon steel

2. Decoiler / Uncoiler

• Coil width: Max.600mm
• I.D: 508-610MM
• O.D: Max.1500mm

3. Pinch feeding & leveling

• Feeding rollers: 4 rollers
• Leveling roller: 7 Rollers ( upper 3 rollers, bottom 4 rollers )

4. Punching

• Punching type: Hydraulic punching
• Punching die: Cr12Mov, quenched, HRC58-62

5. Top hat channel forming machine

• Forming stations: 14 stations (Depend on profiles)
• Roller material: GCr15 steel, HRC58-62
• Diameter of shaft: 80mm
• Shaft material: High grade 45# steel
• Drive type: Chain transmission
• Forming speed: 0-15m/min
• Main power: 15KW

6. Cutting device

• Cutting type: Hydraulic cutting
• Cutting blade: Cr12Mov, quenched
• Cutting tolerance: 10m+/-1.5mm
• Encoder: OMRON Brand

7. Electrical control

• PLC: PANASONIC Brand or Custom-made
• Inverter: YASKAWA Brand or Custom-made
• Touch screen: MCGS Brand or Custom-made
• Operation type: Touch screen & Button

8. Hydraulic station

• Hydraulic station: Famous Chinese brand
• Hydraulic power: 7.5KW

9. Runout table

• Table type: Simple nonpower type
• Function: To support the finished panels

Main Components of Top Hat Channel Forming Machine

Flow Chart of Top Hat Channel

Manual Decoiler ---- Feeding guide & Leveling Device ---- Punching------Roll Forming ---- Cutting ------

Run out table

Reference Profile Drawing

Applications

Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...
