Specifications
Brand Name :
TECHWELL
Model Number :
TW-GTM
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 Sets
Delivery Time :
55-65 working days
Packaging Details :
Standard Packing
Price :
Contact Us
Material :
Galvanized Coil
Forming Station :
16-18 Step
Material Thickness :
0.8-1.2mm
Main Power :
2 x 11 KW
Forming Speed :
0-15m/min
Cutting Type :
Hydraulic Cutting
Description

Steel Structure Floor Deck Cold Roll Forming Machine For Galvanized Steel Sheet

A). Main Components

1. Decoiler 1 Unit
2. Feeding Guide 1 Unit
3. Main Roll Forming Machine 1 Unit
4. Hydraulic Cutting Device 1 Unit
5. Hydraulic Station 1 Unit
6. PLC Computer Control 1 Unit
7. Output Table 1 Unit

B). Main Specifications

No. Item Specification
1 Material Galvanized steel sheet
2 Thickness of Coil Sheet 0.8 --1.2 mm
3 Main Motor Power 18.5kw
4 Forming Speed 10--12m/min
5 Hydraulic Station Power 4kw
6 Quantity of Stands About 24 groups
7 Hydraulic Pressure 10~12Mpa
8 Controlling System PLC
9 Index Error of Length 10m±1.5mm
10 Total Weight About 1800kg
11 Voltage 380V 3 phase 50Hz or at buyers requirement

C). Competitive Advantages

1. High Quality

2. Reasonable Price

3. Good after Service

4. 1 Year Warranty

5. More Than 10 Years Experience

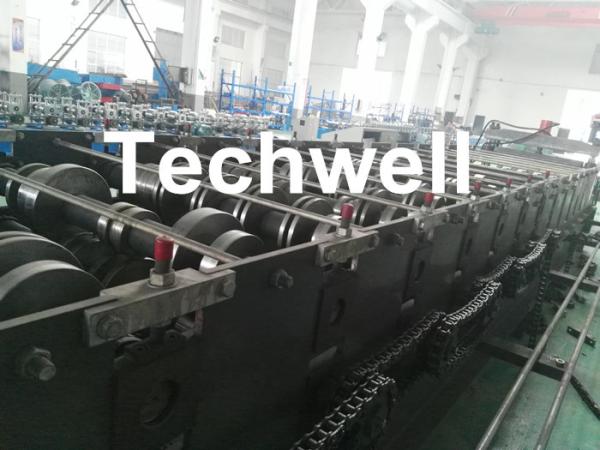

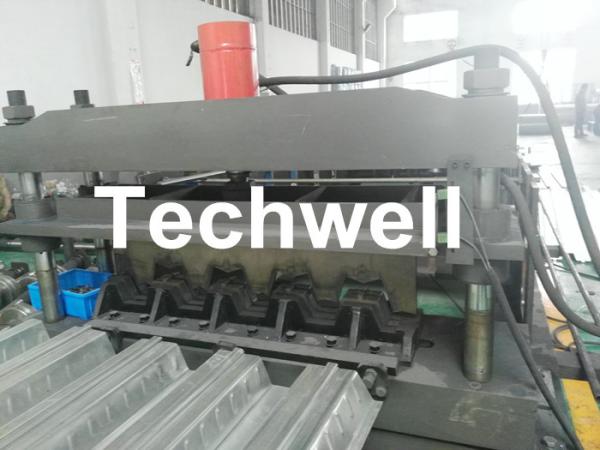

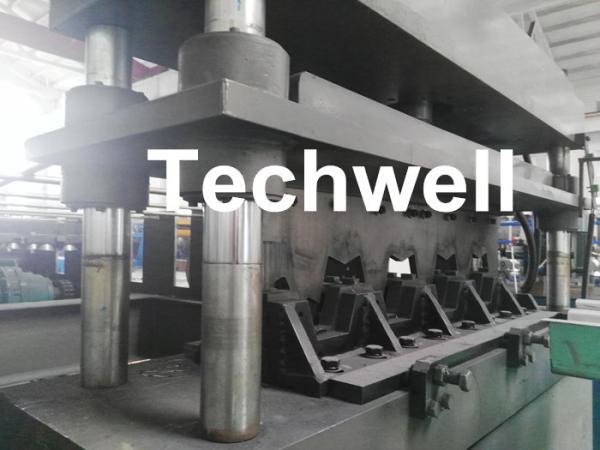

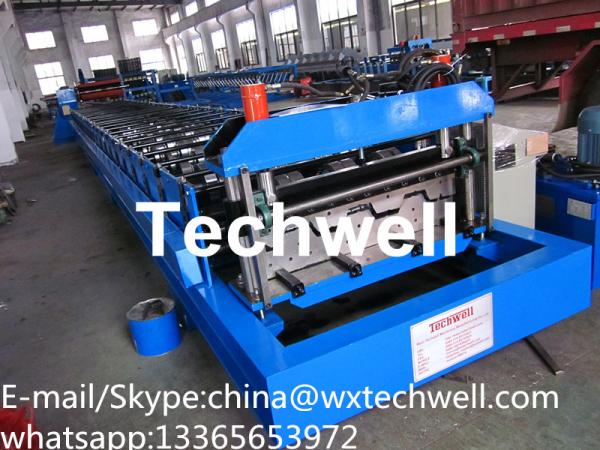

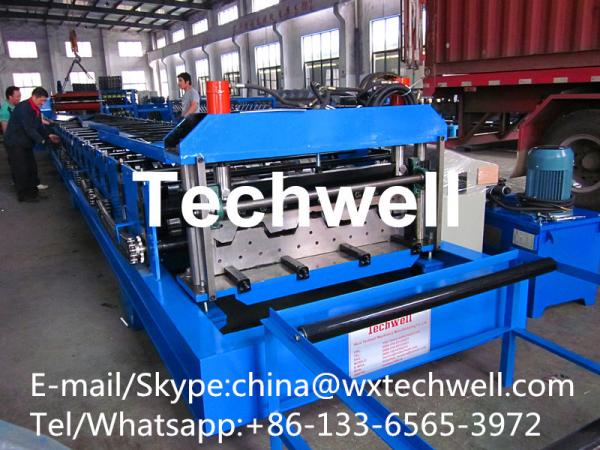

D). Machine Pictures

Steel Structure Floor Deck Cold Roll Forming Machine For Galvanized Steel Sheet

E). Output Products Pictures

Steel Structure Floor Deck Cold Roll Forming Machine For Galvanized Steel Sheet

E). Applications

Steel floor deck, Metal deck, Steel deck, Metal decking sheet, Steel structure floor deck...
