Specifications
Brand Name :
TECHWELL
Model Number :
TW-GTM
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 Sets
Delivery Time :
55-65 working days
Packaging Details :
Standard packing
Price :
Contact Us
Material Thickness :
0.4-0.8mm
Main Power :
4KW
Material :
Galvanized Coil
Diameter of Axis :
￠65mm
Cutting Type :
Hydraulic Cutting
Forming Station :
14 Steps
Forming Speed :
0-15m/ min
Marerial Width :
Depend On Profile
Description

Hydraulic Plate Rolling 4KW Main Power Z Purlin Roll Forming Machine

A). Main Components

  1. Decoiler ---------------------------------------------- 1 Unit
  2. Feeding ---------------------------------------------- 1 Unit
  3. Main roll forming machine ---------------------- 1 Unit
  4. Hydraulic punching device ---------------------- 1 Unit
  5. Hydraulic cutting device -------------------------- 1 Unit
  6. Hydraulic Station ----------------------------------- 1 Unit
  7. PLC computer control ---------------------------- 1 Unit
  8. Output table ----------------------------------------- 1 Unit

B). Main Speclications

  1. Material: G.i Coil
  2. Material Thickness:0.4-1.0mm
  3. Main Power: 4KW
  4. Hydraulic power: 4KW
  5. Forming Station: about 10 steps ( adopt Italy Technology )
  6. Axis Diameter: ¢ 70 mm
  7. Forming Speed: 0-15m/min
  8. Forming Frame Structure: Guiding Column + Slide Blocks;
  9. This forming frame structure design is much high precision than wall plate welding structure
  10. PLC Brand: PANASONIC Brand
  11. Machine Diameter: about 7000mm(L)x800mm(W)x1300mm (H)
  12. Weight of machine: about 4 Ton
  13. Voltage: 380V, 3 Phase 50Hz ( or depend on customer’s requirement )


C). Applications

Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...

D). Competitive Advantages

High Quality

Reasonable Price

Good after Service

1 Year Warranty

More Than 10 Years Experience

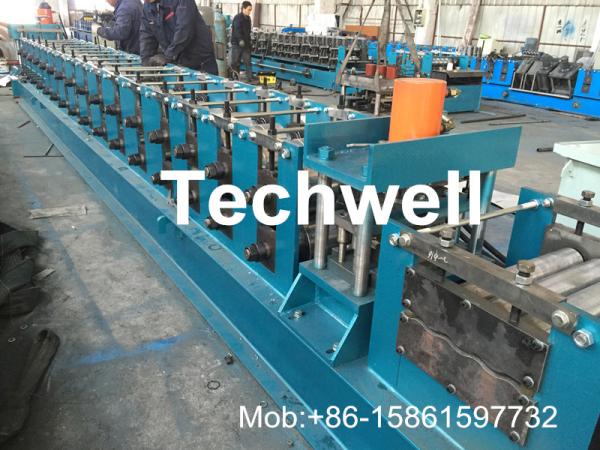

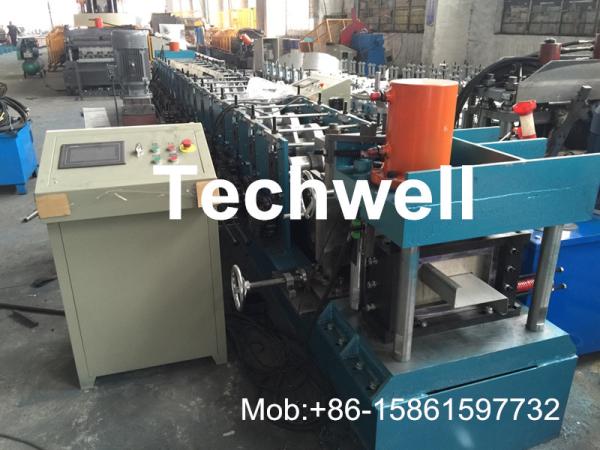

E). More Pictures

Hydraulic Plate Rolling 4KW Main Power Z Purlin Roll Forming Machine

Item Contact Methods
Contact Person Lemon
E-mail / Skype sales@wxtechwell.com
Tel / Whatsapp +86-15861597732
Website https://www.wxtechwell.com
