Specifications
Brand Name :
TECHWELL
Model Number :
TW-40*40
Certification :
CE, ISO Certificate
Place of Origin :
China
MOQ :
1 Set
Supply Ability :
10 sets
Delivery Time :
50 working days
Packaging Details :
export package
Usage :
solor bracket support structure
Material :
Galvanized coil
Material Thickness :
1.2-1.6mm
Forming Structure :
Weld structure, Chain Drive
Forming Station :
12 Stations
Cutting Type :
Hydraulic cutting
Description

Bracket Support Cold Roll Forming Machine for Solar Support Structure

Summary of Bracket Support Machine

1) This bracket channel forming machine line adopt galvanized steel coil production material to form profile L 40 * 40 * 7.5 through 3Ton hydraulic decoiler, pinch feeding, leveling, 1 group hydraulic punching, main roll forming, Hydraulic cutting and Non-power type support table.

2) The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.

3) Forming Speed: about 0-15 m/min ( excluding punching, cutting time);

4) The whole machine is fixed with mesh safety protection cover

5) All parts on shaft like roller, roller spacers, guiding column are chromium plating process

Main Specifications

Main Technical Parameter
Suitable Material Galvanized
Thickness 1.2-1.6mm
Coil width depend on profile
Forming Roller Stations 12
Diameter of Forming Shaft 70mm
Forming Speed 0-15m/min
Forming Roller Material GCr15 steel, coated with hard chrome 0.05mm
Cutter Material CR12Mov Mold steel, with quench treatment
Controlling system PLC with Touch screen & Inverter
Main Motor Power 11KW
Cutting Power 4KW
Machine weight 7500Kgs

Main Components

Decoiler ( Manual or Hydraulic type for Options) 1 Unit
Pinch Guiding Device 1 Unit
Leveling 1 Unit
Hydraulic Punching 1 Unit
Roll Forming System 1 Unit
Hydraulic Cutting System 1 Unit
PLC Control Box 1 Unit
Hydraulic Station 1 Unit
Roun Out Support Tables 1 Units

Roof Profile Drawing

Solar Support Structure Roll Forming Equipment , 1.2 - 1.6 mm Thick Roll Former Machine

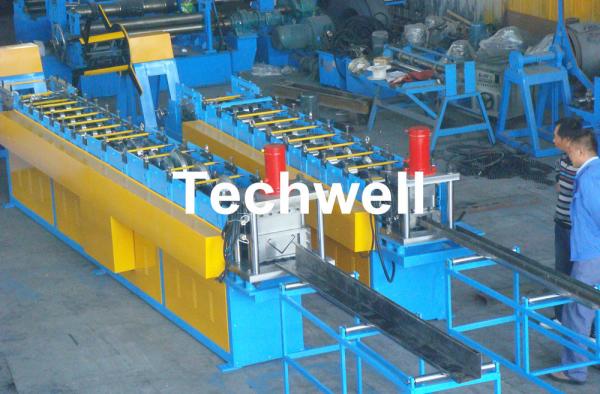

Bracket Support Machine Pictures

Solar Support Structure Roll Forming Equipment , 1.2 - 1.6 mm Thick Roll Former Machine
