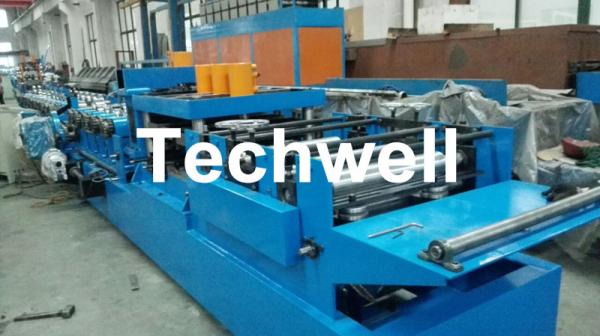

Fully Automatic Galvanized Steel CZ Purlin Roll Forming Machine, Steel CZ Section Profile Roll Forming Equipment

Description

1. One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
2. This line main forming drive adopt reducer motor and frequency conversion control, speed control…
3. It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min

Main Specifications

1. Material: G.i Coil or Carbon steel
2. Material Thickness:1.0-3.0mm
3. Landscape orientation adjustment range of Hole distance : 45-500mm
4. Length of purlin: >3m
5. Shaft Diameter: Φ80mm Max.
6. Forming Stations: about 16 Main rollers
7. Leveling Stations: 7
8. Feeding Stations: 2
9. Main Power: 20KW
10. Machine Diameter: about 12000mm(L)x2300mm(W)x1600mm(H) ( including main motor )
11. Weight of machine: about 12 Ton
12. Punching Model: Hydraulic Pre-Punching
13. This line main forming drive adopt reducer motor and frequency conversion control, speed control…
14. It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min.
15. Punching Die Material: Crv12MOV Steel

Working Flowing Process

Decoiler --- Feeding & Leveling Device --- Punching --- Cutting --- Main Forming --- Rectify Device --- Run out table

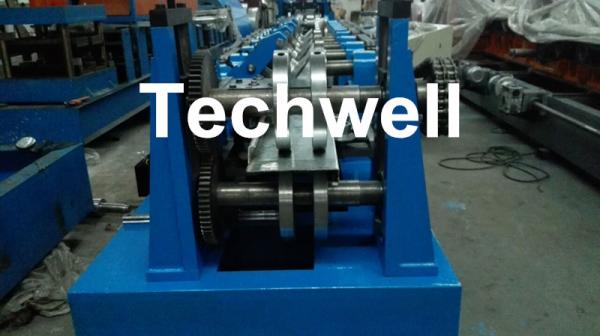

Main Components

Reference Profile Drawing

Competitive Advantages

High Quality

Reasonable Price

Good after Service

1 Year Warranty

More Than 10 Years Experience

Simple to operate when assemble

Easy to handle the products

Direct manufacturer, provide with high quality and best price.

More Machine Pictures
