Round Gutter Roll Forming Machine With PPGI Aluminum Forming Material, Forming Speed 0-15m/min

Summary of Gutter Roll Former

1). This roll forming machine adopts coil production material to form gutter through 3 Ton manual decoiler, pinch feeding, main roll forming part, Hydraulic cutting, hydraulic station, PLC control system, and Non-power type support table.

2). The whole machine adopts PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.

Main Technical Specifications

1. Forming Mateial Thickness: 0.4-0.8mm

2. Forming Material Type: PPGI, Aluminum

3. Machine Frame: high grade steel welded and tempering treatment

4. Forming Structure: Welded wall plte structure

5. Forming Motor: 5.5KW

6. Shaft Material: 45# high grade steel tempering treatment (HB220-260)

7. Shaft Diameter: 65mm

8. Bearing: HRB bearing (Top Chinese brand)

9. Roller Material: 45# high grade steel, and roller surface with hard chrome ≥ 0.05mm

10. Forming Speed: About 0-15m/min ( excluding cutting time )

11. Forming Stations: About 16 stations

12. Cutting Type: Hydraulic cutting after roll forming, Burr-free cutting

13. When cutting, Machine stop

14. Cutting blade material: Cr12Mov, Quench treatment, HRC58-62

15. Hydraulic Station Power: 3KW

16. Hydraulic Pressure: 10Mpa

Reference Profile Drawing

Main Components

• Decoiler / Uncoiler ------------------------------------------------------------1 Unit
• Pinch Feeding -----------------------------------------------------------------1 Unit
• Main Roll Forming ------------------------------------------------------------1 Unit
• Hydraulic Cutting--------------------------------------------------------------1 Unit
• Hydraulic Station--------------------------------------------------------------1 Unit
• Electrical Control Board------------------------------------------------------1 Unit
• Run-out Table------------------------------------------------------------------1 Unit

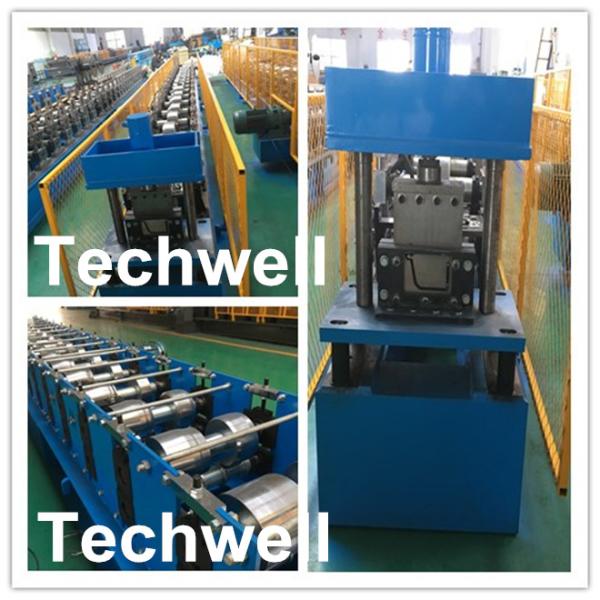

More Machine Pictures
