Manual Decoiler / Uncoiler , Umbrella Type With Manual Expanding & Passive Uncoil For 5 Ton
Manual Decoiler / Uncoiler , Umbrella Type With Manual Expanding & Passive Uncoil For 5 Ton
Manual Decoiler / Uncoiler , Umbrella Type With Manual Expanding & Passive Uncoil For 5 Ton
Manual Decoiler / Uncoiler , Umbrella Type With Manual Expanding & Passive Uncoil For 5 Ton
Manual Decoiler / Uncoiler , Umbrella Type With Manual Expanding & Passive Uncoil For 5 Ton
Manual Decoiler / Uncoiler , Umbrella Type With Manual Expanding & Passive Uncoil For 5 Ton
Manual Decoiler / Uncoiler , Umbrella Type With Manual Expanding & Passive Uncoil For 5 Ton
Manual Decoiler / Uncoiler , Umbrella Type With Manual Expanding & Passive Uncoil For 5 Ton
Specifications
Brand Name :
TECHWELL
Model Number :
TW-DECOILER
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Contact us
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 Sets
Delivery Time :
55-65 working days
Packaging Details :
Standard packing
Description

Manual Decoiler / Uncoiler, Umbrella Type With Manual Expanding & Passive Uncoil For 5 Ton

Description of Manual Decoiler Machine

1. Manual decoiler for roll forming machine is often used together with the light keel roll forming machine, and other simple roll forming machine.

2. For the decoiler, the mianly work is for supporting the coil. For some small machine, coil is quite light and easy to change. Meanwhile the customer does not have machine working speed requirements then choosing the manula decoiler is the right option.

3. The manual decoiler it is quite cheaper compared with motor decoiler and hydraulic decoiler. But the manual decoiler can not supply power and motor to the machine. Meanwhile for chaning coil, you need to do all the work mnanual.

Technical Specifications

  1. Decoiler type: Manual decoiler, umbrella type
  2. Manual expanding, passive uncoil
  3. Machine Frame: welding structure with shot lasting treatment
  4. Components: Base, brake device, inner hole support, expanding / tighten device
  5. Weight capacity of decoiler: 3Ton / 5Ton
  6. Coil I.D: 480-520mm
  7. Coil O.D: Max. 1500mm
  8. Max. coil width: 500mm (Depend on customer's requirement)
  9. Uncoiling speed: 0-15m/min
  10. Material of main shaft: 40Cr

Competitive Advantages

1. Professional

More than 10 years' rich experience!

a.Specialized in Manual Curved Arch Roof Sheet Forming Machine;

b.Keeping improving the quality.
2. Reasonable price

We can save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.
3. Easy to operate

More Competitive!
a. High efficiency
b. Low energy consumption

c. Reliable working
4. OEM / ODM

Customers’ design, color & logo are accepted!

Our outstanding experts and skilled workers are devoting their hard working, to ensure the machine with high quality.
5. ONE-Years warranty, whole life service.

Keep troubles far away from you!

Within the ONE-YEARS period, we could offer the replacement parts to the client free of charge for any parts damaged due to quality problems .

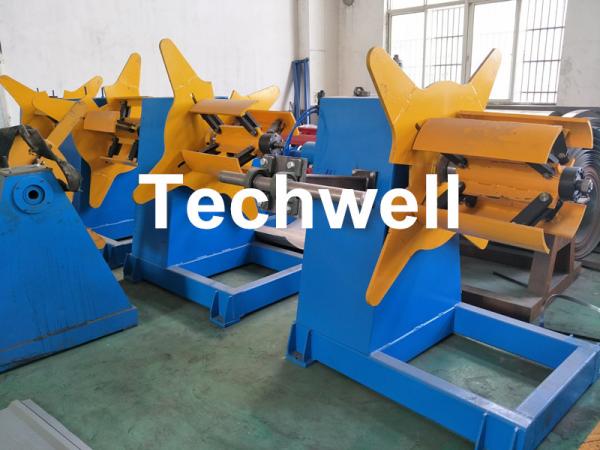

Machine Pictures

Manual Decoiler / Uncoiler , Umbrella Type With Manual Expanding & Passive Uncoil For 5 Ton

Workshop Machine Pictures

Manual Decoiler / Uncoiler , Umbrella Type With Manual Expanding & Passive Uncoil For 5 Ton

Contact Details

Company Wuxi Techwell Machinery Co.,Ltd
Website

www.wxtechwell.com

www.cold-rollformingmachine.com
E-mail / Skype sales@wxtechwell.com
Mob / Whatsapp +86-15861597732
