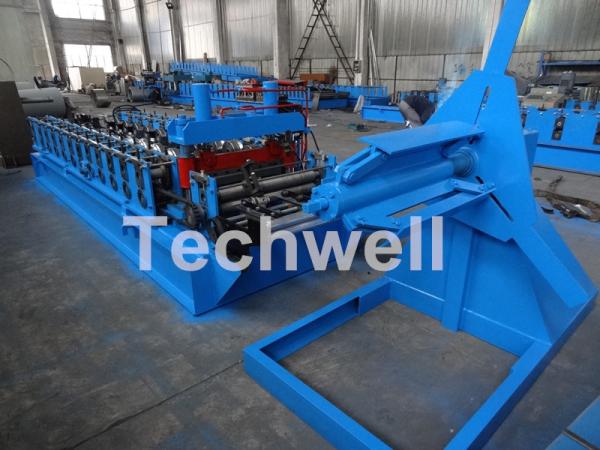

0.8-1.5mm Thickness Cold Roll Forming Machine For Making Traverse Machine With Motor 11KW

Features of Our Cold Roll Forming Machine:

a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is a screw which makes the machine flexible and stronger.
b) All the components of machines are from brand-famous enterprises so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
d) It is very easy to install the equipment and suitable for production in the factory.
e) Low noise with high efficiency

Cold Roll Forming Machine Main Specifications

1). The thickness of sheet: 0.8-1.5mm

2). Material: GI, Carbon steel

3). Decoiler Type: Passive type decoiler, or customized

4). Weight capacity of decoiler: Max. 5T

5). Forming stations: 14 stations (Depend on profiles)

6). Roller material: 45# high grade steel, and roller surface with hard chrome ≥ 0.05mm

7). Shaft diameter: Φ 75mm

8). Shaft material: 45# high grade steel tempering treatment

9). Drive type: Chain transmission

10). Forming Speed: about 0-15m/min (excluding cutting time)

11). Main power: 11KW

12). Cutting type: Hydraulic cutting

13). Cutting blade: Cr12Mov, quenched

14). Cutting tolerance: 10m+/-1.5mm

15). Hydraulic power: 4.0KW

16). PLC: PANASONIC brand

Working Flow Chart

Decoiler → Feeding Guide → Hydraulic Cutting → Main Roll Forming → Support Table

Our Cold Roll Forming Machine Main Components

Competitive Advantages

1. High Quality
2. Good after Service
3. 1 Year Warranty
4. More Than 10 Years Experience
5. Simple to operate when assemble
6. Easy to handle the products
7. Direct manufacturer, provide with high quality and best price.

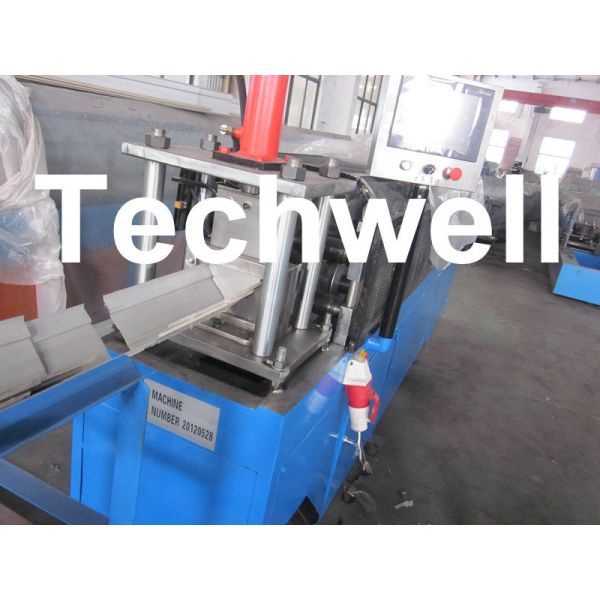

More Machine Pictures

Workshop Machine Photos

Company Introduction:

Wuxi Techwell engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old customers. In paticular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, through design and installation. Our goal is " Future by heartiness, faith leads to the world".
