Customized C Purlin Forming Machine Cold Roll 520mm 15m/Min
Customized C Purlin Forming Machine Cold Roll 520mm 15m/Min
Specifications
Brand Name :
TECHWELL
Model Number :
TW-DECOILER
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Contact us
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 Sets
Delivery Time :
55-65 working days
Packaging Details :
Standard packing
Decoiler Type :
Rotary Double Head Decoiler Machine
Coil I.D :
480-520mm
Coil O.D :
Max. 1500mm
Width of strip :
120-350mm (Depend on customer's requirement)
Uncoiling speed :
0-15m/min
Material of main shaft :
40Cr
Description

Customized Professional Manufacturer C Purlin Cold Roll Forming Machine

Description of Double Head Uncoiler Machine

This machine is made up of support shelf, principal axis box and material shelf. The principal axis is a whole body

and has a long axis to support material shelf. Its small volume, loading convenient and has good flexibility.

1. save the material changing time ,improve production efficiency.

2. suitable for fast punching speed like stator rotor,and CE sheet ect

3. be able to work with straightener.

4. install the motor and the electric control to change into motive stand.

5. install the left and right shifter is available if material is too narrow .

Technical Specifications

Machine Main Specification

Model

 MTD-200 MTD-250 MTD-300 MTD-400 MTD-500 MTD-600
Material width (mm) 200 250 300 400 500 600
Material thickness (mm) 0-2.0 0-2.0 0-2.0 0-2.0 0-2.0 0-2.0
Coil inner diameter(mm) Φ480-520
Coil outer diameter(mm) Φ1500
Material weight 500×2 500×2 1000×2 1000×2 2000×2 2000×2
Speed of feeding(m/min) 15
Coil expansion Manual expansion or Hydraulic expanding, tension

Competitive Advantages

1. Professional

More than 10 years' rich experience!

a.Specialized in Manual Curved Arch Roof Sheet Forming Machine;

b.Keeping improving the quality.
2. Reasonable price

We can save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.
3. Easy to operate

More Competitive!
a. High efficiency
b. Low energy consumption

c. Reliable working
4. OEM / ODM

Customers’ design, color & logo are accepted!

Our outstanding experts and skilled workers are devoting their hard working, to ensure the machine with high quality.
5. ONE-Years warranty, whole life service.

Keep troubles far away from you!

Within the ONE-YEARS period, we could offer the replacement parts to the client free of charge for any parts damaged due to quality problems .

More Machine Pictures

Customized C Purlin Forming Machine Cold Roll 520mm 15m/Min

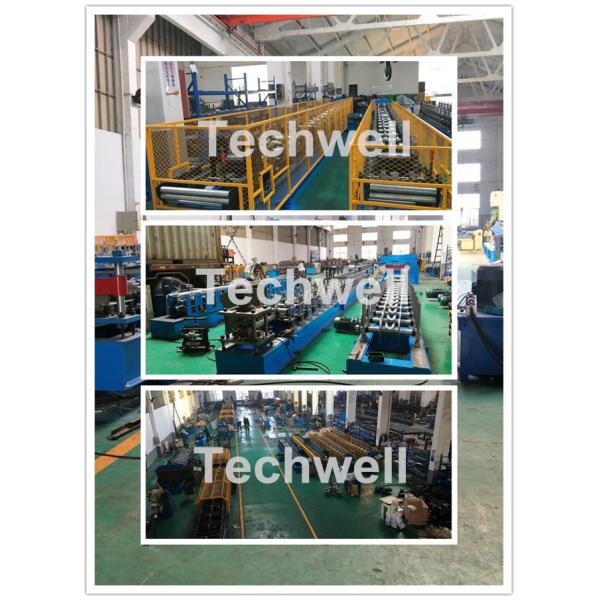

Factory Pictures

Customized C Purlin Forming Machine Cold Roll 520mm 15m/Min

Contacts of WUXI TECHWELL

Company Wuxi Techwell Machinery Co.,Ltd

Website

www.wxtechwell.com

www.cold-rollformingmachine.com
E-mail / Skype sales@wxtechwell.com
Mob / Whatsapp +86-15861597732
