G550 Material 0.18mm Glazed Tile Roll Forming Machine , Roof Tile Roll Former
G550 Material 0.18mm Glazed Tile Roll Forming Machine , Roof Tile Roll Former
Specifications
Brand Name :
TECHWELL
Model Number :
TW-C100
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Contact us
Payment Terms :
40% T/T in advance, 60% T/T before shipment
Supply Ability :
20 sets
Delivery Time :
55-65 working days
Packaging Details :
Standard packing
Coil material thickness :
0.18mm
Material :
G550Mpa
Rolling speed :
12m/min
Material of cutting :
Cr12Mov, with quench HRC58-62
Motor :
11kw
Material of chain :
45# forged steel with frequency quenching
Description

G550Mpa 0.18mm Galvanized Steel Horizontal Corrugation Machine, Barrel Type Corrugation Machine

1 Suitable material PPGI/GI,0.3-0.8MM
3 Coil width 1200mm/1000mm
5 Material of main frame 400H steel structure, strong and durable
6 Diameter of Soild shaft 70mm, high grade 45# steel
7 Roller High grade 45# steel, hard chromed 0.05-0.07mm
8 Thickness of middle plate 16mm
9 Forming station 16-16 rows
10 Drive type By chain(1.0 inch), link bearing model 6210
11 Power of main motor 5.5 kw, Lichao, Shanghai, with reducer
16 Material of cutting blades

Cr 12 mov, quenching 58-62℃

Description of Horizontal Type Corrugated Sheet Machine

1. Thinner Corrugated Sheet Roll Forming Machine is one special machine widely used in the African Market

2. Because in the African Market , Many Customers used the thinner thickness of the sheet (0.13mm-0.3mm thickness) if you used the normally roll forming machine , the thinner thickness of the sheet is very easy rebound ,So we manufactured the Thinner Corrugated Sheet Roll Forming Machine, The different of this thinner Corrugated Sheet Roll Forming Machine with the Normally corrugated sheet roll forming machine . The Thinner Corrugated Sheet roll forming machine is Horizontal form the sheet, the normally corrugated sheet roll forming machine is vertical formed the sheet.

3. The thinner thickness of the sheet after formed by Thinner Corrugated Sheet Roll Forming Machine are widely used for the roof sheet of the house.

Main Technical Specifications

Coil material thickness 0.18-0.35mm
Material Galvanized color steel, G550mpa
Feeding width 910mm,1000mm,1200mm, or customized
Roll forming machine 4.2 meters width, can depend on customer's requirements
Rolling speed 12-15m/min
Roller stations 6 stations
Shaft diameter 120mm
Material of cutting Cr12Mov, with quench HRC58-62
Motor 11KW
Voltage 230V, 60Hz, 3 Phase
Material of chain 45# forged steel with frequency quenching

Reference Profile Drawing

G550 Material 0.18mm Glazed Tile Roll Forming Machine , Roof Tile Roll Former

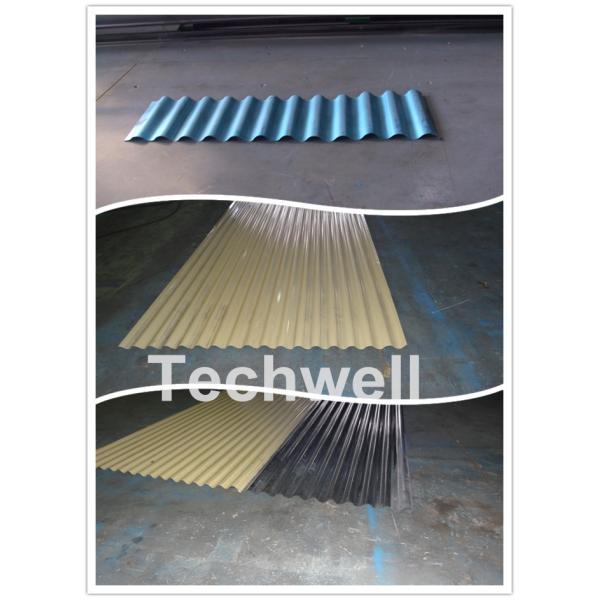

Finished Sample Sheets

G550 Material 0.18mm Glazed Tile Roll Forming Machine , Roof Tile Roll Former

Competitive Advantages

  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

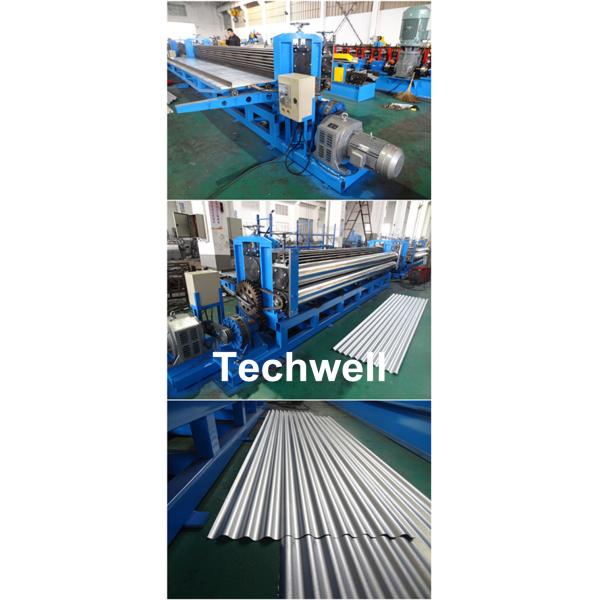

More Machine Photos

G550 Material 0.18mm Glazed Tile Roll Forming Machine , Roof Tile Roll Former
