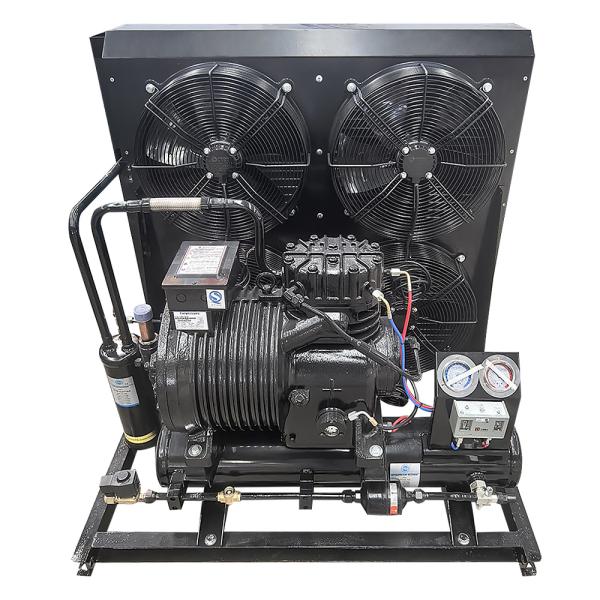

Cooling Capacity Depends On Size And Material Air Cooler Condenser With Fan motor
Cooling Capacity Depends On Size And Material Air Cooler Condenser With Fan motor
Specifications
Brand Name :
Damai
Model Number :
DM-FNH
Place Of Origin :
Zhejiang China
Certification :
ISO
MOQ :
1
Price :
$200~$100000
Packaging Details :
Wooden Case
Delivery Time :
30 Work Days
Payment Terms :
T/T
Supply Ability :
1000000pcs/year
Bracket Included :
Yes
Application :
Condenser Unit
Certifications :
ISO9001, ISO14001, CE, UL
Voltage :
220-240V/380-415V
Tube Pitch :
1.25-1.5 Times Tube Diameter
Compressor Type :
Scroll
Quality :
OEM Quality
Cooling Capacity :
Depends On Size And Material
Description

Product Description:

Air-cooled condensers are a type of radiating facility that can be matched with different cooling equipment. There are three types available, namely H, V, and W. The H type is designed for side-blowing, while the V and W types are suitable for roof-blowing.

These condensers have a reasonable structure and offer good interchangeability, which enables them to be paired with different kinds of compressors as per the specific cooling needs.

Cooling Capacity Depends On Size And Material Air Cooler Condenser With Fan motorCooling Capacity Depends On Size And Material Air Cooler Condenser With Fan motor

Parameter

Model Area Row bend several Fan Intake pipe Ømm The liquid pipe Ømm Weight kg
Number Power(W) Air volume m³/h Wind leaf diameter Ø mm Voltage(V)
FNH-0.6/2 2 2x4.5 1 16 500 200 220 10 10 4
FNH-0.9/3 3 3x45 1 16 500 200 220 10 10 43
FNH-1.2/4 4 3x5.5 1 40 800 250 220 10 10 6
FNH-1.8/6 6 3*7 1 90 1250 300 220 10 10 8
FNH-2.5/8.5 8.5 4*7 1 90 1250 300 220 10 10 10.2
FNH-3.6/12 12 4*8 1 164 1800 350 220/380 16 12 13.8
FNH-4.5/15 15 4*9 1 164 1800 350 220/380 16 12 16.5
FNH-5.4/18 18 4*10 1 216 3000 400 220/380 16 12 22
FNH-6.6/22A 22 5*10 1 216 3000 400 220/380 19 16 24
FNH 7.6/22B 22 4*8 2 2*164 2*1800 350 380 19 16 26
FNH-8.4/28 28 4*8 2 2*164 2*1800 350 380 19 16 29
FNH-9.9/33 33 4*9 2 2*216 2*3000 400 380 19 16 36
FNH-13.0/41 41 4*12 2 2*216 2*3000 400 380 19 16 40
FNH-15.0/49 49 4*14 2 2*216 2*3000 400 380 19 16 50
FNH-18.0/60 60 4*14 2 2*216 2*3000 400 380 22 16 58
FNH-21.0/70 70 4*18 4 4*164 4*1800 350 380 22 19 72
FNH-24.0/80 80 4*20 4 4*216 4*1800 400 380 25 22 81
FNH-27.0/90 90 4*20 4 4x216 4*3000 400 380 25 19 90
FNH-30.0/100 100 4x24 4 4x216 4*3000 400 380 25 19 98
FNH-36.0/120 120 4*24 4 4x216 4*3000 400 380 28 19 105
FNH-42.0/140 140 5*24 4 4x290 4*4500 450 380 28 22 128
FNH-45.0/150 150 5*24 4 4x290 4*4500 450 380 32 25 135
FNH1-54.0/180 180 6x24 4 4x449 4x6500 500 380 32 25 170
FNH-60.0/200 200 6*24 4 4x449 4x6500 500 380 32 25 190
FNH-66.0/220 220 6x25 4 4x449 4x6500 500 380 32 25 200
FNH-75.0/250 250 6x28 4 4x670 4*8500 550 380 32 25 220
FNH-90.0/300 300 6x28 4 4x670 4*8500 550 380 32 25 260

Cooling Capacity Depends On Size And Material Air Cooler Condenser With Fan motor

Applications:

Refrigeration systems require the use of condensers to function properly. These devices are critical components in maintaining the temperature control of refrigeration units, and are essential to the operation of various types of cold storage facilities.

Condensers work by removing heat energy from the refrigerant vapor and converting it back into a liquid form, which can then be reused in the cooling cycle. Without condensers, refrigeration systems would not be able to operate efficiently and effectively.

In summary, condensers are a crucial technology that is used in refrigeration machinery. They are indispensable components that ensure optimal performance and temperature control of refrigeration units, and play a significant role in the operation of cold storage facilities of all kinds.

Cooling Capacity Depends On Size And Material Air Cooler Condenser With Fan motorCooling Capacity Depends On Size And Material Air Cooler Condenser With Fan motor

Support and Services:

Cooling Capacity Depends On Size And Material Air Cooler Condenser With Fan motor

The Air Cooler Condenser is a high-quality product designed to provide efficient cooling for a wide range of applications. Our technical support team is available to assist with any questions or issues that may arise during installation or operation of the product.

We offer a range of services to ensure that your Air Cooler Condenser continues to operate at peak performance. These services include regular maintenance and cleaning, replacement parts, and repair services.

Our team of experts is highly trained and knowledgeable about the Air Cooler Condenser and can provide customized support and services to meet your specific needs. Contact us today to learn more about how we can help you get the most out of your Air Cooler Condenser.
