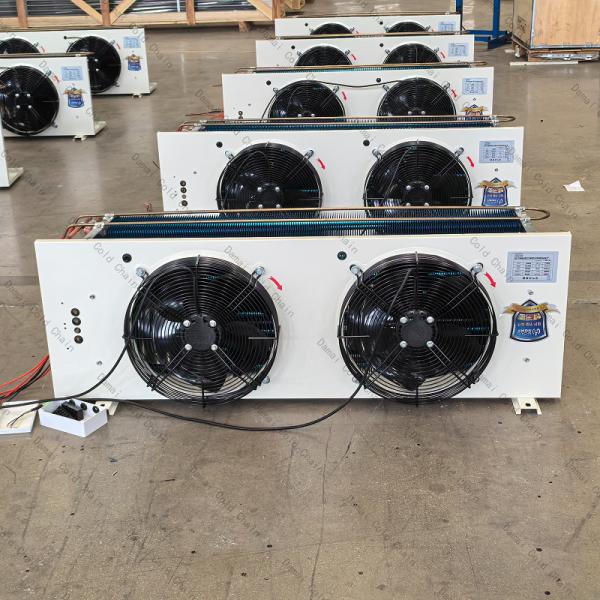

Industrial Cold Room Evaporator 4.9KW For Commercial Refrigeration
Industrial Cold Room Evaporator 4.9KW For Commercial Refrigeration
Industrial Cold Room Evaporator 4.9KW For Commercial Refrigeration
Industrial Cold Room Evaporator 4.9KW For Commercial Refrigeration
Specifications
Brand Name :
DM
Model Number :
DM-0006
Place of Origin :
China
Certification :
CE ISO
MOQ :
1
Price :
1000-100000
Packaging Details :
Customization
Delivery Time :
20day
Payment Terms :
TT L/C
Supply Ability :
300000/Year
Temperature :
High, Medium, Low Temperature
Fin Spacing :
4.5-10mm
Capcity :
4.9KW
Refrigerant :
R404A
Material Of Fin :
aluminum
Color :
paint as customers needs
Standard Power Supply :
380V-3phase-50hz
Fin Color :
black
Coil Tube :
copper
Defrosting :
electrical
Capacity :
2.4KW
Key Words :
Air Cooler
Storage :
low temperature storage
Fan :
Weiguang
Fin Surface Treatment :
Hydrophilic Coating
Name :
Cold Room Evaporator
Description

Industrial Cold Room Evaporator for Temperature Control in Commercial Refrigeration

Product Description:

Industrial Cold Room Evaporator 4.9KW For Commercial Refrigeration

Model Length(L) Width(W) Height(H) Physical size Water tube (inch) Connecting tube Φ
Weiaht
B T H L E1 E2 E3 E4 E5 F Iulet(rnm) Outlet(mm) Water Inlet(inch) (kg)
UDLS-060B 1460 611 889 510 1150 575 575 / / 130 3 16 35 2001/1/2 106
UDDS-040B 105
UDJS-030B 104
UDLS-080B 1710 669 889 560 1400 700 700 / / 130 3 16 35 2001/1/2 136
UDDS-060B 134
UDJS-040B 132
UDLS-105B 1810 719 889 610 1500 750 750 / 1 130 3 16 50 2001/1/2 153
UDDS-080B 150
UDJS-055B 147
UDLS-135B 2260 719 889 610 1950 650 650 650 1 130 3 22 50 1-1/2×2 194
UDDS-100B 190
UDJS-070B 188
UDLS-160B 2760 719 889 610 2450 817 816 817 / 130 3 22 50 1-1/2×2 227
UDDS-120B 222
UDJS-085B 217
UDLS-185B 3010 719 889 610 2700 675 675 675 675 130 3 25 50 1-1/2×2 258
UDDS-140B 255
UDJS-100B 252
UDLS-210B 2910 769 889 660 2600 650 650 650 650 130 3 25 50 1-1/2×2 274
UDDS-160B 267
UDJS-115B 260
UDLS-260B 3110 769 989 660 2800 933 934 933 / 130 4 25 50 2×2 311
UDDS-200B 302
UDJS-140B 295
UDLS-330B 3010 819 989 710 2700 675 675 675 675 130 4 25 50 2×2 348
UDDS-250B 337
UDJS-170B 330
UDLS-400B 3010 819 1086 710 2700 675 675 675 675 130 4 25 54 2×2 388
UDDS-300B 375
UDJS-210B 370
UDLS-210BT 2060 1059 1008 710 1750 875 875 / / 130 4 25 50 2 282
UDDS-160BT 275
UDJS-115BT 268
UDLS-260BT 2490 1059 1008 710 2180 1090 1090 / / 130 4 25 50 2 319
UDDS-200BT 310
UDJS-140BT 305
UDLS-330BT UDDS-250BT UDJS - 170BT 3010 1059 1008 710 2700 900 900 900 1 130 4 25 54 2×2 398
387
382
UDLS-400BT 3010 1059 1108 710 2700 900 900 900 / 130 4 25 54 2×2 424
UDDS-300BT 411
UDJS-210BT 405
UDLS-500BT 3010 1159 1108 810 2700 900 900 900 / 130 4 25 54 2×2 473
UDDS-370BT 457
UDJS-250BT 450
UDLS-600BT 3210 1159 1208 810 2900 725 725 725 725 130 4 32 67 2×2 573
UDDS-450BT 553
UDJS-300BT 543
UDLS-640BT 3410 1174 1208 810 3100 775 775 775 775 130 4 2×25 2×54 2×2 594
UDDS-480BT 574
UDJS-320BT 564
UDLS-700BT 3710 1174 1208 810 3400 850 850 850 850 130 4 2×25 2×54 2×2 629
UDDS-520BT 607
UDJS-350BT 597

Features:

The product boasts a scientific structure that enables it to perform with high efficiency and frost evenly. This not only saves power, but it also reduces running costs, making it an economical choice.

In addition, it matches well with axial fan quiet models that offer strong air flow in long shot ranges, making it power-saving with a long life cycle.

After expansion processing, it leads to perfect tightness between the pipe and fin.

The product also matches well with stainless electric heaters that have high insulating properties and defrost efficiently in a short time.

The heat exchanging coil passes a gas tightness test up to 2.6 MPa air pressure, ensuring quality and durability.

Not only that, but the product also features aluminum and painted stan board which is designed to meet your different demands, ensuring versatility in its sphere of application.

Technical Parameters:

The appropriate temperature range for different types of storage can vary based on the nature of the items being stored. When it comes to fruit ripening, it is recommended to maintain temperatures above 25°C. For processing rooms, the ideal temperature range is between 12°C to 19°C to ensure that food items can be safely processed.

If you are storing fruit, vegetables, or dry foods, it is recommended to maintain a temperature range between -5°C to +10°C. However, if you are storing medicines, cakes, pastries, or chemical materials, it is important to maintain temperatures between 0°C to -5°C to ensure they stay fresh and effective.

For ice storage rooms, the recommended temperature range is between -5°C to -10°C. If you need to store fish or meat, it is recommended to keep the temperature around -18°C to -25°C to prevent bacterial growth and ensure freshness.

If you require low-temperature storage, a deep freezer, a quick-freeze unit, or a blast freezer, the temperature range must be maintained between -25°C to -40°C. By following these guidelines, you can maintain the quality and freshness of your stored items.

Industrial Cold Room Evaporator 4.9KW For Commercial RefrigerationIndustrial Cold Room Evaporator 4.9KW For Commercial RefrigerationIndustrial Cold Room Evaporator 4.9KW For Commercial RefrigerationIndustrial Cold Room Evaporator 4.9KW For Commercial Refrigeration

Applications:

There are various types of cold storage facilities available for different purposes. For instance, a freezer room is designed specifically for freezing and storing food items such as meat, seafood, and vegetables. The blast freezer, on the other hand, is used to rapidly freeze food products to preserve their quality and freshness.

Another type of cold storage is the chiller room, which is kept at a temperature slightly above freezing point to keep perishable items such as dairy products and fresh meat fresh for a longer duration. Meanwhile, the display cold room is used to showcase frozen or chilled items in a retail environment.

Cold storage facilities are not only used in the food industry, but also in logistics. Logistics cold storage facilities are used to keep temperature-sensitive goods such as medicines and vaccines at the appropriate temperature in transit, ensuring that they arrive at their destination in good condition.

In summary, whether you need a freezer room, blast freezer, cold storage, meat cold, fruit and vegetable storage, seafood storage, display cold room, chiller room, or logistics cold storage, there is a facility designed to meet your specific needs.

Support and Services:

Industrial Cold Room Evaporator 4.9KW For Commercial Refrigeration

We offer regular training and educational materials to ensure that you and your team are equipped with the knowledge to operate and maintain your Cold Room Evaporator effectively. In addition, we provide customized solutions to meet your specific needs and requirements.

Industrial Cold Room Evaporator 4.9KW For Commercial Refrigeration

For every machine, it will be tested before shipment, and our products have undergone market inspection, ensuring absolute quality assurance.

Industrial Cold Room Evaporator 4.9KW For Commercial Refrigeration

Our commitment to quality and customer satisfaction means that we are always available to answer any questions or concerns you may have about your Cold Room Evaporator. Contact us today to learn more about our product technical support and services.

Packing and Shipping:

Product Name: Cold Room Evaporator

Product Description: This Cold Room Evaporator is designed to maintain a consistent temperature in cold rooms. It is made of high-quality materials and has a durable construction.

Packaging: The Cold Room Evaporator is carefully packaged to ensure safe delivery. It is packed in a sturdy box with foam inserts to prevent any damage during shipping.

Industrial Cold Room Evaporator 4.9KW For Commercial Refrigeration

FAQ:

Q: Where is this product manufactured?

A: This product is manufactured in China.

Q: What certifications does this product have?

A: This product is certified with CE and ISO.

Q: What is the minimum order quantity for this product?

A: The minimum order quantity for this product is 1.

Q: What are the packaging details for this product?

A: The packaging details for this product can be customized.

Q: How long is the delivery time?

A: The delivery time for this product is 20 days.

Q: What are the payment terms for this product?

A: The payment terms for this product are TT and L/C.

Q: What is the supply ability for this product?

A: The supply ability for this product is 300000 per year.

Q:Are you a manufacturer or a trader?

A:We have our own factory and we work in the factory
