4.9KW Commercial Refrigerator Evaporator Air Cooler For Optimal Cooling
4.9KW Commercial Refrigerator Evaporator Air Cooler For Optimal Cooling
4.9KW Commercial Refrigerator Evaporator Air Cooler For Optimal Cooling
4.9KW Commercial Refrigerator Evaporator Air Cooler For Optimal Cooling
Specifications
Brand Name :
DM
Model Number :
DM-0006
Place of Origin :
China
Certification :
CE ISO
MOQ :
1
Price :
1000-100000
Packaging Details :
Customization
Delivery Time :
20day
Payment Terms :
TT L/C
Supply Ability :
300000/Year
Name :
Commercial Refrigerator Evaporator Air Cooler
Operating Cycle :
Long
Cooling Type :
Counter Flow
Fan Diameter :
300-630mm
Capcity :
4.9KW
Cold Room Type :
Blast Freezer
Capacity :
2.4KW
Fin Spacing :
4.5-10mm
Air Area :
7m2 to 500m2
Air Cooler :
Yes
Tube Diameter :
9.52mm/12.7mm/15.88mm
Application :
keep fresh cold chamber
Col :
copper fin type heat exchanger
Function :
Refrigeration
Material Of Fin :
aluminum
Power Supply :
380V/50Hz/3Phase or recommend
Type :
Air Cooler
Defrost Type :
Electric Defrost/Hot Gas Defrost
Standard Power Supply :
380V-3phase-50hz
Temperature :
High, Medium, Low temperature
Fan :
Weiguang
Description

Customizable Cold Room Evaporator for Optimal Cooling in Various Industries

Product Description:

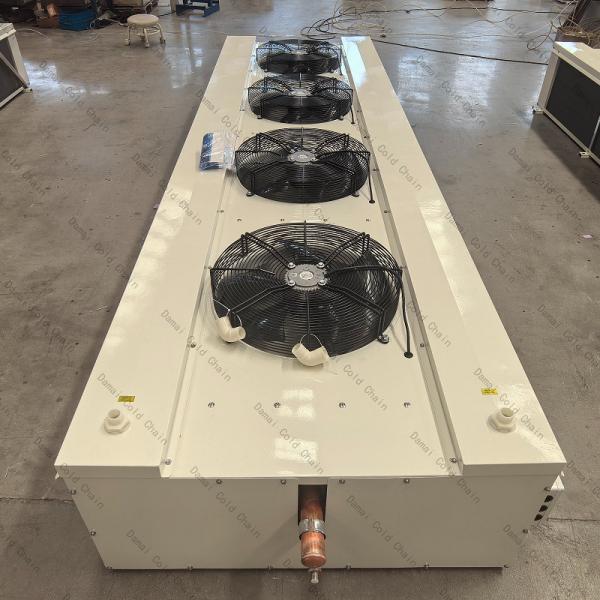

4.9KW Commercial Refrigerator Evaporator Air Cooler For Optimal Cooling
Material Selection

We offer a variety of materials to choose from when building your customized cold storage unit, including color steel plates, stainless steel plates, nano anticorrosive plates, and specific materials based on your requirements. You can also choose the customized thickness and color that you prefer.
The advantages of our cold storage solutions are numerous. They have high pressure strength, flexible combination, and are easy to install, among other benefits.

Model Length(L) Width(W) Height(H) Physical size Water tube (inch) Connecting tube Φ
Weiaht
B T H L E1 E2 E3 E4 E5 F Iulet(rnm) Outlet(mm) Water Inlet(inch) (kg)
UDLS-060B 1460 611 889 510 1150 575 575 / / 130 3 16 35 2001/1/2 106
UDDS-040B 105
UDJS-030B 104
UDLS-080B 1710 669 889 560 1400 700 700 / / 130 3 16 35 2001/1/2 136
UDDS-060B 134
UDJS-040B 132
UDLS-105B 1810 719 889 610 1500 750 750 / 1 130 3 16 50 2001/1/2 153
UDDS-080B 150
UDJS-055B 147
UDLS-135B 2260 719 889 610 1950 650 650 650 1 130 3 22 50 1-1/2×2 194
UDDS-100B 190
UDJS-070B 188
UDLS-160B 2760 719 889 610 2450 817 816 817 / 130 3 22 50 1-1/2×2 227
UDDS-120B 222
UDJS-085B 217
UDLS-185B 3010 719 889 610 2700 675 675 675 675 130 3 25 50 1-1/2×2 258
UDDS-140B 255
UDJS-100B 252
UDLS-210B 2910 769 889 660 2600 650 650 650 650 130 3 25 50 1-1/2×2 274
UDDS-160B 267
UDJS-115B 260
UDLS-260B 3110 769 989 660 2800 933 934 933 / 130 4 25 50 2×2 311
UDDS-200B 302
UDJS-140B 295
UDLS-330B 3010 819 989 710 2700 675 675 675 675 130 4 25 50 2×2 348
UDDS-250B 337
UDJS-170B 330
UDLS-400B 3010 819 1086 710 2700 675 675 675 675 130 4 25 54 2×2 388
UDDS-300B 375
UDJS-210B 370
UDLS-210BT 2060 1059 1008 710 1750 875 875 / / 130 4 25 50 2 282
UDDS-160BT 275
UDJS-115BT 268
UDLS-260BT 2490 1059 1008 710 2180 1090 1090 / / 130 4 25 50 2 319
UDDS-200BT 310
UDJS-140BT 305
UDLS-330BT UDDS-250BT UDJS - 170BT 3010 1059 1008 710 2700 900 900 900 1 130 4 25 54 2×2 398
387
382
UDLS-400BT 3010 1059 1108 710 2700 900 900 900 / 130 4 25 54 2×2 424
UDDS-300BT 411
UDJS-210BT 405
UDLS-500BT 3010 1159 1108 810 2700 900 900 900 / 130 4 25 54 2×2 473
UDDS-370BT 457
UDJS-250BT 450
UDLS-600BT 3210 1159 1208 810 2900 725 725 725 725 130 4 32 67 2×2 573
UDDS-450BT 553
UDJS-300BT 543
UDLS-640BT 3410 1174 1208 810 3100 775 775 775 775 130 4 2×25 2×54 2×2 594
UDDS-480BT 574
UDJS-320BT 564
UDLS-700BT 3710 1174 1208 810 3400 850 850 850 850 130 4 2×25 2×54 2×2 629
UDDS-520BT 607
UDJS-350BT 597

Features:

Product Features

Our product has a scientific structure, is highly efficient, frosts evenly, and saves power while also reducing running costs.
The product is also designed to match with our axial fan quiet models, which offer strong air flow in long shot rang, thereby minimizing power consumption and extending the product's lifecycle.
Additionally, our product undergoes expansion processing, which ensures perfect tightness between pipes and fins.
We also offer a stainless electric heater, which has high insulating properties and defrosts efficiently in a short period.
The heat exchanging coil passes gas tightness tests up to 2.6MPa air pressure, guaranteeing its quality and reliability.
Furthermore, our product is designed with aluminum and painted stan board, which can meet different customers' demands with customizable features and specifications.

Sphere of Application

Our product is suitable for a wide range of applications, including:

  • Industrial heating, ventilation and air conditioning (HVAC) systems
  • Commercial refrigeration and air conditioning systems
  • Residential air conditioning systems
  • Food and beverage manufacturing, storage, and transportation
  • Pharmaceutical manufacturing and storage facilities
  • Chemical processing plants
  • Greenhouses and indoor farming facilities

Applications:

There are several different types of cold storage facilities available for various purposes. These include freezer rooms, blast freezers, and chiller rooms. These facilities are designed to maintain a low temperature and create a controlled environment for the storage of perishable goods.
Meat cold storage facilities are specifically designed to store and preserve meat products. Fruit and vegetable storage facilities are designed to keep produce fresh and prevent spoilage. Seafood storage facilities are also available for the storage of fish and other seafood products.
In addition to these facilities, there are also display cold rooms that are used to showcase perishable goods such as meat, seafood, and produce. These rooms are often used in supermarkets and other retail environments.
Finally, logistics cold storage facilities are available for the transport and storage of goods during the supply chain process. These facilities are used to ensure that products are kept at the appropriate temperature throughout the entire journey from production to consumption.

4.9KW Commercial Refrigerator Evaporator Air Cooler For Optimal Cooling4.9KW Commercial Refrigerator Evaporator Air Cooler For Optimal Cooling4.9KW Commercial Refrigerator Evaporator Air Cooler For Optimal Cooling4.9KW Commercial Refrigerator Evaporator Air Cooler For Optimal Cooling

Customization:

Our Product Customization Services ensure that we meet the specific requirements of our customers. We can customize the Industrial Evaporator to suit your needs. We offer Evaporation Air Cooler for this product to improve its cooling efficiency. Contact us to know more about our customization services.

Support and Services:

The Cold Room Evaporator product technical support and services include:

  • Installation guidance and assistance
  • Product troubleshooting and diagnosis
  • Repair and maintenance services
  • Replacement part sourcing and ordering
  • Technical documentation and manuals
  • Training and education on product operation and maintenance

Packing and Shipping:

Product Packaging:

  • The Cold Room Evaporator product will be packaged in a sturdy cardboard box to ensure safe transportation.
  • The product will be wrapped in bubble wrap to provide extra protection during shipping.
  • All necessary installation accessories and manuals will be included in the package.

Shipping Information:

  • The product will be shipped within 1-2 business days of receiving the order.
  • We offer free standard shipping within the United States.
  • Expedited shipping options are available at an additional cost.
  • We ship internationally, but additional shipping fees may apply.
  • Please allow 5-7 business days for delivery within the United States and up to 14 business days for international delivery.
  • A tracking number will be provided once the product has shipped.
4.9KW Commercial Refrigerator Evaporator Air Cooler For Optimal Cooling4.9KW Commercial Refrigerator Evaporator Air Cooler For Optimal Cooling4.9KW Commercial Refrigerator Evaporator Air Cooler For Optimal Cooling4.9KW Commercial Refrigerator Evaporator Air Cooler For Optimal Cooling

FAQ:

Where is this Cold Room Evaporator manufactured?
This Cold Room Evaporator is manufactured in China.
Does this Cold Room Evaporator have any certifications?
Yes, this Cold Room Evaporator is certified with CE ISO.
What is the minimum order quantity for this Cold Room Evaporator?
The minimum order quantity for this Cold Room Evaporator is 1.
What is the price range of this Cold Room Evaporator?
The price range of this Cold Room Evaporator is between 1000-100000.
How is this Cold Room Evaporator packaged for delivery?
The packaging details for this Cold Room Evaporator are customizable.
What is the delivery time for this Cold Room Evaporator?
The delivery time for this Cold Room Evaporator is 20 days.
What are the payment terms for this Cold Room Evaporator?
The payment terms for this Cold Room Evaporator are TT and L/C.
