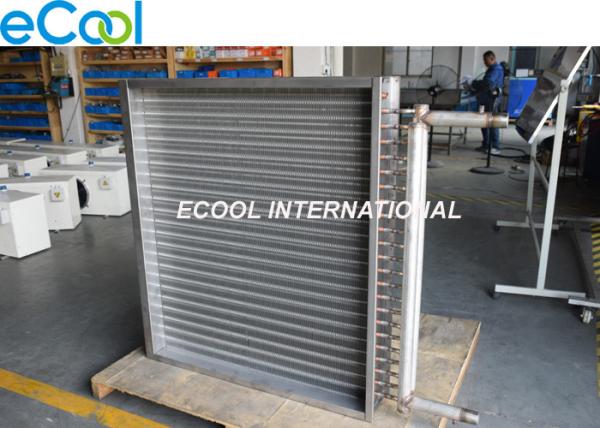

2.7m Max Width Fin And Tube Heat Exchanger High Corrosion Resistance
2.7m Max Width Fin And Tube Heat Exchanger High Corrosion Resistance
2.7m Max Width Fin And Tube Heat Exchanger High Corrosion Resistance
2.7m Max Width Fin And Tube Heat Exchanger High Corrosion Resistance
Specifications
Brand Name :
Ecool
Model Number :
EHX06
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 sets/time
Delivery Time :
2-3 weeks
Packaging Details :
suitable for sea shipment in container
Name: :
Fin and Tube Heat Exchanger For Waste Gas Treatment Surface Air cooler
Size and capacity :
customized
Coil Materials :
Cu/Al/SS304/SS316/Ta
Anti-corrosion choices: :
heresite, Blygold, Epxoy, Pre-coated Epxoy
Max. length :
12m
Max. width :
2.7m
Description

Fin and Tube Heat Exchanger For Waste Gas Treatment Surface Air cooler

1. Heat exchanger Products Advantages

  • Max. 12 meter in length and 2.7meter in width for custom heat exchangers
  • Heat exchanger has been applied in VOC gas recovery such as paper mill
  • One set of customized tailered heat exchanger is avaibale
  • Design software is Italian brand which could eusure the accurate of heat exchanger.
  • Heat exchangers are also suit for special coolant such as CO2 or secondary refrigerant.

2. Steps of delivery Heat Exchanger

  • First stage---Help clients to design and select models, reasonably control cost and offer price to increase client’s bidding rate

  • Confirm stage---Provide accurate design drawing for the confirmation of user, fix the cost to avoid temporary changes

  • Production stage---produce according to the confirmed plan and ensure delivery accurately and quickly

3.Delivery Contents

  • CAD drawings for confirmation and review

  • Heat exchangers

  • Completed and details data of heat exchangers

If customer donsn't have a drawing of tube and fin heat exchanger , you could provide the basic data as following form, and we will make the design.

Form of information needed for heat exchanger

Customer provide data 　 　 　 　
Capacity KW 　
Coolant Water other %
Glycol % Propylene glycol %
Liquid Inlet temerature(DB) C 　
Liquid Outlet temperature(DB) C
Flow M3/h
Air flow/Face Velocity M3/h m/s
Air Inlet temperature(DB) C
Air Inlet temperature(WB)/
relative humidity		 C/%
Outlet air temperature C 　
Frame dimension mm L W H

4. Materials selections of heat exchanger

​

Available materials 　 　 　 　
Heat exchange tube Material
Options		 Cu 　 　
SS304 　 　
33316L 　 　
Cu Ni 　 　
Ta 　 　
Fins Al Hydrophilic 　
Cu Exposy 　
SS 304 Blygold 　
SS316L Heresite 　
Ta 　 　
Frame DC51D+Z Galvanized steel 　
Al 　 　
SS304 　 　
SS316L 　 　
Cu 　 　
Head pipe Cu 　 　
Steel 　 　
SS304 　 　
SS316L 　 　
Cu Ni 　 　
Ta 　 　

2.7m Max Width Fin And Tube Heat Exchanger High Corrosion Resistance
