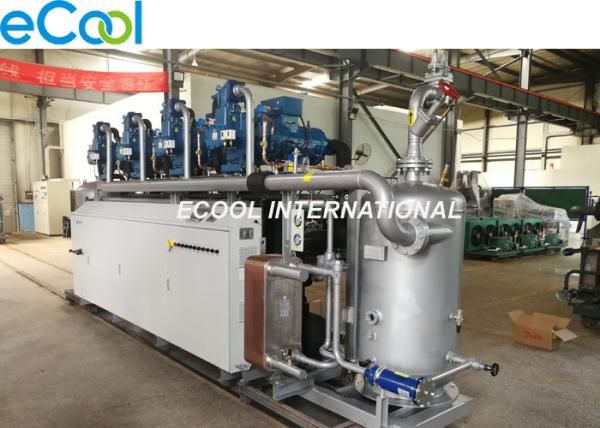

Frozen Cold Storage Refrigeration Compressor Unit / Rack EPFSL4-60 Low Noise
Frozen Cold Storage Refrigeration Compressor Unit / Rack EPFSL4-60 Low Noise
Specifications
Brand Name :
ECOOL
Model Number :
EPFSL4-60
Certification :
ISO9001; CCC;QS
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Supply Ability :
500sets per year
Delivery Time :
3-4 weeks
Packaging Details :
wooden case or carton plus wooden tray
Compressor Brand :
Fusheng
Compressor type :
Screw
Evaporating Temperature :
-40C~-23C
Condensing Temperature :
35C ~45C
Refrigeration Capacity :
149kw~350Kw
Warranty :
1Year
Noise :
Low
Name :
Frozen Cold Storage Refrigeration Compressor Rack Unit EPFSL4-60
Description

Frozen Cold Storage Refrigeration Compressor Unit / Rack EPFSL4-60 Low Noise

Compressor rack Specifications

Model Condensing Temp. Cooling capacity(KW) under diff. Evaporating temp. Compressor motor power Receiver size connection pipe size(customized available) Dimension Operating weight
-23 -30 -40 Suction pipe Supply pipe
　 C (kw) (L) (mm) (mm) (L×W×H)mm (kg)
EPFSL4-60 35 350.8

263.6

 164.8 180 250 2*108 54 4500*1325*1900 3030
45 326.8 244 149.6

Compressor rack Configuration:

Four 60HP screw type compressors;

suction line filter;

liquid supply line filer;

PLC touch screen unit controoler and electric cabinet;

oil separator;

oil cooler;

high and low-pressure controller;

injection components;

liquid receiver;

gauge panel;

screw compressor;

economizer

Compresor rack Application

  • -15C ~-25C cold storage refrigeration machine
  • Refrigeration source for quick freezer system such as tunnel freezer, channel freezer, spiral freezer.

Wide Range of Options of Other Models

Compressor Unit Refrigeration Capacity Evaporating temperature
Piston type single-stage parallel unit 20HP~350HP 7.5℃~-45℃
Piston type Two-stage parallel unit 16HP~180HP -25℃~-65℃
Screw type single stage parallel unit 80HP~600HP 5℃~-45℃
Screw type double-stage parallel unit 100HP~600HP -30℃~-65℃


ECOOL Compressor rack Advantages

Our systems are built with advanced manufacturing processes that ensure the highest quality, and a three-step leak testing process that includes a highly sensitive helium leak test to ensure that there are absolutely no leaks.

We start with the highest quality components, each fully tested to meet stringent reliability and refrigeration performance standards.

With our optimized design, our compressor rack systems provide excellent reliability and performance for all refrigeration applications.

Our compressors have been designed with the latest technology for quieter operation, lower vibration and excellent energy efficiency. Superior design features result in built in quality and reliability.

Compressor rack model code

Frozen Cold Storage Refrigeration Compressor Unit / Rack EPFSL4-60 Low Noise
