Eccentric Hook Cold Storage Panels Stainless Steel Thermal Insulation Polyurethane
Eccentric Hook Cold Storage Panels Stainless Steel Thermal Insulation Polyurethane
Eccentric Hook Cold Storage Panels Stainless Steel Thermal Insulation Polyurethane
Eccentric Hook Cold Storage Panels Stainless Steel Thermal Insulation Polyurethane
Specifications
Brand Name :
Ecool
Model Number :
EP004
Certification :
ISO9001,CCC,
Place of Origin :
China
MOQ :
100 square meters
Price :
Negotiable
Supply Ability :
10000 square meter/year
Delivery Time :
3-4 Working weeks
Packaging Details :
Standard Export Package
Name :
Eccentric Hook Cold Storage Panels Stainless Steel Thermal Insulation Polyurethane
Warranty :
1Year
Application :
Thermal insulation for cold storage
Package :
Standard Export Package
Thickness :
50、75、100、120、150、180、200、250 mm
Trade Term :
CNF,FOB,CIF,CIP,EXWORK
Payment Term :
T/T
Panel material :
Polyurethane foam
Description

Eccentric Hook Cold Storage Panels Stainless Steel Thermal Insulation Polyurethane

Low thermal conductivity and water absorption coefficient, good performance in insulation, compressive and tensile strength, hard to deform.

Feature:
The structure of the eccentric hook board is a polyurethane sandwich panel made with traditional molds,which is embedded the eccentric hook in the mould around the sandwich board when produce,convenient assembly,and generally applicable to small or medium-sized cold storage.

Application:

Wall panel and ceiling panel Thermal insulation for cold storage
Core thickness options: 50,75,100,120,150,180,200,250mm

Panel information:

Type Polyurethane Sandwich Panels
Panel Material Color steel sheet,stainless steel sheet,or emboseed aluminum sheet,galvanized steel sheet,polyurethane sheet.
Place of Origin China
Length Customize
Effective Width 1120mm
Core thickness 50mm,75mm,100mm,120mm,150mm,180mm,200mm,250mm
Features Soundproof, fireproof, waterproof
Certificates SGS, ISO14001, ISO9001,
Color White, Gray, Sliver, Whit gray...etc,as required
Lifetime 10-30 years
Fire proof rate B1,B2
Usage In different fields: Food storage, Lab center, Medicine factory,Logistics Center, Cold Drinks Processing Center …ect


Specifications:

The Technical Standard of Eccentric hook panel
No. Item Unit Tel. requirement
1 Density KG/M3 40±2
2 Heat conductivity W/m.k <=0.024
3 Compressive strength >=150 >=150
4 Combustion performance Average burning time S <=90
Average burning range mm <=50
5 The bond strength between sandwich core layer and panel Mpa >0.1
6 Stripping performance The core material on the surface - uniform distribution
The adhesive area of each stripping surface - >=90%


Cold room panel, size, and temperature:

Thickness Suitable temperature
50 ≥ 15°C
75 ≥ 10ºC
100 ≥ -15ºC
150 ≥ -25ºC
200 ≥ -35ºC
250 ≥ -45ºC

The technical standard of eccentric hook board

No Surface material Thickness Surface streak

50
mm

75
mm

100
mm

120
mm

150
mm

175
mm

200
mm

250
mm

 Flat Ribs grain Finely laminated
1 Colored steel sheet(0.326-0.8mm) √ √ √ √ √ √ √ √ √ √ √
2 Stainless steel sheet(0.4-0.8mm) √ √ √ √ √ √ √ √ √ √ √
3 Embossed aluminium sheet(0.5-3mm) √ √ √ √ √ √ √ √
4 Galvanized steel sheet (0.5-2mm) √ √ √ √ √ √ √ √ √
5 Polyurethane sheet √ √ √ √ √ √ √ √



FAQ:
contact service@ecool.cn.com

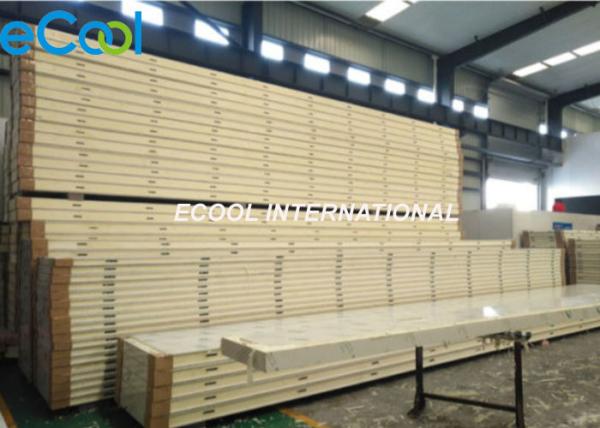

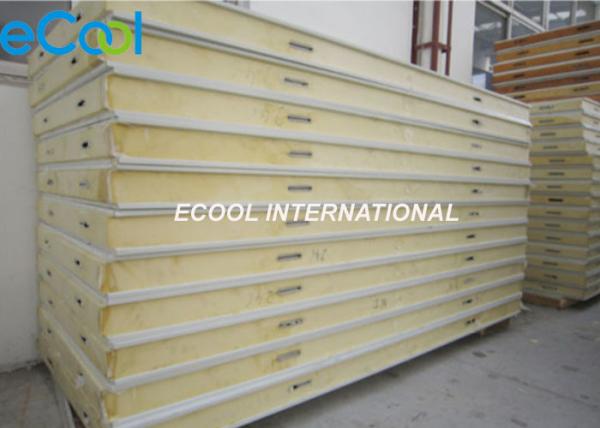

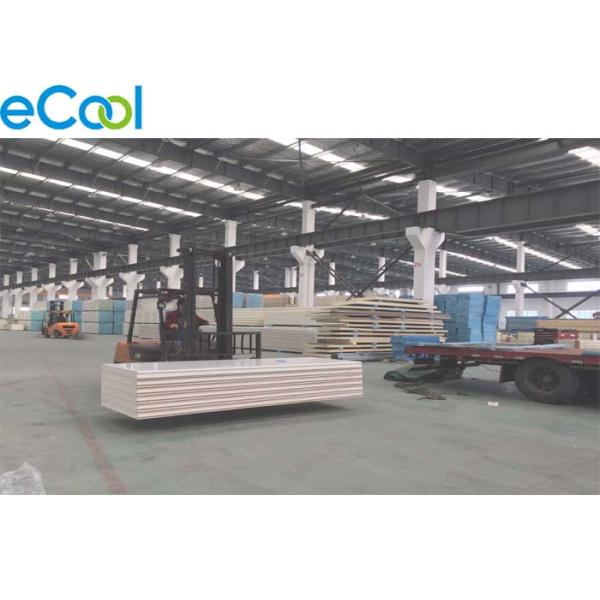

Our Pu panel &Factory
Eccentric Hook Cold Storage Panels Stainless Steel Thermal Insulation Polyurethane
