PIR Sandwich Cold Storage Insulation Board Customized Length 150mm Thick
PIR Sandwich Cold Storage Insulation Board Customized Length 150mm Thick
PIR Sandwich Cold Storage Insulation Board Customized Length 150mm Thick
PIR Sandwich Cold Storage Insulation Board Customized Length 150mm Thick
Specifications
Brand Name :
Ecool
Model Number :
EP007
Certification :
ISO9001,CCC,
Place of Origin :
China
MOQ :
1000 square meters
Price :
Negotiable
Supply Ability :
15000000 square meter/year
Delivery Time :
3-4 Working weeks
Packaging Details :
Standard Export Package
Core Material :
polyisocyanurate
Warranty :
1Year
Package :
films on both size
Foam density :
45Kg/M3
Firefighting level :
B1
Production method :
machine
Description

150mm Thick PIR Sandwich Insulation Board Customized Length PIGG surface

PIR polyisocyanuric acid foam is a foaming material made from isocyanate after catalytic reaction with polyether, and its physical fire resistance is better than that of ordinary polyurethane foam material.
1. The fire protection grade meets the B1 level of the national standard.
2. Temperature range: - 196 ~160;
3. Excellent dimensional stability.
4. Free cutting of pipes and plates can be carried out according to customer's requirements.

The technical standard of PIR board

No Item Unit Tech requirement
1 density Kg/㎡ 45±2
2 Heat conductivity W/m.k ≤ 0.022
3 Compressive strength Kpa ≥160
4 Combustion performance -- B1 grade
5 The bond strength between sandwich core layer and panel Mpa >0.1
6 Stripping performance The core material on the surface -- Uniform distribution
The adhesive area of each stripping surface -- ≥90%

Application:

Cold storage , cold room ceiling and wall panel

Warehouse building materials

Clean room

other core thickness options: 50,75,100,120,150,180,200,250mm

Panel information:

Type Polyisocyanate Sandwich Panels
Protective surface Material Color steel sheet,stainless steel sheet,or other.
Place of Origin China
Length Max. 16m
Effective Width 1140mm
Core thickness 50mm,75mm,100mm,120mm,150mm,180mm,200mm,250mm
Features Soundproof, fireproof, waterproof
Certificates SGS, ISO14001, ISO9001,
Color Whit grey
Lifetime 10-30 years
Fire proof rate B1,B2
Usage In different fields: Food storage, Lab center, Medicine factory,Logistics Center, Cold Drinks Processing Center …ect


Cold room panel, size, and temperature:

Thickness Suitable temperature
50 ≥ 15°C
75 ≥ 10ºC
100 ≥ -15ºC
150 ≥ -25ºC
200 ≥ -35ºC
250 ≥ -45ºC

Our Advantages

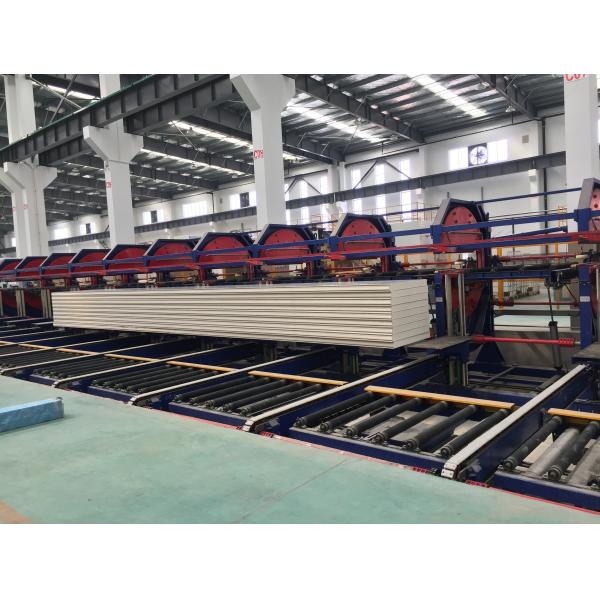

Our polyurethane insulation board is introduced into the world's leading mature process water (fluorine-free) foaming technology. Introduced the world's leading polyurethane foaming equipment from OMS, a fully automatic continuous sheet production line; high-end polyurethane (PIR) insulation board with high quality, good flame retardant and green environmental protection, which has superior performance, stable quality and wide application.
