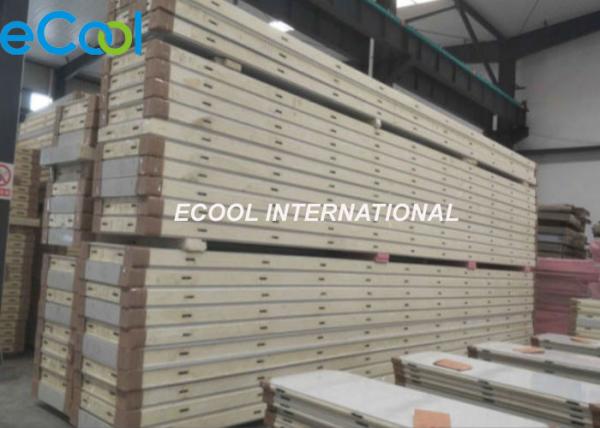

Insulated Freezer Panels With Installation Hook Suitable for Small and Middle Cold Room
Insulated Freezer Panels With Installation Hook Suitable for Small and Middle Cold Room
Insulated Freezer Panels With Installation Hook Suitable for Small and Middle Cold Room
Insulated Freezer Panels With Installation Hook Suitable for Small and Middle Cold Room
Specifications
Brand Name :
Ecool
Model Number :
EP009
Certification :
ISO9001,CCC,
Place of Origin :
China
MOQ :
100 square meters
Price :
Negotiable
Supply Ability :
10000 square meter/year
Delivery Time :
3-4 Working weeks
Packaging Details :
Standard Export Package
Key word :
Insulated Freezer Panels With Installation Hook
Cor thickness :
50、75、100、120、150、180、200、250 mm
Surface :
PPGI, stainless steel, aluminum
Surface type :
with or without wave
suiface thickness :
0.4~0.8mm
Max. length :
10 meter
Description

Insulated Freezer Panels With Installation Hook Suitable for Small and Middle Cold Room


Feature

  • Strong and Lightweight: insulated freezer panels are incredibly strong, lightweight and easy-to-install, allowing for longer spans and lower installation costs. In fact, cold storage insulated panels, fabricated from steel, are so strong and durable that we are able to reinforce and strengthen a metal building system’s structure.
  • Ease of Installation: cold storage insulated panels are easy to install, using a simple "Embedded hook" joint. Our freezer panels simply slide into place and are easily secured to the building's steel superstructure, allowing us to construct metal building systems much faster than general construction times, saving you time and money.
  • Variety of Dimensions: Our advanced freezer panels are made to order, in a variety of thicknesses between 50mm and 250mm. we continuous laminating line can manufacture panels in any desired length and to each job’s specific tolerance needs, with lengths up to 10 meter, allowing us to meet the most demanding project requirements

Application

besides cold room, our panel could be used for


Panel information

Type Polyurethane Sandwich Panels
Panel Material Color steel sheet,stainless steel sheet,or emboseed aluminum sheet,galvanized steel sheet,polyurethane sheet.
Place of Origin China
Length Customize
Effective Width 960mm
Core thickness 50mm,75mm,100mm,120mm,150mm,180mm,200mm,250mm
Features Soundproof, fireproof, waterproof
Certificates SGS, ISO14001, ISO9001,
Color White, Gray, Sliver, Whit gray...etc,as required
Lifetime 10-30 years
Fire proof rate B2


Technical Specifications

The Technical Standard of Eccentric hook panel
No. Item Unit Tel. requirement
1 Density KG/M3 40±2
2 Heat conductivity W/m.k <=0.024
3 Compressive strength >=150 >=150
4 Combustion performance Average burning time S <=90
Average burning range mm <=50
5 The bond strength between sandwich core layer and panel Mpa >0.1
6 Stripping performance The core material on the surface - uniform distribution
The adhesive area of each stripping surface - >=90%


Choose the right thickness for your building

Thickness Suitable indoor temperature
50 ≥ 15°C
75 ≥ 10ºC
100 ≥ -5ºC
150 ≥ -20ºC
200 ≥ -25ºC
250 ≥ -35ºC

Different surface materials' available thickness of panel

No Surface material Thickness Surface streak

50
mm

75
mm

100
mm

120
mm

150
mm

175
mm

200
mm

250
mm

 Flat Ribs grain Finely laminated
1 Colored steel sheet(0.326-0.8mm) √ √ √ √ √ √ √ √ √ √ √
2 Stainless steel sheet(0.4-0.8mm) √ √ √ √ √ √ √ √ √ √ √
3 Embossed aluminium sheet(0.5-3mm) √ √ √ √ √ √ √ √
4 Galvanized steel sheet (0.5-2mm) √ √ √ √ √ √ √ √ √
5 Polyurethane sheet √ √ √ √ √ √ √ √
