Custom VOC Condenser / Fin And Tube Heat Exchanger for Waste Gas Treatment
Custom VOC Condenser / Fin And Tube Heat Exchanger for Waste Gas Treatment
Custom VOC Condenser / Fin And Tube Heat Exchanger for Waste Gas Treatment
Custom VOC Condenser / Fin And Tube Heat Exchanger for Waste Gas Treatment
Specifications
Brand Name :
Ecool
Model Number :
EHX11
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 sets/time
Delivery Time :
2-3 weeks
Packaging Details :
suitable for sea shipment in container
Name: :
Custom VOC Condenser / Fin And Tube Heat Exchanger for Waste Gas Treatment
Size and capacity :
customized
Coil Materials :
anti-corrossion SS304/SS316/ Cu/Al/Ta etc.
Anti-corrosion :
heresite, Blygold, Epxoy, Pre-coated Epxoy
Max. length :
12m
Max. width :
2.7m
Description

Custom VOC Condenser / Fin And Tube Heat Exchanger for Waste Gas Treatment

1.Product Description

  • Finned tube heat exchanger is a kind of heat exchange equipment most widely used in gas and liquid. To achieve the purpose of strengthening heat transfer, the fins with horizontal and vertical are added in the surface of base tube. Although there are many forms of physical structure, the basic structure is made up of parallel plate and assembled plate bundle consist of various forms of fins. It is generally made of aluminum alloy.

    for VOC condenser, the material is usually stainless stell to prevent from chemical reaction.


    Application:
    Finned tube heat exchanger is applied and equipped with fins on one side to increase the heat transfer area, improve the degree of turbulence in the fluid and the convection heat transfer coefficient when two fluid convection heat transfer coefficient has large difference.
    Other chioce of material:Copper;Aluminum;Carbon steel;Tai etc.

2. An Customized cooling coil Order example

1) clients inquiry for cooling coil for gas cooling in Brewing

2) Clients provide basis information such as

Capacity KW 　
Coolant Water other %
Glycol % Propylene glycol %
Liquid Inlet temerature(DB) C 　
Liquid Outlet temperature(DB) C
Flow M3/h
Air flow/Face Velocity M3/h m/s
Air Inlet temperature(DB) C
Air Inlet temperature(WB)/
relative humidity		 C/%
Outlet air temperature C 　

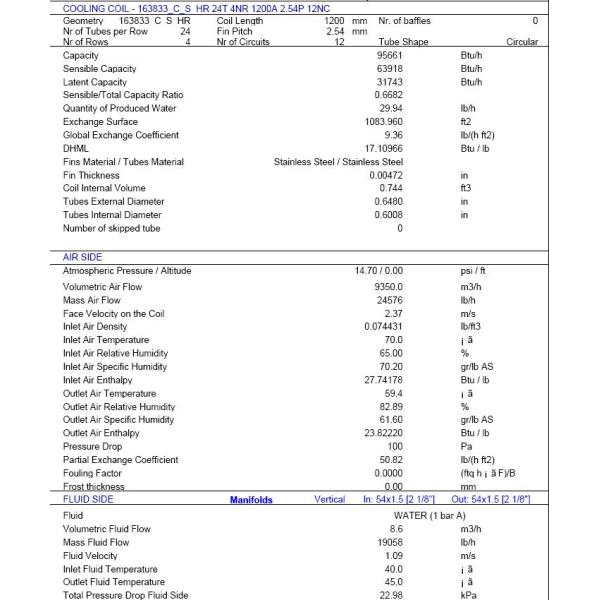

3) we give data and design as following

Custom VOC Condenser / Fin And Tube Heat Exchanger for Waste Gas Treatment

​

Custom VOC Condenser / Fin And Tube Heat Exchanger for Waste Gas Treatment

4) Clients agree with data and design/client give opnions on design and we redo the above

5) Confirmed and quotation

6) confrim order and production

7) delivery products and all design data

3.Delivery Contents

  • Completed and details data

  • CAD drawings for confirmation and review

  • Products
