Multi Functional Freezer Condensing Unit For Frozen Cold Storage Room
Multi Functional Freezer Condensing Unit For Frozen Cold Storage Room
Specifications
Brand Name :
ECOOL
Model Number :
ECBC-5A
Certification :
ISO9001; CCC;QS
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Supply Ability :
1000sets per year
Delivery Time :
3-4 weeks
Packaging Details :
wooden case or carton plus wooden tray
Name :
Freezer Condensing Unit
Compressor type: :
Piston
Evaporating Temperature :
-35C~-45C
Condensing Temperature :
40C ~45C
Compressor motor :
3.75Kw
Refrigerant: :
Freon R22/R134a/R404a/R507a
Warranty :
1Year
Feature :
Multi Functional
Description

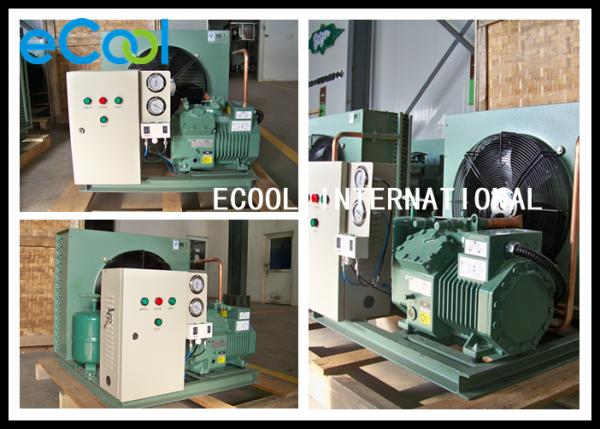

Multi Functional Freezer Condensing Unit For Frozen Cold Storage Room

Freezer Condensing Unit Application

Frozen Cold Storage Room , small and middle sized cold room or refrigeration system

Freezer Condensing Unit Specifications

Model Condensing
Temp.		 Cooling capacity (KW)
under diff. Evaporating temp.		 Compressor
motor		 Air-cooled Condenser Connection pipe size Overall Dimension Operating
weight
-35 -40 -45 Air flow motor power Suction Supply L×W×H
℃ ℃ ℃ ℃ Kw M3/h W mm mm mm Kg
ECBC-5A 40 5.2 4.1 3.2 3.75 4840×1 230×1 28 22 1300×1000×800 251
45 5.1 4.0 3.1


ECOOL Compressor Unit Advantages

Compact & Nimble Structure

Components such as compressor, reservoir, gas-liquid separator, oil separator, economizer,intake manifold, fluid supply manifold, electrical control equipment are all centralized, making sure every inch of the space is fully used.The unit has a compact structure, the space saved during assembly can provide more space for commercial use, benefiting the end user with extra profit.

Easy operation & convenience

With PLC safety auto control, client can program with touch screen, the graphical control interface can intently show the running status, recording data, parameter settings and false alarming, easy for operation.The reserved remote communication interface can help customer to monitor remotely.

Thanks to the print output interface, customer can print the running history data of the unit and
the system.
