100mm Cool Room Wall Panels , Thermal Insulation Polyurethane Cold Room Panels
100mm Cool Room Wall Panels , Thermal Insulation Polyurethane Cold Room Panels
Specifications
Brand Name :
Ecool
Model Number :
ECD006
Certification :
ISO9001,CCC,
Place of Origin :
China
MOQ :
5pices
Price :
Negotiable
Supply Ability :
8000sets/year
Delivery Time :
3-4 Working weeks
Packaging Details :
Standard Export Package
Raw Material :
Polyurethane Cold Room Panels
Warranty :
1Year
Application :
Thermal Insulation for Food
Package :
Standard Export Package
Thickness :
100mm
Name :
Cool Room Wall Panels
Trade term :
FOB,CIF,CNF,CIP,EXWORK
Shipping way :
by sea,by truck,by railway
Panel surface Type :
Colored steel,double side stainless steel,single side stainless steel sheet
Description

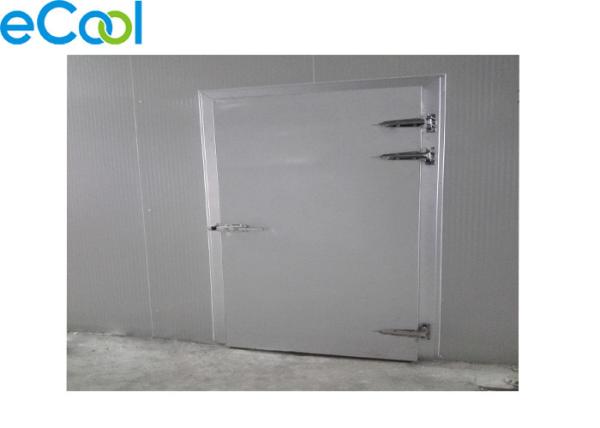

100mm Cool Room Wall Panels , Thermal Insulation Polyurethane Cold Room Panels

Cool Room Wall Panels Feature:

By adopting adjustable single spring hinge,it is convenient in adjustment and long in service lifetime with appearance that complies with traditional aesthetical standard

Cool Room Wall Panels Application:

Cold Storage Room

Cool Room Wall Panels information:

Type Polyurethane Cold Room Panels
Panel Material Color steel sheet,stainless steel sheet,or other.
Place of Origin China
Height range 1800-2200mm
Width range 1400-1800mm
Door thickness 100mm,120mm,200mm
Features Soundproof, fireproof, waterproof
Certificates SGS, ISO14001, ISO9001,
Color White, Gray, Sliver, Whit gray...etc,as required
Lifetime 10-30 years
Usage In different fields: Food storage, Lab center, Medicine factory,Logistics Center, Cold Drinks Processing Center …ect


Polyurethane Cold Room Panels​ Specifications:

The Technical Standard of Eccentric hook panel
No. Item Unit Tel. requirement
1 Density KG/M3 40±2
2 Heat conductivity W/m.k <=0.024
3 Compressive strength >=150 >=150
4 Combustion performance Average burning time S <=90
Average burning range mm <=50
5 The bond strength between sandwich core layer and panel Mpa >0.1
6 Stripping performance The core material on the surface - uniform distribution
The adhesive area of each stripping surface - >=90%


Cold room PU panel door , size, and suitable temperature:

Thickness Suitable temperature
100
≥ -15ºC
150 ≥ -25ºC
200 ≥ -35ºC


FAQ:

1. Manufacture
For this model, we have 5 production lines with 5,000 m2 capacity per day.
2. Quality Control
Measurement test , Thickness test
Tips: The third party inspection is also acceptable (SGS,BV, etc.)
3. Packing & Loading

Where are our projects?

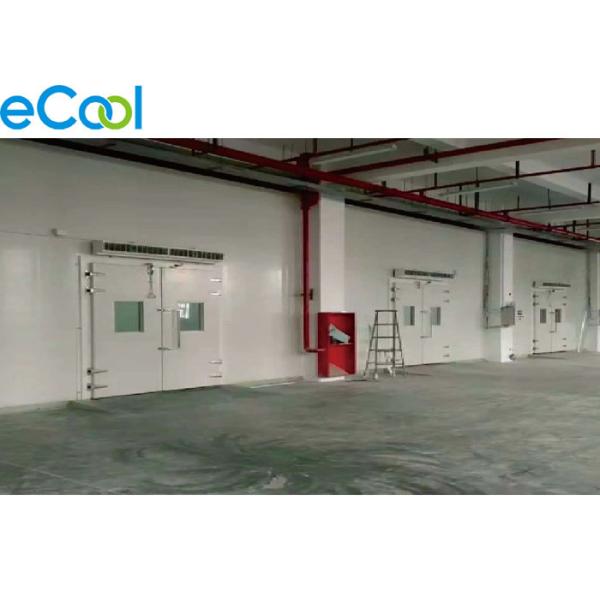

We have many projects in different fields. Food storage, Lab center, Medicine factory, Logistics Center, Cold Drinks Processing Center …ect

Warmly welcome to contact us if you have any interests in these panels!

Our Cool Room Wall Panels

100mm Cool Room Wall Panels , Thermal Insulation Polyurethane Cold Room Panels
