Fireproof Cold Storage Sandwich Panel / Walk In Cooler Wall Panels -15ºC
Fireproof Cold Storage Sandwich Panel / Walk In Cooler Wall Panels -15ºC
Specifications
Brand Name :
Ecool
Model Number :
ECD003
Certification :
ISO9001,CCC,
Place of Origin :
China
MOQ :
5pices
Price :
Negotiable
Supply Ability :
8000sets/year
Delivery Time :
3-4 Working weeks
Packaging Details :
Standard Export Package
Name :
Stainless Steel PU Panel AH Semi Embedded Door for Cold storage
Temparature :
-15ºC
Application :
Thermal Insulation for Food
Package :
Standard Export Package
Thickness :
100mm
Trade term :
FOB,CIF,CNF,CIP,EXWORK
Shipping way :
by sea,by truck,by railway
Panel surface Type :
Colored steel,double side stainless steel,single side stainless steel
Description

Fire Proof Cold Storage Sandwich Panel / Walk In Cooler Wall Panels -15ºC

the temperature requirements of the cold storage, according to the thickness of the cold storage board insulation:

a. 150mm library board: the thickness of the sky floor is 150mm

The thickness of the vertical plate is 160mm, 100mm

Suitable for insulation conditions from -25 ° C to -45 ° C

b. 100mm library board: the floor thickness is 100mm

Cold Storage Sandwich Panel Application:

Thermal Insulation for Food

Cold Storage Sandwich Panel information:

Type Fireproof Cold Storage Sandwich Panel / Walk In Cooler Wall Panels -15ºC
Panel Material Color steel sheet,stainless steel sheet,or other.
Place of Origin China
Height range 1800mm-customize
Width range 800-1800mm
Door thickness 100mm,120mm,200mm
Features Soundproof, fireproof, waterproof
Certificates SGS, ISO14001, ISO9001,
Color White, Gray, Sliver, Whit gray...etc,as required
Lifetime 10-30 years
Fire proof rate B1,B2
Usage In different fields: Food storage, Lab center, Medicine factory,Logistics Center, Cold Drinks Processing Center …ect


Specifications:

The Technical Standard of Eccentric hook panel
No. Item Unit Tel. requirement
1 Density KG/M3 40±2
2 Heat conductivity W/m.k <=0.024
3 Compressive strength >=150 >=150
4 Combustion performance Average burning time S <=90
Average burning range mm <=50
5 The bond strength between sandwich core layer and panel Mpa >0.1
6 Stripping performance The core material on the surface - uniform distribution
The adhesive area of each stripping surface - >=90%


Cold room PU panel door , size, and suitable temperature:

Thickness Suitable temperature
100
≥ -15ºC
150 ≥ -25ºC
200 ≥ -35ºC

ECOOL INTERNATIONAL (SHANGHAI) is a technology and engineering company focusing on refrigeration industry.

It specializes in providing cold storage projects, including project plan, design, sales, installation and maintenance；meanwhile, providing high-quality refrigeration equipment, such as multi-head compressor rack, variable frequency screw type compressor rack, air cooler, insulation panel, and refrigeration controlling system.

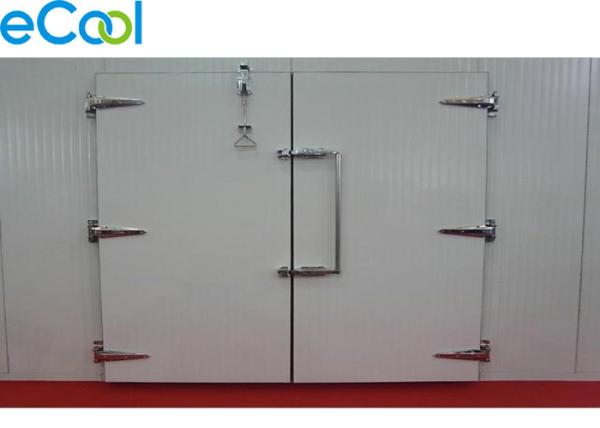

Our cold room doors

Fireproof Cold Storage Sandwich Panel / Walk In Cooler Wall Panels -15ºC
