Specifications
Brand Name :
CHN spec
Model Number :
Color Matching
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 per month
Delivery Time :
5-7 days
Packaging Details :
Standard Export Package
Usage :
Paint and Coating Color Matching
Interface :
USB
Size :
8x5x2cm
Description

High Accuracy Color Formula Dye and Paint Coating Color Matching System

Dye and Paint Coating Color Matching System Introduction

The whole color matching system inclused includes color spectrophotometer and color matching software.It is widely used in paint, coating, printing, plastic, textile, dying indsutry, etc to get color recipe in gram unit. Spectrophotometer will transfer the test result into color matching software and then the software will calculate how much raw materials we will use to make the color.

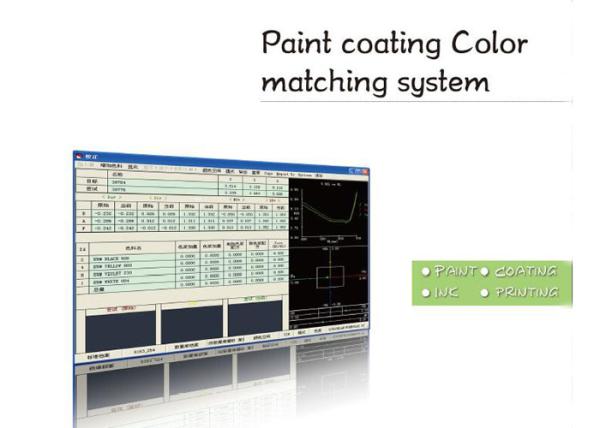

Color Matching System Pictures

High Accuracy Color Matching Software Getting Electronic Sample Values

Dye and Paint Coating Color Matching System Technical Data

Spectrophotometer

Sphere Size:40mm,Alvan-diffuse reflection surface coating

Illumination Light Sources:CLEDS

Geometry:d/8

Wavelength:400-700nm

Wavelength Interval:10nm

Measurement Range:0-200%

Resolution:0.01%

Light Source:A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9

,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF

Measurement Interval:2s

Size:181x73x112mm

Weight:about 550g (without battery)
Color Matching Software

Color Quality Control

Color Correction

Color Formula Calculation

Instrument Calibration
Color QC Software

Color different analysis

Data storage
Accessories electronic color swatch, color QC software, USB cable, operate manual, driver CD,Battery, calibration tile,carrying bag

Advantage of Color Matching System Comparing with Chemist Color Matching

CHNSpec's Color Matching Software Artificial Color Matching
It can provide various formula according to the instrument test result Chemist could only provide limited color scheme
Color Value and formula data reduce labor cost and ensure stable production Color scheme is not stable and entirely depends on the experience of chemist
Simple operation and rapid test result Complicate and requires experienced chemist for long time matching
Get exlectronic sample value and formula Color chart and formula can not be recorded well
Formula is higher accuracy and increases the efficiency of chemist Chemist need adjust formula for many times.It spends longer time,increases the cost and reduces efficiency
Old and waste materials can be used for color matching which saves cost A large number of waste and old materials can not be fully used
