Specifications
Brand Name :
CHN spec
Model Number :
CS-200
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
1000 per month
Delivery Time :
5-7 days
Packaging Details :
Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm
Illumination System :
D/8,SCI
Measuring Caliber :
11mm (optional 15mm,4mm,6mm)
Storage :
1000 test results
Instrument Size :
77x86x210mm
Measurement Time :
2 second
Measuring range :
0-200%
Repeatability :
below 0.08
Measuring light source :
LED
Languages :
English and Chinese
Device Weight :
550g (without battery)
Description

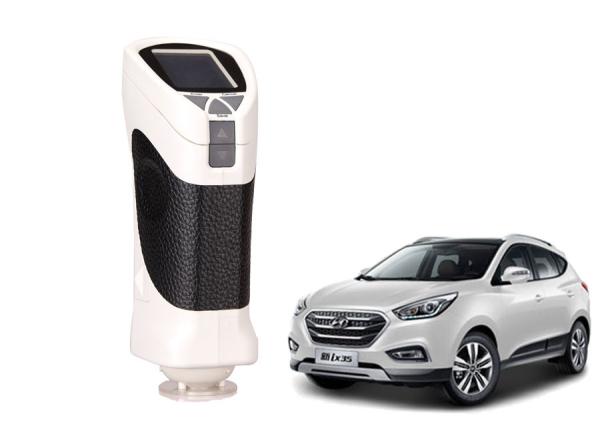

Economical Automobile Color Tester Tristimulus Colorimeter For Paint

Introduction:

CS-200 Color Checker Introduction is specially designed for chemical powder yellowness or whiteness measurement.It is with sealed aperture to make sure material will not enter into instrument.Its standard accessories contains one holder for powder and cream type material. It could test the color difference for meat,coffee, tomato sauce, colorant,pigment and other materials. It measures the sample color space L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.

Specifications:

Type CS-200
Illumination system 8/d(8°/diffused illumination)
SCI
Testing Aperture Diameter 8mm (option 4mm)
Measuring conditions CIE 10° standard observer; CIE D65 light source

Display

Chromaticity Value:L*a*b*,L*c*h,ΔE*ab,relative RGB value

YI (yellowness index) and WI (whiteness index)

Measuring range L*:1-100
Repeatability Standard deviation within delta E*ab*,below 0.08(testing condition: measure the white calibration board for average)
Storage 100 sets of standard samples; up to 100 under each standard sample
Measuring time About 0.5 seconds
Measuring light source LED
languages Chinese, English
Power Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter
port USB2.0 printer
weight 550g
Size 77×86×210mm

Competitive Advantage:

1). For YI and WI Measurement
2). High Quality & Reasonable Price
3).
PC Software for Data Management
4). Higher Accurate and Stable Performance
5).
Chinese / English Language Switching
6). National Metrology Accreditation
7). Average for Multi Points Measurement
8).
Best choice for color evaluation and data management
9). Mass Storage Memory
10). Low power consumption,USB or Bluetooth(optional) for data transfer

Free Colorimeter QC Software:

Our device is with mature PC management software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier.

Color Testing Tristimulus Colorimeter 0.5 Second Measuring Time For Automobile

Packing List:

Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received.

Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tiles
1 Color QC Software 1 Packing List

Longest Guarantee Time

Color Testing Tristimulus Colorimeter 0.5 Second Measuring Time For Automobile

a. One Year Guarantee Time.

b. If testing result is not correct, we will refund to you.

c. We will provide testing report for every device to assure the authority of the data and it will save the calibration cost for 1 year.
