Specifications
Brand Name :
CHN spec
Model Number :
CS-800
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
1000 per month
Delivery Time :
5-7 days
Packaging Details :
Size: 54x45x31cm Material: inner box: canvas bag outer box: Carton box
Illumination Light Source :
CLEDs
Sensor :
Dual Light Path Sensor Array
Reflectivity Range :
0-200%
Reflectivity Resolution :
0.01%
Machine Weight :
4.5kgs
Machine Packing Size :
350*300*200mm(L*W*H)
Usage :
Textile Color Reading Machine
Interface :
USB
Data Storage :
20000 test results
Display :
5 inches Color Screen
Description

Professional Benchtop Spectrophotometer Tomato Sauce Test With D/8 Geometry



Introduction:

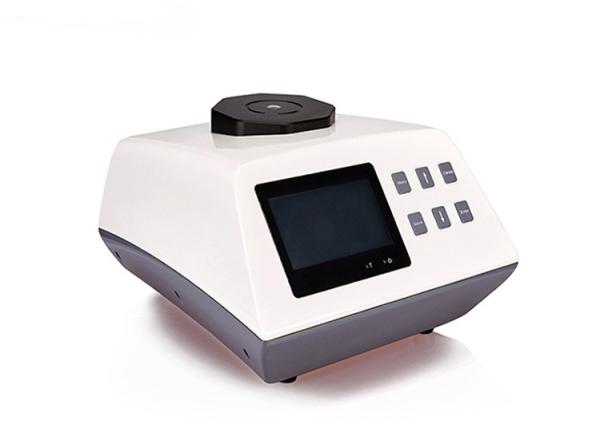

CS-800 is a highly performance color matching spectrophotometer with upward test aperture. The instrument adopts the geometry of D/8 and observation of CIE recommendations, integration of the full band LED composite light source, double beam optical system, ETC every-test calibration technology to make its standard deviation reaches 0.08 and maximum chromaticity values ΔE*ab is 0.03. It could be widely used for coating, printing, textile, meet plastic, food, medicine, automobile field to meet customers’ measurement requirement.


Specifications:

TypeCS-800
Illuminationd/8 (conform to CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c standards)
Size of integrating sphereΦ40mm,Alvan diffused reflection surface coating
Wavelength range400-700nm
Wavelength interval10nm
Half spectral width5nm
Observation angle2°/10°
Measurement light sourceA,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Data being displayedSPD distribution/data, sample's color values, color difference values/graph, pass/fail results, color error tendency, color simulation, display measurement area,history data color simulation, manual input standard sample, generate measurement report
Measurement timeAbout 1 second
Measurement time interval0.5 second
Measuring caliberΦ11mm
Color spaceCIE-L*a*b,L*C*h,L*u*v,XYZ,Yxy,reflectivity,Hunterlab,Munsell MI,CMYK
Color difference formulasΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555,color classification
Other colorimetric indices

WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73),
Tint(ASTM E313,CIE,Ganz),metamerism index Milm,
adhesive/changing color fastness, ISO luminance,8 gloss, A density, T density,E density, M density
Repeatabilitylight splitting reflectivity: standard deviation within 0.08%
color values:ΔE*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),Maximum: 0.03
Battery capacityrechargeable, 20000 continuous tests, 7.4V/6000mAh
Data storage40000 test results
Light source longevity5 years, 1.5 million tests
Inter-instrument agreementΔE*ab within 0.2 (BCRA color charts II, average of the 12 charts)
Work temperature range0~45℃, relative humidity 80% or below(at 35°C), no condensation



Competitive Advantage:

1). The First Spectrophorometer in China
2). D/8 Geometry, Simultaneous SCI/SCE Measurement
3). Top-port Caliber for Color Measurement
4). Upward Testing Caliber, Can Measure State of Solid, Samples of Different Particles, Powder, Paste etc. Easily
5). Can Measure Both SCI (specular included) and SCE (specular excluded) At The Same Time
6). Large Data Storage: Recoeds 40,000 Tests' Data


Free Color QC Software

Our spectrophotometer comes with the color management software, which is applicable in various industries’ quality control and management of color data. It turns color into numerical data, compares color differences, generates measurement reports. provides measurement data under different color spaces and customizes color management for each customer.

Benchtop Spectrophotometer , Color Measurement Spectrophotometer With D / 8 Geometry


Technical Support
Benchtop Spectrophotometer , Color Measurement Spectrophotometer With D / 8 Geometry
a. One Year Guarantee Time.
b. If testing result is not correct, we will refund to you.


Packing List

Benchtop Spectrophotometer , Color Measurement Spectrophotometer With D / 8 Geometry

Qty.NameQty.Name
1Main Instrument1Power Line
1Operating Manual1USB Cable
1Driving Software1Black/White Calibration Tile
1Color QC Software1Verification Certification
1Packing List1Warranty Card
