Easy Operated Portable Color Spectrophotometer ASTM D7843 Turbine Oils
Easy Operated Portable Color Spectrophotometer ASTM D7843 Turbine Oils
Easy Operated Portable Color Spectrophotometer ASTM D7843 Turbine Oils
Easy Operated Portable Color Spectrophotometer ASTM D7843 Turbine Oils
Easy Operated Portable Color Spectrophotometer ASTM D7843 Turbine Oils
Easy Operated Portable Color Spectrophotometer ASTM D7843 Turbine Oils
Easy Operated Portable Color Spectrophotometer ASTM D7843 Turbine Oils
Easy Operated Portable Color Spectrophotometer ASTM D7843 Turbine Oils
Specifications
Brand Name :
CHN spec
Model Number :
CS-600C
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 per month
Delivery Time :
5-7 days
Packaging Details :
Inner Box: Foam Package Outer Box: Carton box Size:29x25x23cm
Illumination Light Source :
CLEDs
Sensor :
Dual Light Path Sensor Array
Wavelength Interval :
10nm
Half Spectral Width :
5nm
Reflectivity Range :
0-200%
Reflectivity Resolution :
0.01%
Measurement Time :
0.5s
Interface :
USB
Data Storage :
20000 test results
Working Temperature :
0-45℃
Description

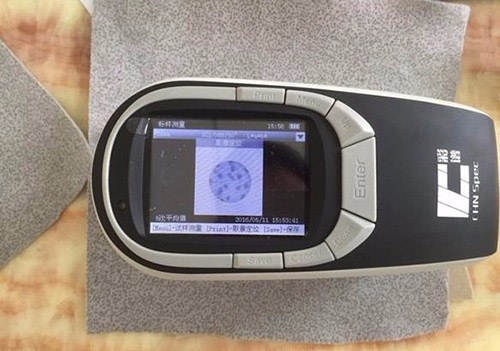

ASTM D7843 Turbine Oils Portable Color Spectrophotometer Measure Instrument

Introduction:

Our color measuring machine is designed for measuring CIE-Lab, CIE-XYZ,density CMYK,etc.It adopts high technology from overseas. It tests based on the condition of 45/0 that is internationally used. Our device is widely used for color measurement for any industry especially for printing color quality control.

Easy Operated Portable Color Spectrophotometer ASTM D7843 Turbine Oils

Specifications:

Type CS-600C
Illumination 45/0,SCE(specular reflection excluded)
Size of integrating sphere Φ40mm
Sensor dual light path sensor array
Wavelength Range 400-700nm
Reflectivity resolution 0.01%
Observation angle 2°/10°
Measurement light source A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Measurement time 1 second
Color space CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance, Hunterlab,Munsell MI,CMYK
Color difference formulas ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00, ΔEab(Hunter),555,color classification
Other colorimetric indices

WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz)

Metamerism index Milm, Stick color fastness, Color fastness, ISO luminance, 8 gloss, A density, T density
Repeatability light splitting reflectivity:standard deviation within 0.08%

color values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),

Maximum:0.05
Battery capacity rechargeable, 10000 continuous tests, 7.4V/6000mAh
Light source longevity 5 years, 1.5 million tests
Inter-instrument agreement ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Size 181*73*112mm(L*W*H)
Weight about 550g(does not include battery's weight)
Work temperature range 0~45℃, relative humidity 80% or below( at 35°C ),no condensation

Applications:

It can be applied to laboratories, factories and others field that need color testing;

Allows medium and small companies to obtain high performance color management system;

The following are some of the application of our Spectrophotometers:

Easy Operated Portable Color Spectrophotometer ASTM D7843 Turbine Oils

Competitive Advantage:

1). Obtained Metrology Accreditation Certificate in China

2). Large data storage space

3). Large TFT display screen

4). Modern and fashionable design based on human engineering

5). Easy to operate and compact operation interface

6). Pre-locating panel design for easy instrument calibration

7). Uses LED light source; high capacity rechargeable lithium-ion battery

8). Can measure both SCI(specular included)and SCE(specular excluded) at the same time

9). Includes PC software to manage data

10). Can connect to micro-printers for printing

11). Professional horizontal design and it does not have any moving parts, which avoids the shaking of the instrument during measurement process. This makes the measurement more accurate

12). PC software for easy measurement data management

13). Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement records for each standard sample

Easy Operated Portable Color Spectrophotometer ASTM D7843 Turbine Oils
