CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size
CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size
CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size
CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size
CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size
CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size
CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size
CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size
Specifications
Brand Name :
CHN spec
Model Number :
CS-800
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
1000 per month
Delivery Time :
5-7 days
Packaging Details :
Size: 54x45x31cm Material: inner box: canvas bag outer box: Carton box
Illumination Light Source :
CLEDs
Sensor :
Dual Light Path Sensor Array
Reflectivity Range :
0-200%
Reflectivity Resolution :
0.01%
Machine Weight :
4.5kgs
Machine Packing Size :
350*300*200mm(L*W*H)
Usage :
Textile Color Reading Machine
Interface :
USB
Data Storage :
20000 test results
Display :
5 inches Color Screen
Description

High Quality Top-port Caliber Color Measurement Spectrophotometer Price


Introduction:

CS-800 is a highly performance spectrophotometer with test caliber upward. The instrument adopts the geometric conditions of D/8 lighting and observation of CIE recommendations, integration of the full band LED composite light source, double beam optical system, ETC every-time calibration technology, spectral reflectance standard deviation within 0.08, maximum of colorimetric values ΔE*ab is 0.03, to provide all the necessary color formula. It could be widely used for coating, printing, textile, meet plastic, food, medicine, automobile field to meet customers’ measurement requirement.


Specifications:

TypeCS-800
Illuminationd/8(Diffused lighting, 8 degrees observe angle)(conform to CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c standards)
Size of integrating sphereΦ40mm,Alvan diffused reflection surface coating
Wavelength range400-700nm
Wavelength interval10nm
Half spectral width5nm
Observation angle2°/10°
Measurement light sourceA,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Data being displayedSPD distribution/data, sample's color values, color difference values/graph, pass/fail results, color error tendency, color simulation, display measurement area,history data color simulation, manual input standard sample, generate measurement report
Measurement timeAbout 1 second
Measurement time interval0.5 second
Measuring caliberΦ11mm
Color spaceCIE-L*a*b,L*C*h,L*u*v,XYZ,Yxy,reflectivity,Hunterlab,Munsell MI,CMYK
Color difference formulasΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔEab(Hunter),555,color classification
Other colorimetric indices

WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73),
Tint(ASTM E313,CIE,Ganz),metamerism index Milm,
adhesive/changing color fastness, ISO luminance,8 gloss, A density, T density,E density, M density
Repeatabilitylight splitting reflectivity: standard deviation within 0.08%
color values:ΔE*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),Maximum: 0.03
Battery capacityrechargeable, 20000 continuous tests, 7.4V/6000mAh
Data storage40000 test results
Light source longevity5 years, 1.5 million tests
Inter-instrument agreementΔE*ab within 0.2 (BCRA color charts II, average of the 12 charts)
Work temperature range0~45℃, relative humidity 80% or below(at 35°C), no condensation


Competitive Advantage:

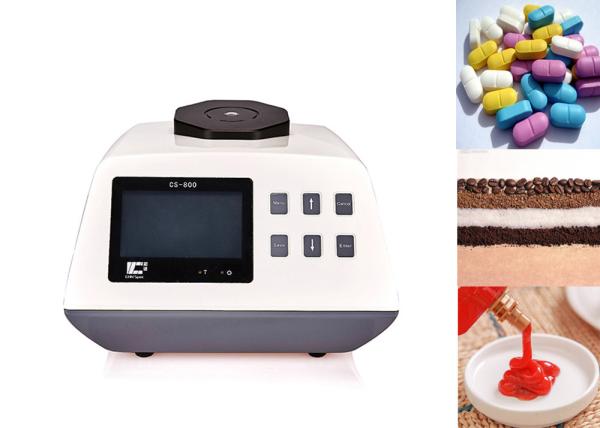

1). Solid samples (steel, cloth) can be placed directly on the measurement port, particles (tablets, master batch), powder (pigment, coffee), paste objects (tomato sauce) can be placed in a petri dish, and then placed in the measurement port.
CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size

2. D8 Structure
Our device adopts internationally agreed observe condition D/8 (Diffused lighting, 8 degrees observe angle) and SCI(specular reflection included)/SCE(specular reflection excluded).

3. Can Measure SCI and SCE at the same time

4. ETC Technology (Every Test Calibration)

5. Color Analysis Software
Our spectrophotometer comes with the color management software, which is applicable in various industries’ quality control and management of color data. It turns color into numerical data, compares color differences, generates measurement reports. provides measurement data under different color spaces and customizes color management for each customer.
CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size


Company Information

Our CHNSpec Technology., Ltd are specialized on manufacturing spectrophotometers, colorimeters and gloss meters. Our products have gotten 10 Invention Patents including 1 American Invention Patent, 8 Utility Model Patents, 4 Appearance Patents and 3 Software Copyrights till now. If any need or questions about our products, please do not hesitate to contact me. You are warmly welcome to visit and purchase from us.
CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size
