Specifications
Brand Name :
CHNSpec
Model Number :
FS-20
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Delivery Time :
5-7days
Packaging Details :
carton box
Supply Ability :
1000 per month
Spectroscopic method :
Grating
Spectral region :
400-700nm
Spectral resolution :
2.5nm
Slit width :
25um
Pixel size :
5.86um*5.86um
Detector type :
CMOS
SNR :
600/1
Description
25um Slit width Hyperspectral Imaging Camera With CMOS Detector FS-20
FIGSPEC FS2X Series
Imaging Hyperspectral Cameras
25um Slit Width Hyperspectral Imaging Camera With CMOS Detector FS-20

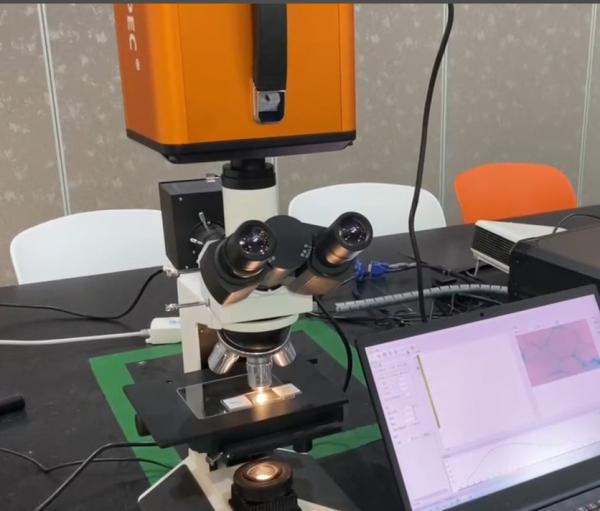

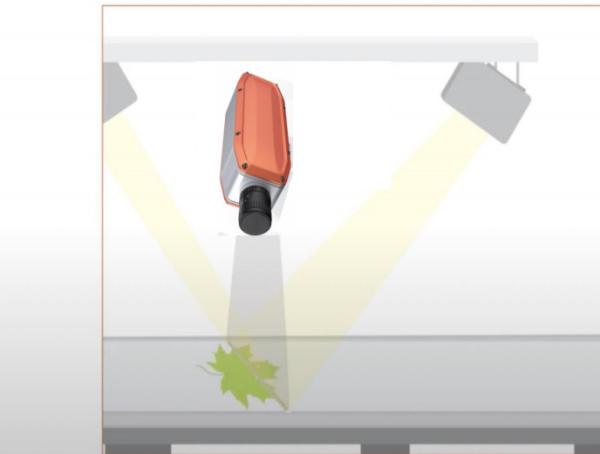

FigSpec® series of imaging hyperspectral cameras adopt transmission grating splitter module with high diffraction efficiency and high sensitivity surface array camera, combined with built-in scanning imaging and auxiliary camera technology, which solves the difficult problems of tradi tional hyperspectral cameras, such as external push scan imaging mechanism and complex focus. It can be directly integrated with standard C interface imaging lens or microscope to achieve rapid spectral image acquisition.
Visible spectrum/NIR:
· Spectral range: 400-1000nm, wavelength resolution better than 2.5nm, up to 1200 spec
tral channels.
· Image resolution up to 1920*1920
SW-NIR:
· Spectral range: 900-1700nm, wavelength resolution better than 8nm, up to 254 spectral
channels
· Image resolution up to 320*320
Application fields
Spectral analysis, material sorting, fruit and vegetable analysis, agricultural remote sensing, industrial detection,
UAV-borne hyperspectral imaging analysis, portable hyperspectral imaging analysis.
25um Slit Width Hyperspectral Imaging Camera With CMOS Detector FS-20
Parameters
Model FS-20 FS-22 FS-23 FS-25
Spectroscopic method Grating Grating Grating Grating
Image resolution 1920*1920 1920*1920 1920*1920 320*320
Dynamic range 12 bits 12 bits 12 bits 14 bits
Imaging speed ≤15 seconds ≤15 seconds ≤5 seconds ≤5 seconds
Spectal channels number 600 1200 1200 254
Spectral region 400-700nm 400-1000nm 400-1000nm 900-1700nm
Spectral resolution 2.5nm 2.5nm 2.5nm 8nm
Slit width 25um 25um 25um 25um
Transmission efficiency 60% 60% 60% 60%
Stray light level 0.5% 0.5% 0.5% 0.5%
Pixel size 5.86um*5.86um 5.86um*5.86um 5.86um*5.86um 30um*30um
Detector type CMOS CMOS CMOS InGaAs
Senscar imaging surface size 11.3*7.1mm 11.3*7.1mm 11.3*7.1mm 9.6mm x7.68mm
Standard lens focal length 25mm 25mm 25mm 25mm
Minimum working distance 100mm 100mm 100mm 100mm
Field angle 25° 25° 25° 17°
Mirimum exposure time 34us 34us 21us 1us
Maximum exposure time 10 seconds 10 seconds 10 seconds 1 seconds
SNR 600/1 600/1 600/1 600/1
Data interface USB3.0 USB3.0 USB3.0 Gigabit network
Camera lens interface C C C C
Accessories USB3.0 transmission line USB3.0transmission line USB3.0 transmission line Gigabit network transmission line
