CRX-52 Non-Contact Color Measurement Instrument With Built-In Calibration And LED Light Source
CRX-52 Non-Contact Color Measurement Instrument With Built-In Calibration And LED Light Source
CRX-52 Non-Contact Color Measurement Instrument With Built-In Calibration And LED Light Source
CRX-52 Non-Contact Color Measurement Instrument With Built-In Calibration And LED Light Source
CRX-52 Non-Contact Color Measurement Instrument With Built-In Calibration And LED Light Source
CRX-52 Non-Contact Color Measurement Instrument With Built-In Calibration And LED Light Source
CRX-52 Non-Contact Color Measurement Instrument With Built-In Calibration And LED Light Source
CRX-52 Non-Contact Color Measurement Instrument With Built-In Calibration And LED Light Source
Specifications
Brand Name :
CHN spec
Model Number :
CRX-52
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
1000 per month
Delivery Time :
5-7 days
Packaging Details :
Carton box
Measuring caliber :
φ10mm(φ4mm Optional）
Measuring distance :
0.5mm
Calibration method :
Built in calibration
Protection level :
IP67
Wavelength range :
400-700nm
Measuring range :
0-200%
Lighting viewing system :
D / 8 (diffuse illumination / 0 ° observation) - SCI (including specular reflection light)
Half bandwidth :
5nm
Sensor :
Dual optical path array sensor
Resolving power :
0.0001
Wavelength interval :
10nm
Description

CRX-52

Three Angles to Measure Color, Graininess and Grade Evaluation

Measure Angles 15,45 and 115, Illuminate angle 45

Good Consistency with Laboratory Test Result

It is designed to measure car paint, effective paint, laser paper, mobile phone colorful shell,etc.

Product Features

Built-in Calibration Tiles for Auto Calibration

Full Wavelength Balanced LED Light Source with Long Lifetime

Products Description

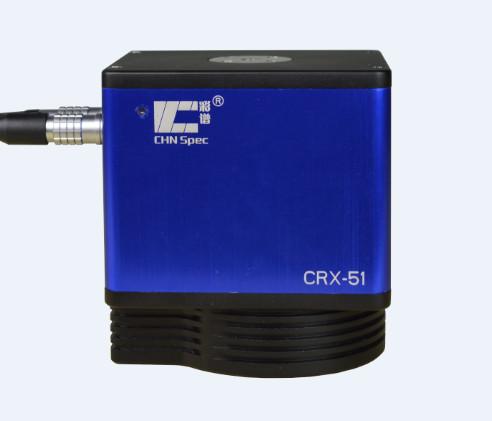

The CRX-50 / 51 / 52 is a domestic commercial non-contact or in-line color measurement instrument that can be used for both laboratory measurements and in-line measurements of reflectance spectra and chromaticity data.

Laboratory measurement (equipped with control stand) - suitable for non-contact color measurement of cosmetics, paint/ink wet films and antiques without contamination and damage to the sample.
Online color monitoring systems for long-term data products to provide more comprehensive and complex information design, faster response, optimization of production processes and product quality. Make real-time adjustments to reduce costs and increase productivity.

  • Built in calibration without human intervention

  • The full band balanced LED is used as the lighting source, and the service life is worry free

Technical Parameters

Model CRX-50 CRX-51 CRX-52
Lighting viewing system
45 ° observation (0 / 45 °)


D / 8 (diffuse illumination / 0 ° observation) -


SCI (including specular reflection light)
45 ° illumination, 15 °, 45 °, 110 ° observation
Lighting sources
Cleds (full band balanced LED light source)
Sensor
Dual optical path array sensor
Dual optical path array sensor
Silicon photodiode

Measuring distance


7.5 ± 3mm (distance fluctuation)
Repeatability in case (de < 0.1)
0.5mm
Contact measurement
Calibration method
Built in calibration
Protection level
/
IP67
/
Wavelength range
400-700nm
Wavelength interval
10nm
Half bandwidth
5nm
Measuring range
0-200%
Resolving power
0.0001
Measuring caliber
φ7mm
φ10mm(φ4mm Optional)
φ7mm
Measurement time
less than 20ms
less than 20ms
6s
illuminants
A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30.DLF,NBF,TL83,TL84.U35
Color Space and other indices


CIE-L*a*b,L*C*h,L*u*v,XYZ,Yxy,reflectivity,WI(ASTM E313-00,ASTM


E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby),


YI(ASTM D1925,ASTM E313-00,ASTM E313-73),


Tint(ASTM E313,CIE,Ganz),Homochromatism index milm,


color fastness to adhesion, color fastness
CIE-L*a*b,L*C*h,Surface particle grade
Color difference
ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00
ΔE*ab,ΔEc,ΔEp
Repeatability※
Chromaticity value:ΔE*ab Standard deviation≤0.03,Maximum≤0.05
Inter station difference※※
Δ E * AB within 0.2
Δ E * AB within 0.5
Light source life
Lifetime warranty
Operating environment
0-45 ℃, relative humidity 80% or lower (at 35 ° C), no water vapor condensation
Storage environment
-25 ° C to 55 ° C, relative humidity 80% or less (at 35 ° C), no moisture condensation
Power Supply
DC12V
DC12V
DC6V
Interface
Industrial USB, other interfaces can be customized

※ After correction, the whiteboard shall be measured continuously for 30 times with an interval of 1s

※※ Average value of 12 color plates of BCRA series Ⅱ
