CS -580 Portable Color Spectrophotometer To Measure Colour Of Bricks And Ceramic Color
CS -580 Portable Color Spectrophotometer To Measure Colour Of Bricks And Ceramic Color
CS -580 Portable Color Spectrophotometer To Measure Colour Of Bricks And Ceramic Color
CS -580 Portable Color Spectrophotometer To Measure Colour Of Bricks And Ceramic Color
CS -580 Portable Color Spectrophotometer To Measure Colour Of Bricks And Ceramic Color
CS -580 Portable Color Spectrophotometer To Measure Colour Of Bricks And Ceramic Color
Specifications
Brand Name :
CHN spec
Model Number :
CS-580
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 per month
Delivery Time :
5-7 days
Packaging Details :
Inner Box: Foam Package Outer Box: Carton box Size:
Price :
negotiable
Product Name: :
Color Spectrophotometer
Test Material: :
Plastic
Measurement Time: :
2 Seconds
Interface: :
USB
Aperture: :
10mm
Geometry: :
D/8
Color: :
Grey And Black
Measurement :
2 Seconds
Accuracy: :
Delta E*ab 0.03
Wavelength :
400-700nm
Description

Product Description

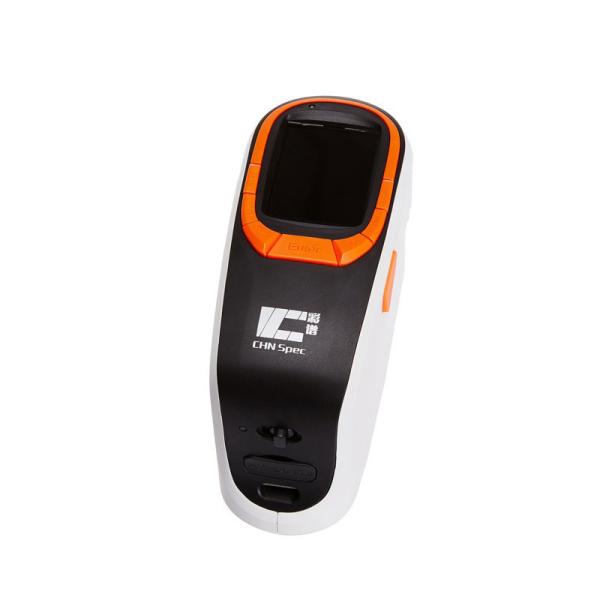

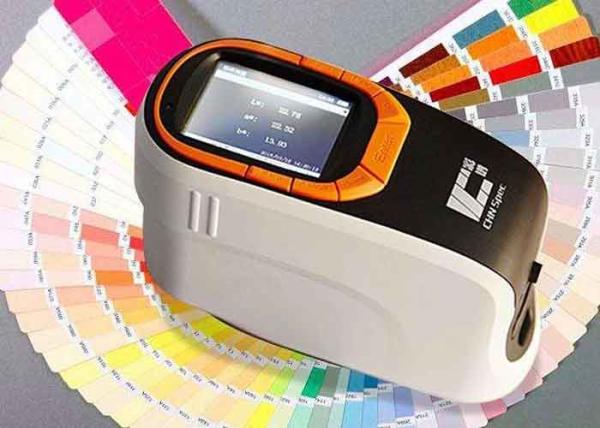

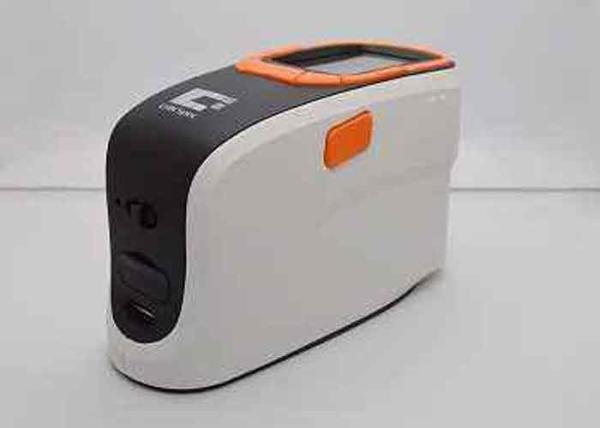

Portable Spectrophotometer CS-580 to measure the colour of bricks and ceramic color

Color Tester Introduction

Our color tester is designed for measuring color.It adopts high technology from overseas.It tests based on the condition of D/8 that is internationally used.It is widely used for color measurement of any industry especially for chemical,textile, plastic,food and other products’ color quality control.It could work with micro printer for printing testing result anywhere.Spectrophotometer can provide reflectacne data of 30 wavelengths spaced at 10nm intervals between 400-700nm.

Color Tester Specifications

Type CS-580
Measure Conditions d/8,SCS optical engine,ETC, SCI/SCE,simultaneous measurement
Size of Integrating Sphere Φ40mm,Alvan diffused reflection surface coating
Illumination Light source CLEDs(entire wavelength balanced LED light source)
Wavelength Range 400-700nm
Measure Range / resolution factor 0-200% , 0.0001
Observation Angle 2°/10°
Measurement Light Source

A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,DLF,NBF,

TL83,TL84
Data being displayed

reflectance data/figure, sample color values, color difference values/graph, pass/fail results,

color error tendency, color simulation, display measurement area, history data color

simulation, manual input standard sample, generate testing report
Measurement time interval 2 seconds
Measuring Aperture 10mm
Color space CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance
Color difference formulas ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00
Other colorimetric indices

WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby),

YI(ASTM D1925,ASTM E313-00,ASTM E313-73),

Tint(ASTM E313,CIE,Ganz),

Metamerism index Milm, Stick color fastness, Color fastness
Repeatability light splitting reflectivity : standard deviation within 0.08%

color values: ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on

test white board, 5 second intervals),Maximum:0.05
Inter-instrument agreement ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Work temperature range 0~45℃, relative humidity 80% or below( at 35°C ),no condensation

Color Tester Competitive Advantage

1). Pre-locating panel design for easy instrument calibration

2). Can connect to micro-printers for printing

3). Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement records for each standard sample

4). Can measure both SCI(specular included)and SCE(specular excluded) at the same time

5). Uses LED light source; high capacity rechargeable lithium-ion battery

6). Professional horizontal design and it does not have any moving parts, which avoids the shaking of the instrument during measurement process. This makes the measurement more accurate

Color Tester Free Color QC Software


Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.

CS -580 Portable Color Spectrophotometer To Measure Colour Of Bricks And Ceramic Color

Color Tester Packing List:

Packing Material:Canvas bag with carton box
Packing Size:290x250x230mm
Packing Weight:1.98kgs
Delivery time:3-20 days after payment received.

CS -580 Portable Color Spectrophotometer To Measure Colour Of Bricks And Ceramic Color

Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 Black/White Calibration Tile
1 Color QC Software 1 Verification Certification
1 Packing List 1 Warranty Card
