Specifications
Brand Name :
CHNSpec
Model Number :
CS500
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
5-7days
Packaging Details :
cartoon box
Geometry :
D/8
Light Source :
LED(Full band balanced LED)
Observer Angles :
2 and 10
Calibration :
AUTO
Wavelength Interval :
10nm
Wavelength Range :
400-700nm
Reflectance Range :
0-200%
Reflectance Resolution :
0.01%
Repeatability :
Chromaticity value: Max. :dE*ab< 0.1 Average :dE*ab< 0.05 Standard deviation within ΔE*ab 0.03 (when a white tile is measured 30 times at 5-seconds interval) Reflectance: Standard deviation < 0.1%
Screen :
IPS Full Color Screen,2.4 inches
Pass Metrology :
Yes, metrology level I
Description

CS -500 D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength

D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength

China CHNSpec CS-500 D/8 2 And 10 Observer Angles 10nm Wavelength Interval Spectrophotometer

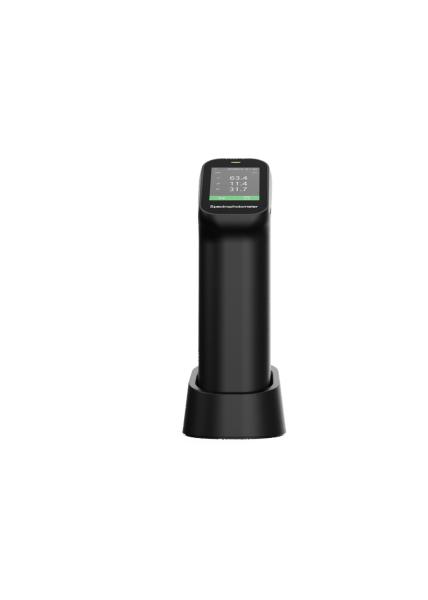

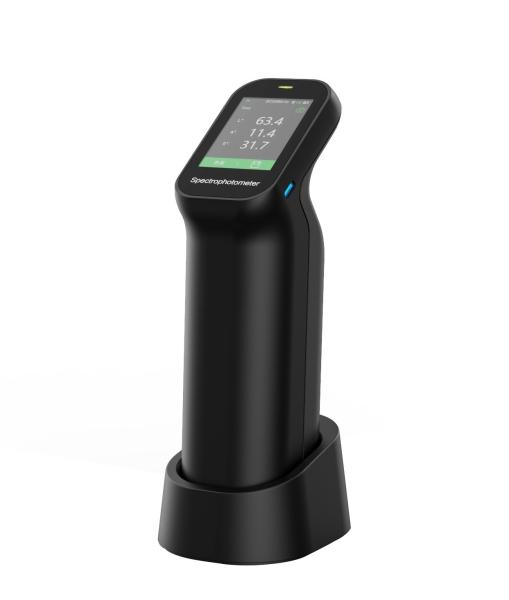

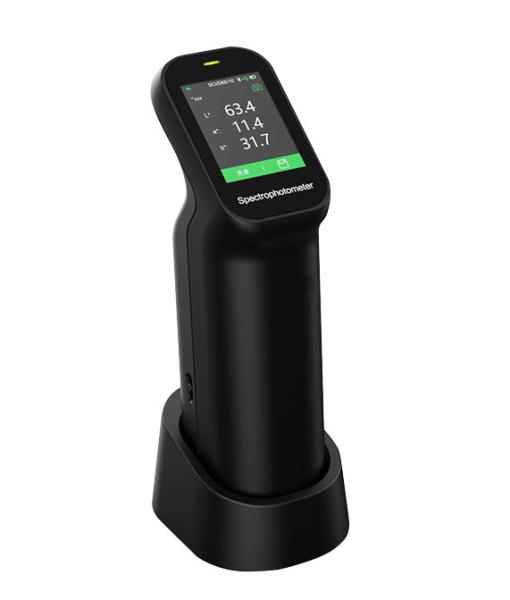

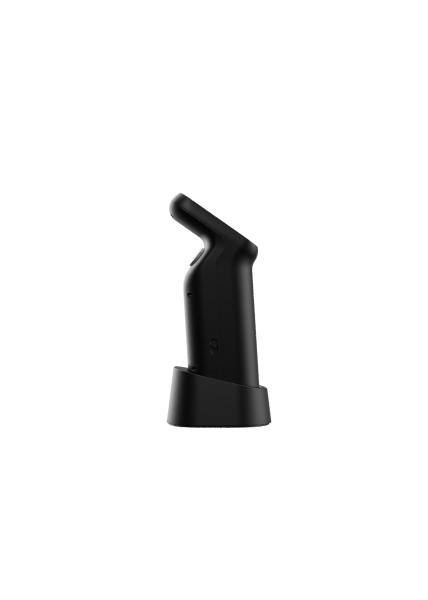

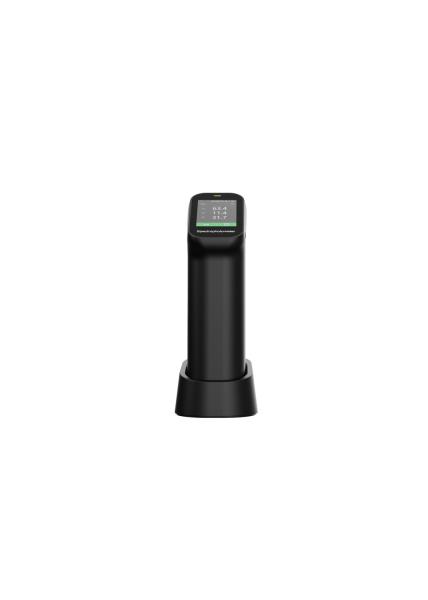

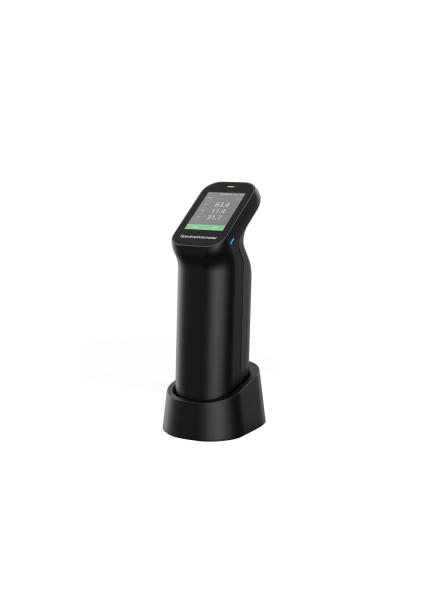

Portable Spectrophotometer CS-500

------Revolution in color measurement



Portable spectrophotometer CS-500 is with the powerful performance configuration which makes color measurement more professional. Excellent inter-instrument agreement ensures consistency of the measurement data of multiple devices; Wireless connection with Android or IOS devices via Bluetooth. It greatly expands the application boundary of color spectrophotometer; automatic calibration, magnetic seat charging, touch screen operation... it will fully upgrade the user experience.

Part 1. Product Features
1. 20 kinds of color indexes and 26 kinds of illuminants
Spectrophotometer CS-500 supports 26 kinds of illuminants such as D65/D50,etc. It can get the value of reflectance, CIE-Lab,CIE-LCh, whiteness, yellowness, opacity, color strength and other color indexes.

2. Excellent inter-instrument Agreement
inter-instrument agreement ＜0.3 which ensures test results consistency of multiple devices.

3. Auto calibration
The revolutionary auto calibration technology allows the instrument to achieve automatic calibration, which greatly improves the user experience.

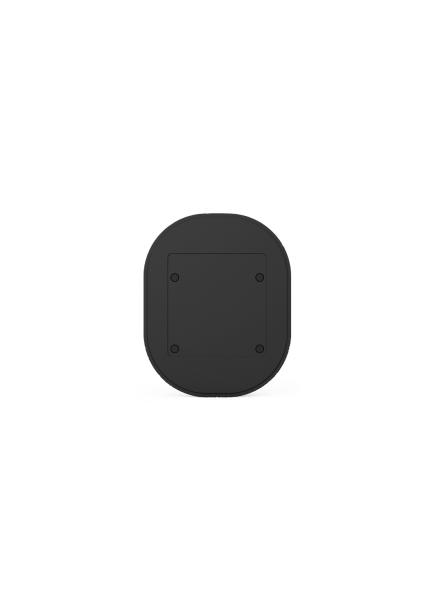

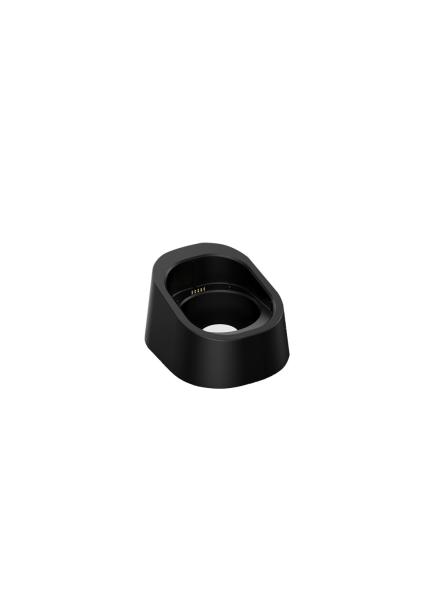

4. Multi-function calibration base
The multi-function calibration base keeps the white tile being protected, combining calibration and charging functions in one. When instrument is placed on the base, it will be automatically charged and calibrated. It saves a lot of time for the user to charge and calibration the device.

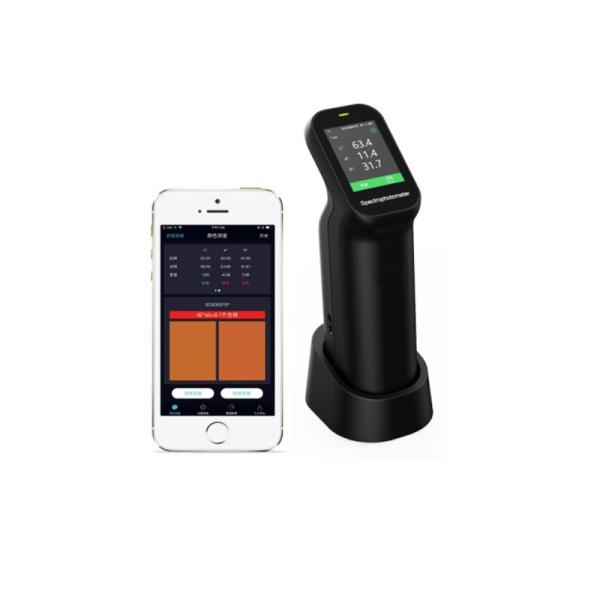

5. Connect to the mobile device App to expand more functions
Connect to APP to find the similar color from different color swatches. Personal color database can also be established in the cloud and samples saved in cloud can be set into target for color different test. From APP, we can also obtain instrument data or download data to the instrument.

Part 2. Technical Parameter

Model Spectrophotometer CS-500
Geometry D/8 (diffused illumination,8° viewing), Specular Component Included(SCI)
Light Source LED(Full band balanced LED)
Color Spaces and Indices

Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-
73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM
D1925,ASTM E313-00,ASTM E313-73), Blackness
(My,dM),Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength
Illuminants A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Observer Angles 2°,10°
Sensor 256 pixel CMOS sensor
Calibration Auto
Wavelength Interval 10nm
Wavelength Range 400-700nm
Sphere Size 40mm
Reflectance Range 0-200%
Reflectance Resolution 0.01%
Repeatability

Chromaticity value:
Max. :dE*ab< 0.1
Average :dE*ab< 0.05
Standard deviation within ΔE*ab 0.03 (when a white tile is measured 30 times at 5-seconds interval)
Reflectance:
Standard deviation < 0.1%
Illumination Area/Aperture MAV:Φ8mm/Φ11mm
Inter-instrument agreement

ΔE*ab＜0.3
(BCRA Series Ⅱ, average measurement of 12 tiles,MAV/SCI)
Test Time About 2s
Storage APP mass storage
Battery Rechargeable, 8000 times continuous tests, 3.7V/3000mAh

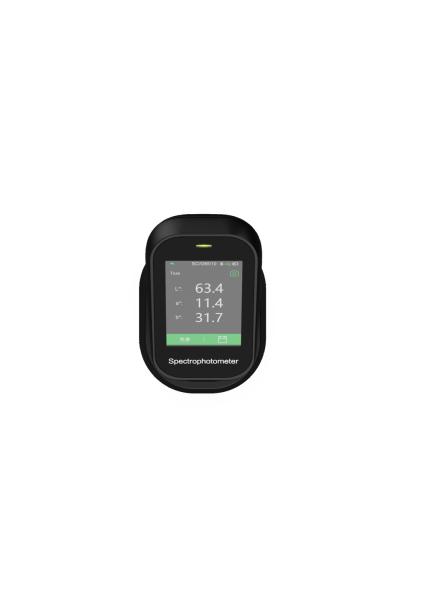

Screen IPS Full Color Screen,2.4 inches
Interface USB,Bluetooth
Lamp Lifetime 10 years, 1 million tests
Language Chinese and English
Software Android, IOS, Windows
Camera without
Pass Metrology Yes, metrology level I
Instrument Size L x W x H (77.8mm x 53.2mm x 185.7mm)
Weight About 300g
Packing Weight and Size

1.5kgs
32x17x29cm

Part 3. Packing List

Qty. Name Qty. Name
1 Main Instrument 1 Power Cable
1 Operating Manual 1 Charger base

D/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm WavelengthD/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm Wavelength
Part 4. Application
D/8 2 And 10 Observer Angles Interval Auto Calibration Spectrophotometer 10nm Wavelength
Part 5. Warranty
1 year
a. One Year Warranty Time.
b. Every instrument comes with verification certification to ensure the accuracy of the test result and save first year calibration cost for customer.
