Specifications
Brand Name :
CHNSpec
Model Number :
CS392
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
5-7days
Packaging Details :
cartoon box
illumination angle :
45
measurement angles :
15，45,110,SPHERE DIFFUSED
wavelength range :
400-700nm
wavelength pitch :
10nm
reflectance range :
0-500%
viewing angles :
2,10
repeatability :
0.05
inter-instrument agreement :
0.5
light source :
led
interface :
USB
Description

0-500% Reflectance Range 10nm Wavelength Pitch Handled Multiple Angle 15 45 110 Spectrophotometer

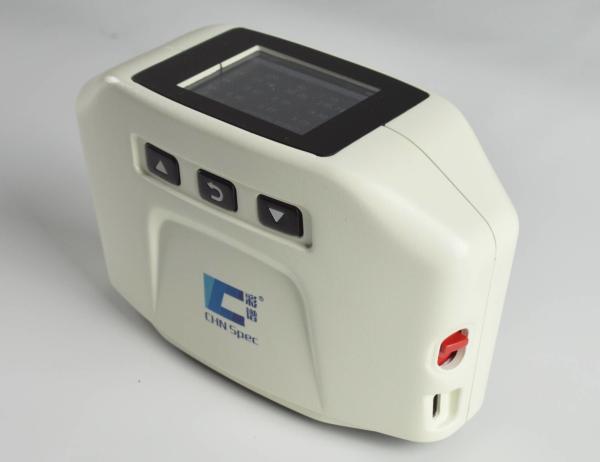

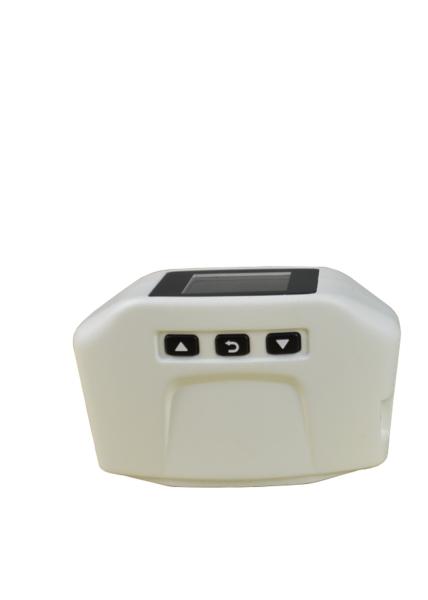

Three Angles Spectrophotometer CS-390/392 Introduction

Part 1. Introduction

Three angles color spectrophotometer CS-390/392 is specially designed for metallic paint color matching. It could measure the car paint in three different angles (15,45 and 110 degree) to get higher accuracy data for color analysis. CS-392 can also measure graininess level of car paint.

Working Principle of Color Measurement

10nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 11010nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 110

Graininess Measurement Principle CS-392

Part 2. Instrument Advantages

■ It changes color measurement into a simpler work

■ Fast to get paint formula (only suitable for car paint manufacturer)

■ Simple interface and easy operation

■ Instrument is with rubber mat to prevent from sliding during measurement

■ Small measurement aperture for curve material measurement

■ Optional blue tooth function to connect with mobile phone and other devices.

Part 3. Application

10nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 11010nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 110

Car Paint Paint Color Matching

10nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 11010nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 110

Hardware Paint Mobile Phone Case

10nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 11010nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 11010nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 11010nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 11010nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 11010nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 11010nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 110

Part 4. Measure Car Paint In Customer’s Shop

10nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 11010nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 11010nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 11010nm Wavelength Pitch Handled Spectrophotometer Multiple Angle 15 45 110

Part 5 Technical Data and Price List

Model CS-390 CS-392
Illumination Angle 45°
Measurement Angles 15°, 45°,110°

Color Measurement Angle: 15°, 45°,110°

Graininess Measure Angle: Integrating Sphere Diffuse
Parameters L*a*b, L*C*h, ΔE*ab, ΔE(cmc), ΔE DIN6175, ΔE 2000

Chromaticity Value: L*a*b, L*C*h, ΔE*ab, ΔE(cmc), ΔE DIN6175, ΔE 2000

Graininess Lever (G)
Wavelength Range 400-700nm
Wavelength Pitch 10nm
Reflectance Range 0-500%
Resolution 0.01%
Light Source LED
Measurement Time < 2s < 6s
Repeatability

dE≤0.05 Max. measure white tile, after calibration

(measured 30 x at 5-second intervals)
Inter-instrument Agreement dE≤0.5 Average measurement of BCRA II color tiles
Measurement Aperture Diameter 17mm
Viewing Angles 2°/ 10°
Illuminants A,C,D50,D65, F2, F7, F11, F12
Light Source Life time 10 years, ≥1 million times
Interface USB or custom made
Instrument Size 145x58x99mm
Instrument Weight 476g
Power 3.7V/3000mAh rechargeable lithium battery
Temperature 0-40℃ (32-104 F)
Storage Temperature -20-50℃ (-4-122 F)
