Specifications

Brand Name :

CHN spec

Model Number :

CS-700

Certification :

CE

Place of Origin :

China

MOQ :

1

Price :

negotiable

Payment Terms :

L/C, T/T, Western Union, MoneyGram

Supply Ability :

1000 per month

Delivery Time :

5-7 days

Packaging Details :

Inner Box: Foam Package Outer Box: Carton box Size:70x34x56cm

Instrument Color :

White

Product Name :

Haze and Transmission Test Machine

Application :

Glass Haze Measurement

Light Source :

C,D65 and A

Standard :

ASTM and ISO

Power :

110-240V

Warranty :

1 year

Instrument Weight :

7kgs

Interface :

USB

wavelength :

400-700nm

wavelength interval :

10nm

geometry :

d/0

display :

5 inches

illumination :

16.5mm

aperture size :

21mm

haze resolution :

0.01unit

Description

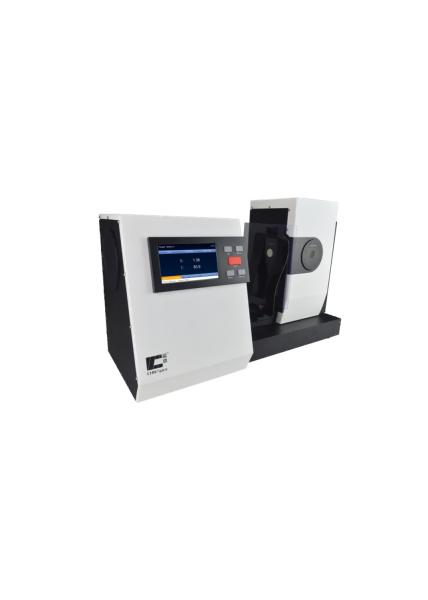

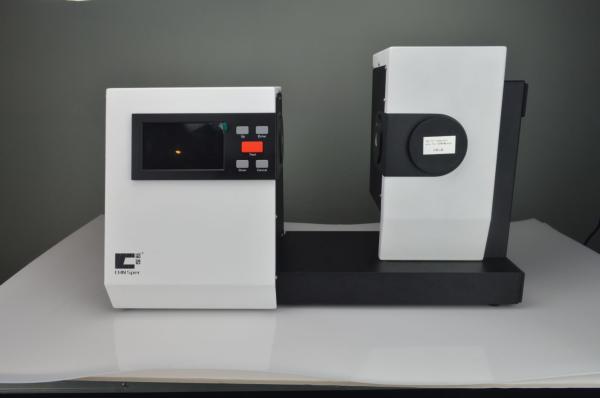

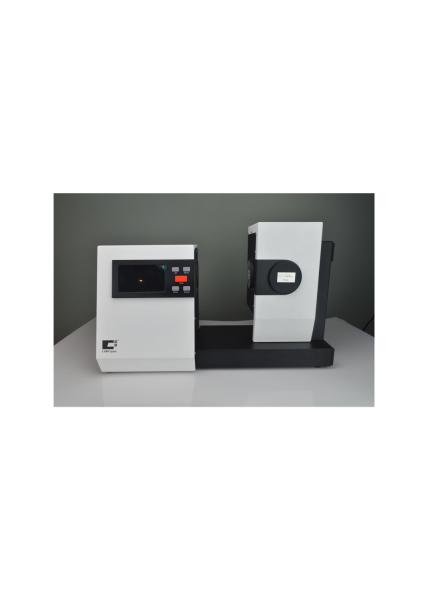

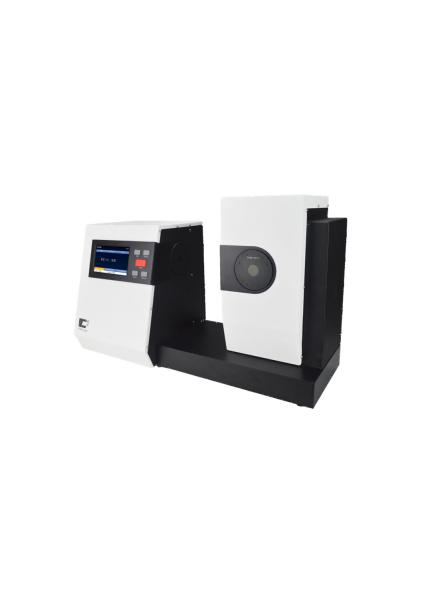

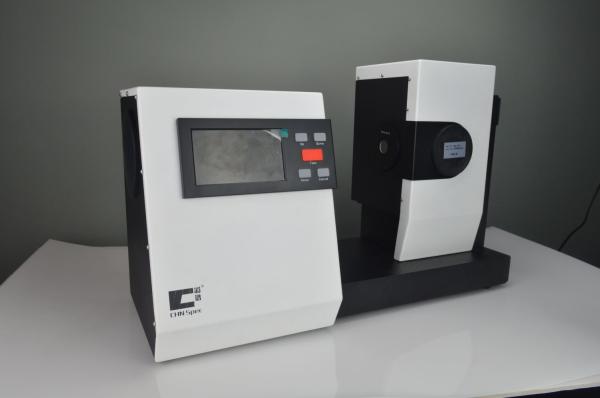

Haze MeterCS-700

10nm wavelength interval 400-700nm wavelength Haze Measurement Instrument / Transmittance Haze Meter

It is designed for plastic, films, glass, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.

Part 1. Instrument Introduction

1. Conform to ASTM and ISO standard. 3 kinds of light sources A,C and D65 for haze measurement.

10nm wavelength interval 400-700nm wavelength Haze Measurement Instrument / Transmittance Haze Meter

2. It can realize transmittance compensation measurement which can provide higher accuracy test result.

10nm wavelength interval 400-700nm wavelength Haze Measurement Instrument / Transmittance Haze Meter

3. Open measurement area, no limit on sample size. Vertical measurement is also available.

10nm wavelength interval 400-700nm wavelength Haze Measurement Instrument / Transmittance Haze Meter

4. Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.

10nm wavelength interval 400-700nm wavelength Haze Measurement Instrument / Transmittance Haze Meter

5. Instrument is with haze and transmittance measurement software.

10nm wavelength interval 400-700nm wavelength Haze Measurement Instrument / Transmittance Haze Meter

Part 2.Instrument Detail

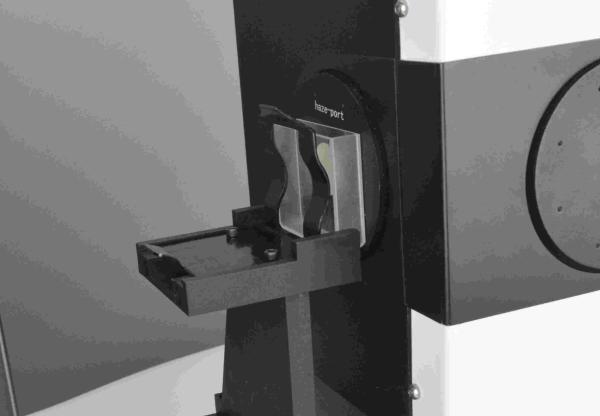

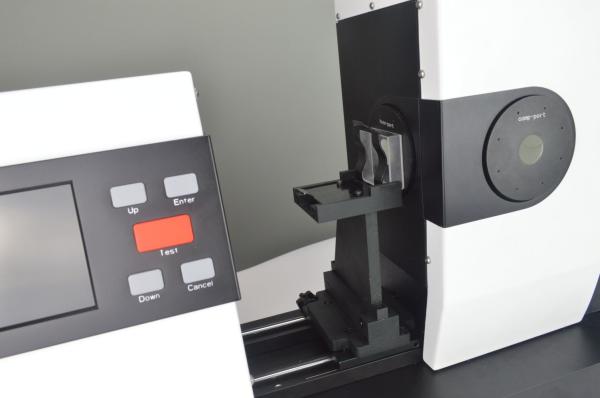

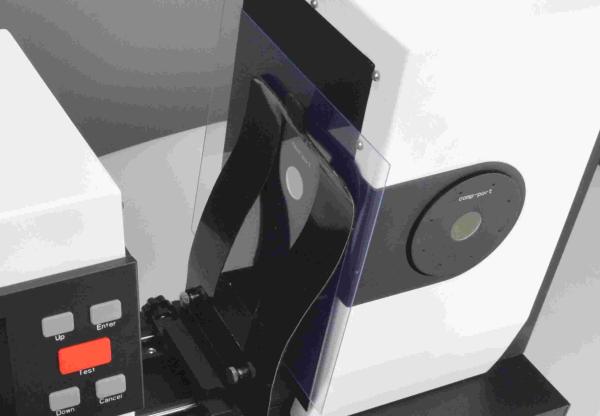

Liquid Measurement Sheet Material Measurement

10nm wavelength interval 400-700nm wavelength Haze Measurement Instrument / Transmittance Haze Meter

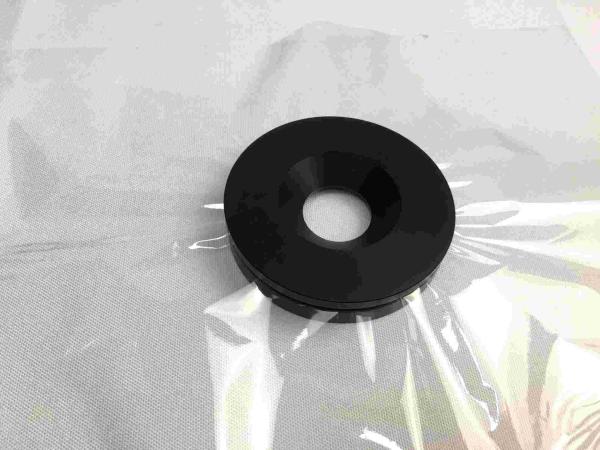

Cap for Compensation Port 0% Calibration Cap

Part 3. Technical Data

Type	Haze Meter CS-700
Light Source	CIE-A,CIE-C,CIE-D65
Standards	ASTM D1003/D1044 ISO13468/ISO14782
Parameters	HAZE,Transmittance(T)
Spectral Response	CIE Luminosity function y
Wavelength	400-700nm
Wavelength Interval	10nm
Geometry	0/d
Measurement Area/Sample Port	16.5mm/21mm
Measurement Range	0-100%
Haze Resolution	0.01
Haze Repeatability	≤0.1
Sample Size	Thickness ≤150mm
Display	5 inch TFT LCD screen
Memory	20000 value
Interface	USB
Power	220V (with power cable)
Working Temperature	10-40 ℃
Storage Temperature	0-50℃
Size (LxWxH)	598mm X 247mm X 366mm
Standard Accessory	PC software (Color QC)
Optional	Measurement Fixture, Haze standard film

Part 4. Application Field

10nm wavelength interval 400-700nm wavelength Haze Measurement Instrument / Transmittance Haze Meter

Part 5. Technical Support

1. One year warranty.
