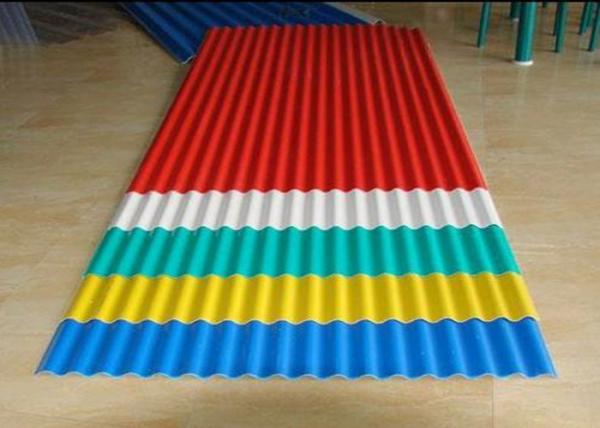

Heat Insulation Corrugated Steel Sheets GI GL PPGI PPGL Base DX51D+Z/AZ
Heat Insulation Corrugated Steel Sheets GI GL PPGI PPGL Base DX51D+Z/AZ
Specifications
Brand Name :
Hanke
Model Number :
SGCC
Certification :
ISO, KS
Place of Origin :
CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
L/C, T/T, etc.
Supply Ability :
300000 per year
Delivery Time :
30-50 days
Packaging Details :
Standard Seaworthy Export package
Products :
pre painted corrugated steel sheet
Zinc :
30g-275g
Color :
Ral System
Thickness :
0.15mm-1.5mm
Grade :
CGCC CGCH DX51D DX51D+AZ G550
Standard :
JISG ASTM GB
Description

Colored Corrugated Steel Sheets GI GL PPGI PPGL Base DX51D+Z/AZ

1. Introduction of base material

Commodity name : colorful steel coil / sheet

Grade:DX51D, SGCC, TDC51D, G550

Quality Certificate: ISO9001, KS D 3520

Standard: JISG3312/ASTM A755M /GBT12754/EN10142

Base Materia: Hot-dipped zinc coated steel coil, Electro-galvanized steel coil

Thickness: 0.2mm-1.5mm

Width: 600mm-1250mm

Zinc coating: 40g-180g

Steel type: normal, drawing, deep drawing.

Coil ID: 508mm, 610mm

Coil Weight: 2.5mt-10mt

Color: grey, white, ivory, red, green ral9002,9003, etc

Surface coating type:PE,SMP,HDP,PVDF

Function: Easy-cleaning, Antistatic, Heat insulation ,etc.

2. Specification

1 products Corrugated roof steel sheet
2 thickness 0.12mm-0.8mm
3 width 686mm-1200mm
4 length 1meter-12meters
5 zinc 40-275gsm
6
 color thickness top: 20-25um
back:5-7um
7 wave height depend on the model of the sheet
8 wave length depend on the model of the sheet
9 package standard export package, by steel pallet
10 Application building material: roof, wall of industrial workshop, warehouse, moving house, container, etc
11 Price terms FOB,CFR,CIF
13 Payment terms T/T.,LC AT SIGHT
14 delivery time UPON THE FINAL QUANTITY YOU DEMAND
15 Remarks Insurance is all risks
MTC will be handed on with shipping documents

We accept the third party certificatation test

3. Mechanical properties of hot dip galvanized substrate

Mechinal properties of steel sheet and steel strip should be in conformity with the stipulations of following table respectively.

Grade Tensile test r90c≥ n90c≤
Yield strength (Mpa) Tensile strength (Mpa) Elongation A80%
DC51D+Z,DC51D+ZF - 270~500 22 - -
DC51D+Z - 270~500 - - -
DC52D+Z,DC52D+ZF 140~300 270~420 26 - -
DC53D+Z,DC53D+ZF 140~260 270~380 30 - -
DC54D+Z 120~220 260~350 36 1.6 0.18
DC54D+ZF 34 1.4 0.18
DC54D+Z ≤260 ≤360 36 - -
DC56D+Z 120~180 260~350 39 1.9d 0.21
DC56D+ZF 37 1.7d,e 0.20e
DC57D+Z 120~170 260~350 41 2.1d 0.22
DC57D+ZF 39 1.9d,e 0.21e

4. Our service:

1) Free sample offered;

2) Flexible payment term with L/C at sight,TT ,ect;

3) Big quantity supply and short delivery time;

4) Stable and reliable quality

5) Long term after-sale service.

HK is keeping on developing new markets. Meanwhile, we pay much attention to brand building and quality improvement of product. All the time, HK has been sticking to the brand conception of “good base zinc, good surface color, and every lay has its value”, insisting on the enterprise principle of “honesty, consideration, and quality”, and continuing to promote HK products from the country to the world .
