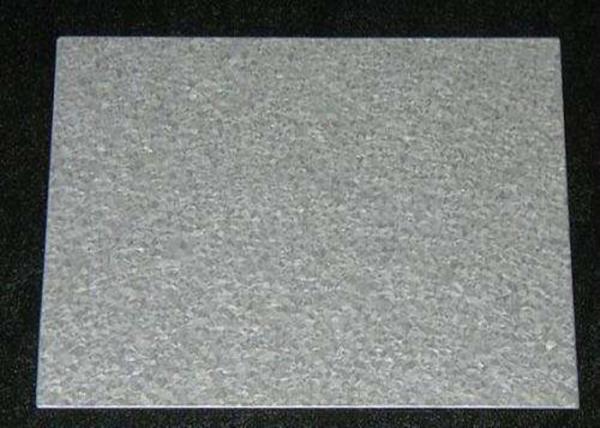

GL Galvalume Steel Coil 55% DX51D+AZ GB For Color Coated Steel Coils Substrate

1. Characteristics of Galvalume

Galvalume is the result of an ideal alloy of aluminum and zinc. It consists of aluminum(55%), zinc(43.4%), and silicone(1.6%).

Characteristics of Galvalume:

1) Corrosion resistence:

At verious enviromental conditions, GL shows better corrosion resistence than GI if the thickness is same, its service life is 2 to 6 times than ordinary galvanized steel. The corrosion resistence in the machining parts is much better than that of hot-dip galvanized due to micro cracks demormation parts of aluminum zinc plate is smaller than hot-dip galvanized.

2) Heat resistence:

GL plate can be used for a long time even if under 315℃.

3) Heat reflective

The reflection coefficient is double than that of hot-dip galvanized steel, which can reduce the inner tempeture in summer

2. Thickness tolerance for hot dip Al-Zn substrate

For steel sheet and steel strip with a specified munimum yield strength less than 260MPa, the thickness tolerance should be in conformity with the following stipulations:

Thickness tolerance for the range of 10m adjacent to steel strip welding seam is allowed to be 50% greater than the soecified figure.

For the sheet and steel strip with a specified minimum yield strength not less than 260MPa, but less than 360MPa, and the grades of DX51D+AZ and S550GD+AZ, the thickness tolerance should be in conformity with the following stipulations:

Thickness tolerance for the range of 10m adjacent to steel strip welding seam is allowed to be 50% greater than the soecified figure.

3. Applications

1) Construction:

Outside: workshop, agricultural warehouse, corrugated roof, wall, retailer booth, roller shutter door, etc.

Inside: door, doorcase, ceiling, elevator, stairway, vent gutter, etc.

2) Electrial Appliance: refrigerator, washer, switch cabinet, desk, bed, micro-wave oven, bread maker

3) Furniture: central heating slice, lampshade, chifforobe, desk, bed, locker, boofshelf

4) Others: writing panel, garbage can, billboard, etc.

4. Packing

Standard Seaworthy Export package including:peripheral anti-rust board, inside anti-rust paper, plastic cannula, latitude strapping, radial srapping, etc.

5. Our service:

1) Free sample offered;

2) Flexible payment term with L/C at sight,TT ,ect;

3) Big quantity supply and short delivery time;

4) Stable and reliable quality

5) Long term after-sale service.
