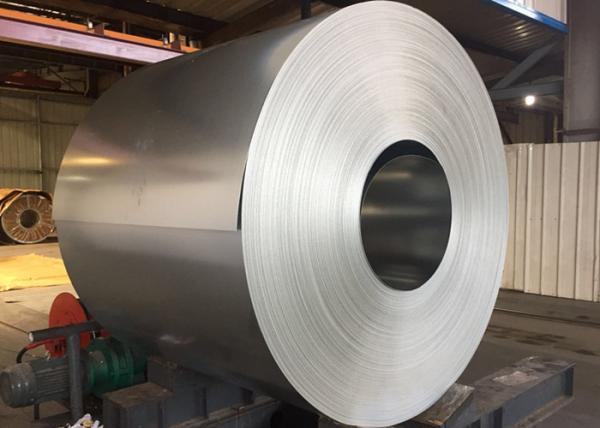

Full Hard Prepainted Steel Coil , PPGI AND PPGL Sheets Thickness Customized
Full Hard Prepainted Steel Coil , PPGI AND PPGL Sheets Thickness Customized
Specifications
Brand Name :
HANKE
Model Number :
DC51D DX51D SGCC ASTM
Certification :
ISO, KS
Place of Origin :
CHINA
MOQ :
negotiate
Price :
negotiate
Payment Terms :
L/C, T/T
Delivery Time :
300000 per year
Packaging Details :
Standard Export package
Product :
High Glossy PPGI / PPGL Sheet
Steel Grade :
TDC51D CGCH CGCC, EN10169, etc.
Size :
(0.2-1.5)mm*914mm/1200mm, etc.
Coated thickness :
Customized
Quality Certificate :
ISO9001 , KS D 3520
Appliance :
Roofing Walls
Coil ID :
508mm and 610mm
Description


Full Hard Prepainted PPGI / PPGL Sheet Steel Coil Export To Myanmar

1. Description


Brief introduction: Using Hot Galvanized Steel Coil as the substrate, color coated steel coil is made by first going through surface pretreatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used including polyester, silicon modified polyester, high-durability, corrosion-resistance and formability.

2. Specification

Name High Glossy PPGI / PPGL Sheet
Grade PPGL CGLCC TDC51D+AZ DC51D+AZ
type of substrate SGCC,SGHC,SGLCC, SPCC, GL,GF,GA,
Thickness 0.18mm-1.2mm
Width 600mm-1250mm (usual size:900mm 914mm 1000mm 1040mm 1200mm 1219mm 1220mm 1250mm)
Inner diameter φ508mm/φ610mm
Coil Weight 3~9 ton
Coating types

Top paint: PVDF,HDP,SMP,PE,PU
Primer paint: Polyurethane, Epoxy, PE
Back paint: Epoxy, Modified polyester
Standard ISO9001-2008 ASTM A653M, JIS G3302,GB/T3830-2006
Three PPGI series Bright color category,excellent performance category,originality category
Color Ral number or customized as per your request
Application Construction ( Such as Public buildings and large industrial plants,storeroom,roof,kiosk), household appliances, solar energy, transportation and other industries.
T Bending

Top coating≤2T
Back coating≤3T
Anti-MEK Wiping ≥100times
Our main products

PPGI , PPGL,Galvanized steel, Galvalume steel, corrugated sheet and other relevant steel products.


3. Performance Of Antistatic PPGI/PPGL

1) Its machining property and durability match that of the PPGI with common polyester as its base metal.
2) Its resistance to chemicals and solvents is slightly higher than that of PPGI with common polyester
3) Its surface resistance (Ω/cm2) is 106-109Ω (PPGI with common polyester: 1013Ω )

4. Applications

1. Constructions: roofing, ceilings, gutters, venting lines, indoor decorations, window frames, etc.
2. Electrical appliances: computer shells, washing machines, refrigerators, dehumidifiers, video recorders, water heaters, etc.
3. Agricultural equipments: troughs, feeding tools, agricultural driers, irrigation channels, etc.
4. Vehicle parts: back-seat plates of buses and trucks, conveying systems, oil tanks, etc.


5. Quality Assurance

We expect to accomplish ideal quality in our offered services. Our offered services are rendered by our profoundly talented experts by taking after the rules on quality set around industry. Keeping in mind the end goal to guarantee perfect quality, we utilize high grade material. Our services are profoundly refreshing for their features like convenient execution, bother free administration and expense viability. The quality is the most extreme variable, which separates us from our partners in the business.

6. Our service:


1) Free sample offered;
2) Flexible payment term with L/C at sight,TT ,ect;
3) Big quantity supply and short delivery time;
4) Stable and reliable quality
5) Long term after-sale service.
