Pre Painted Steel Sheet / Aluzinc Steel Sheet EN 10169 Hot And Cold Rolled
Pre Painted Steel Sheet / Aluzinc Steel Sheet EN 10169 Hot And Cold Rolled
Specifications
Brand Name :
Hanke
Model Number :
DX51D, SGCC
Certification :
ISO, KS
Place of Origin :
CHINA
MOQ :
25MT per size
Price :
Negotiate
Payment Terms :
L/C, T/T,etc.
Supply Ability :
300000 per year
Delivery Time :
30-50 days
Packaging Details :
Standard Seaworthy Export package
Product :
Pre Painted Aluminum Coil
Grade :
DX51D TDC51D CGCC CGCH G550
Size :
Thickness 0.18-1.5mm * Width 600-1250mm
Color :
Dark Blue Orange Green Ivory Grey Yellow RAL syatem
Zinc :
40g-180g
Painting :
PE SMP PVDF
Description

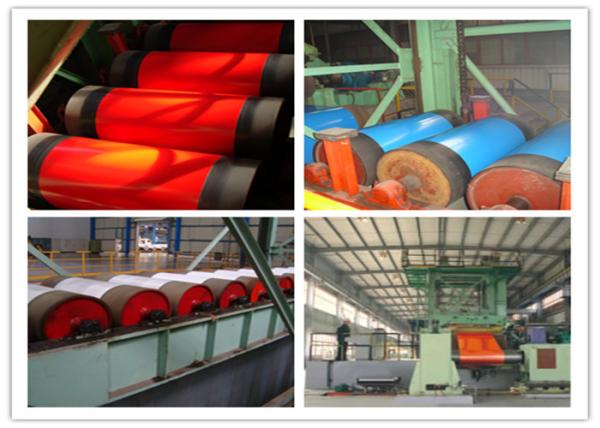

EN 10169 Prepainted PPGL Steel Coil Hot And Cold Rolled In Coil

1. Definition

GL is more popular in recent years, especially popular in Southeast of Asia due to the merits of PPGL, which suitable for the enviroment there well.

Color coated steel plate is made generally by roll coating a layer on the substrate or bonding organic film and then baking into final plate. The color coated steel plate can be processed further in finished products. It is also called as "prepainted steel sheet".

2. Specification

Name PPGL Grade TDC51D+AZ CGCC CGCH G550
Standard JIS G3322 CGLCC ASTM A755 CS-B Surface coating color RAL colors
Back side coating color Light grey ,white and so on
Type of coating process Front: double coated&double drying. Back: double coated&double drying, single-coated&double drying
Type of substrate hot dipped galvanzied, galvalume, zinc alloy, cold rolled steel, aluminum
Thickness 0.18-1.2mm Width 600-1250mm
Coil Weight 3-9Tons Inside Diameter 508mm Or 610mm
Zinc Coating Z40-Z275G Painting Top: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um
Coating introduction Top paint: PVDF, HDP, SMP, PE, PU
Prime paint: Polyurethane, Epoxy, PE
Back paint: Epoxy, Modified polyester
Color Brand KCC NIPPON TWIN TIGERS AKEZON

3. Process of Prepainted Steel Coil :

Pay off reel-double cut shear-jonter-pre cleaning section-dryer-entry accumulation-cleaning section-chemical coater-chemical oven-primer coater-prime oven-prime coater cooling unit-dryer-finish coater-finish oven-finish coater cooling unit-dryer-tension leveler-exit accumulator-exit shear-tension reel

4. Our service:

1) Free sample offered;

2) Flexible payment term with L/C at sight,TT ,ect;

3) Big quantity supply and short delivery time;

4) Stable and reliable quality

5) Long term after-sale service.

5. Process of enquiry and order

Please offer the details as following when enquiry and ordering:
Name of product
Technical standard
Weight of coating
Surface treatment
Specifications
Allowance of size
Coil weight
Quantity
Purpose
Packing method
Date of delivery
