Paint Paper Digital Gloss Meter NHG268 20° 60° 85° Degree Touch Screen Operation
Paint Paper Digital Gloss Meter NHG268 20° 60° 85° Degree Touch Screen Operation
Paint Paper Digital Gloss Meter NHG268 20° 60° 85° Degree Touch Screen Operation
Paint Paper Digital Gloss Meter NHG268 20° 60° 85° Degree Touch Screen Operation
Paint Paper Digital Gloss Meter NHG268 20° 60° 85° Degree Touch Screen Operation
Paint Paper Digital Gloss Meter NHG268 20° 60° 85° Degree Touch Screen Operation
Paint Paper Digital Gloss Meter NHG268 20° 60° 85° Degree Touch Screen Operation
Paint Paper Digital Gloss Meter NHG268 20° 60° 85° Degree Touch Screen Operation
Specifications
Brand Name :
3nh
Model Number :
NHG268
Certification :
CE / ROHS / TUV / ISO9001:2015
Place of Origin :
P.R.China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal,, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
1 working day
Packaging Details :
Packed in Alumimum box firstly, and then reinforced with carton box for outer packing
Measuring Angle :
20°/60°/85°
Measuring Area (mm) :
20°: 10x10 60°: 9x15 85°: 5x36
Measuring Range :
20°:0~2000GU 60°:0~1000GU 85°：0~160GU
Division Value :
0.1GU
Measurement Range :
0-10GU 10-100GU 100-2000GU
Repeatability :
± 0.1GU ± 0.2GU ± 0.2%GU
Description

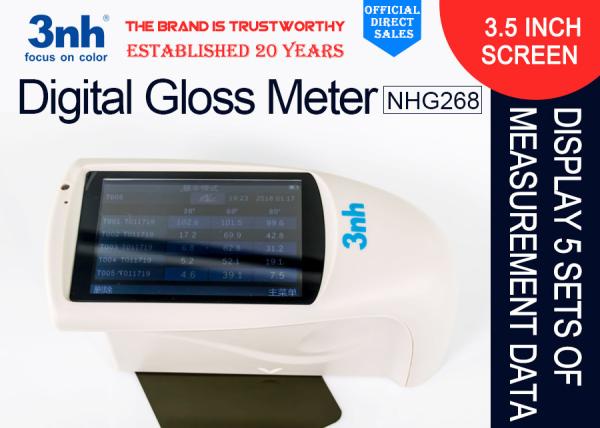

Paint Paper Digital Gloss Meter NHG268 20° 60° 85° Degree Touch Screen Operation

Product Description

1.Brief Introduction of Digital Gloss meter NHG268

1) NHG268 Multi-angle Precise Gloss Meter
NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

NHG268 gloss meter can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

2) Advantages of Digital Gloss meter NHG268

1. 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand

2. One button for all angles measurement at the same location

3. Display 5 sets of measurement data, good for comparison

4. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

5. Continuous mode to check uniformity over large areas

6. Connect to PC, more extend functions

7. Input gloss value manually

8. Large touch screen operation, easy to use

9. Beauty appearance, good man-machine communication interface

10. Powerful functions to meet many different requirements

11. Large storage to save over 5000 data

12. Built-in lithium ion rechargeable battery.

3) Application for Digital Gloss meter NHG268

Paint,Paper,ink,Plastic,film,Bamboo,flooring,Stainless steel,Aluminum oxidation,Stone,Ceramic tile,Leatherwear...

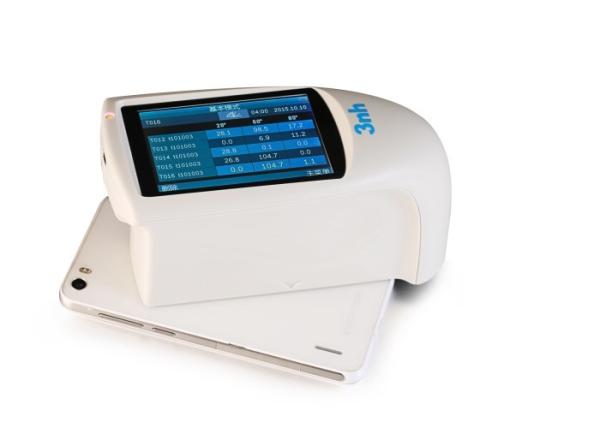

4) More pictures for Digital Gloss meter NHG268

Paint Paper Digital Gloss Meter NHG268 20° 60° 85° Degree Touch Screen Operation

Paint Paper Digital Gloss Meter NHG268 20° 60° 85° Degree Touch Screen Operation

Paint Paper Digital Gloss Meter NHG268 20° 60° 85° Degree Touch Screen Operation

5) Specifications for Digital Gloss meter NHG268

Model: NHG268
Measuring Angle 20°/60°/85°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm) 20°: 10x10 60°: 9x15 85°: 5x36
Measuring Range 20°:0~2000GU 60°:0~1000GU 85°:0~160GU
Division Value 0.1GU
Measurement Range 0-10GU 10-100GU 100-2000GU
Repeatability ± 0.1GU ± 0.2GU ± 0.2%GU
Reproducibility ± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.2 , ± 1.2%
Measuring Time 1.0s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3200mAh Li-ion Battery ,>10000 times(within 8 hours)
Display TFT 3.5 inch, capacitive touch screen
Interface USB/RS-232
Storage Basic mode: 1000; Statistical Mode: 5000,Continuous mode : 5000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.
6) Certification for our Digital Gloss meter NHG268

Paint Paper Digital Gloss Meter NHG268 20° 60° 85° Degree Touch Screen Operation

Packaging & Shipping
Packing Material : Nylon box with carton box
Packing Size 29*19*10CM
Packing Weight:1KG
Delivery time: Within 1 working day after payment received.

How to choose gloss meter angle ?

How to choose gloss meter angle ? For early contact with the gloss meter reader is a more confused proposition, it comes out a lot when searching on the Internet. There is single-angle gloss meter, three-angle gloss meter, a 45-degree gloss meter, a 60-degree gloss meter, so which gloss meter is suitable for us to use it?

In general, gloss meter has 20 °, 45 °, 60 °, 75 °and 85 °specifications. Then how to choose gloss meter angles ? If our customers required us what angle gloss meter to measure the gloss data then we need choose according to the customer's request.

If the customer didn’t specify what angle, it can choose 60 °general version gloss meter, 20 °angle meter is generally used in the gloss products higher than 70Gu, 85 °angle is generally used in gloss products less than 10 °, 45 °And 75 °angles used less, 45 °gloss meter is mainly used for the surface gloss measurement of plastic film, 75 °gloss meter is mainly used for enamel surface gloss measurement.

Gloss Range 60° Value Notes
High Gloss >70 GU If measurement exceeds 70 GU, change test setup to 20°
Medium Gloss 10 - 70 GU

If measurement during 10- 70 GU, change test setup to 60°
Low Gloss <10 GU If measurement is less than 10 GU, change test setup to 85°

Warranty

All color spectrophotometer and colorimeters have one year warranty from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
