Stainless Steel Floor Gloss Measurement Instruments , HG268 Tri Gloss Meter 0.1s Measuring Time

Product Description

1. Brief Introduction of Digital Gloss Measurement Instruments HG268

1) HG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

HG268 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.

2) Features

1. 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand

2. Concise appearance, feel good

3. Display 5 sets of measurement data, good for comparison

4. Built-in lithium ion rechargeable battery

5. Basic model measurement can meet basic glossiness testing requirements

6. Connect to PC, more extend functions

7. One button for all angles measurement at the same location

8. Comply with international standards

9. Stable performance, easy to read data.

3) Application for Digital Gloss Measurement Instruments HG268

Paint,Paper,ink,Plastic,film,Bamboo,flooring,Stainless steel,Aluminum oxidation,Stone,Ceramic tile,Leatherwear...

4)Specifications for Digital Gloss meter HG268

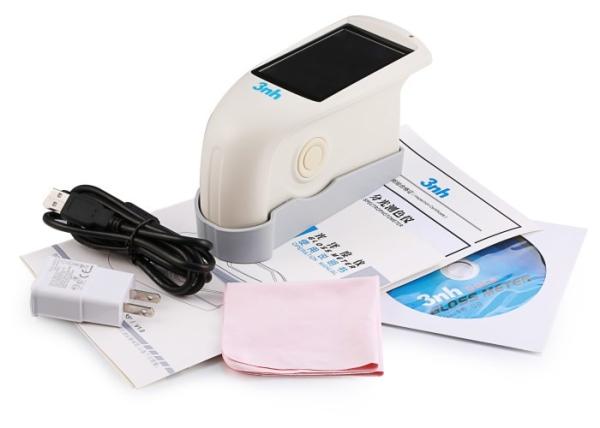

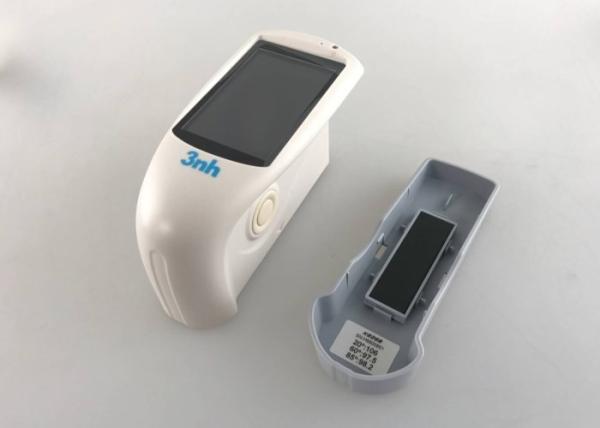

5) More pictures for Digital Gloss meter HG268

Packaging & Shipping
Packing Material : Nylon box with carton box
Packing Size 29*19*10CM
Packing Weight:1KG
Delivery time: Within 1 working day after payment received.

How many different angles shall we have for gloss meter?

High Gloss - 20 or micro-gloss 20
A smooth and highly polished surfaces reflect images distinctly. The incident light is directly reflected on the surface, i.e. only in the main direction of reflection. The angle of incidence is equal to the angle of reflection.

Semi Gloss - 60 or micro-gloss 60
On rough surfaces the light is diffusely scattered in all directions. The image forming qualities are diminished: A reflected object does no longer appear brilliant, but blurred.
The more uniform the light is scattered, the less intense is the reflection in the main direction and the duller the surface will appear. We have several models with 60 degree, such as NHG60, HG60, etc.

High and Semi Gloss - 60/20
One Gloss meter does double work.
Low Gloss or Mat - 85 or micro-gloss 85
On very rough surfaces the light is diffusely scattered in all directions. The image forming qualities are much diminished: A reflected object no longer appears brilliant, but almost non-existent.

Measure all three modes - TRI-gloss (20/60/85)
When one requires measuring all three types of surfaces described above, we have two gloss meters that simultaneously measures all three geometries. They are NHG268 and HG268 with 20/60/85.

Warranty

All color spectrophotometer and colorimeters have one year warranty from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
