3nh Economic Gloss Measurement Instruments Aluminum Oxidation Stone Gloss Meter HG60

Specifications

Brand Name :

3nh

Model Number :

HG60

Certification :

CE / ROHS / TUV / ISO9001:2015

Place of Origin :

P.R.China

MOQ :

1pcs

Price :

Negotiable

Payment Terms :

T/T, Paypal, Western Union

Supply Ability :

5000pcs per month

Delivery Time :

1 working day

Packaging Details :

Packed in Nylon box firstly, and then reinforced with carton box for outer packing

Measuring Angle :

60°

Measuring Range :

0~1000GU

Division Value :

0.1GU

Measurement Range :

0-10GU 10-100GU 100-2000GU

Tolerance :

±1.5, ± 1.5%

Display Size :

TFT 3.5"

Description

3nh Economic Gloss Measurement Instruments Aluminum Oxidation Stone Gloss Meter HG60

Product Description

1. Brief Introduction of Digital Gloss meter HG60

1) 3nh HG60 single-angle economical Gloss Measurement Instruments , whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.

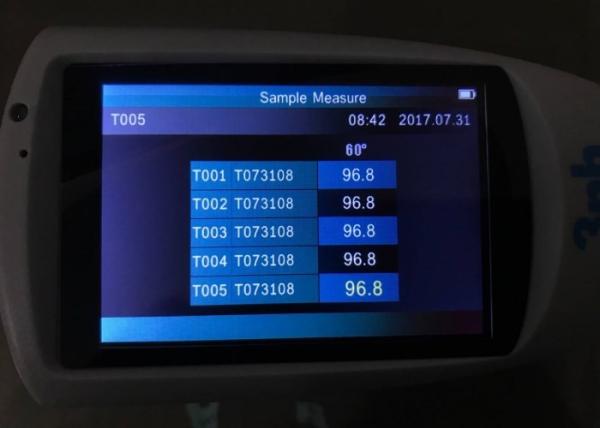

As the whole world's first model of glossmeter with a ultra-large display, HG60 features the accurate measurement, simple operation and stable performance. 5 groups of data can be displayed on screen simultaneously, easy to compare. The standard data value can also be manually input.

HG60 provides one measuring mode: Basic Mode, meeting the requirements of simple sample measurement.

2) Features

1. 60° angle for semi gloss

2. Concise appearance, feel good

3. Display 5 sets of measurement data, good for comparison

4. Built-in lithium ion rechargeable battery

5. Basic model measurement can meet basic glossiness testing requirements

6. Connect to PC, more extend functions

7. One button for all angles measurement at the same location

8. Comply with international standards

9. Stable performance, easy to read data.

3)Specifications for Digital Gloss Measurement Instruments HG60

Model	HG60
Measuring Angle	60°, Comply with Standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area	9x15mm
Measuring Range	0~1000GU
Division Value	0.1GU
Measurement Range Repeatability Reproducibility	0-10GU 10-100GU 100-2000GU
	± 0.1GU ± 0.2GU ± 0.2%GU
	± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard	Conform to the Working Requirements for JJG696 First Class Glossmeter
Chromaticity Response	Corresponding with CIE 1931(2°) under CIE C Light Source
Tolerance	±1.5, ± 1.5%
Measuring Time	0.1s
Display Size	TFT 3.5"
Touch-Screen	No
Data Port	USB & RS232
Language	Chinese/English
Battery	3200mAh Li-ion Battery , >10000 times(within 8 hours)
Dimension	1607590mm
Weight	350g
Storage	Basic Mode: 1000
Software	GQC6 Quality Control Software with QC Report Printing Functions and More Extended Functions.
Operation Temperature	0~40℃(32~104℉)
Storage Temperature	-20~50℃(-4~122℉)
Humidity	<85% Relative Humidity, No Condensation
Standard Accessories	Power Adapter, USB Cable, User Manual, CD (Including QC Software), Calibration Plate
Optional Accessories	Miniature Printer

GQC6 Software Introduction:

GQC6 software is used with 3nh gloss meter for PC connection, measurement, data management, data export, print reports, etc.

4)Application for Digital Gloss meter HG60

Paint,Paper,ink,Plastic,film,Bamboo,flooring,Stainless steel,Aluminum oxidation,Stone,Ceramic tile,Leatherwear...
