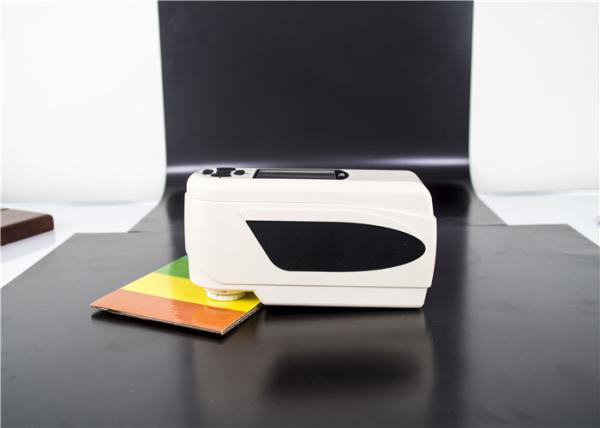

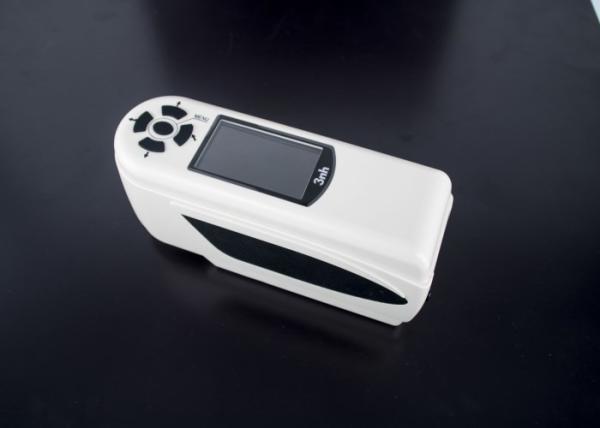

NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter
NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter
NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter
NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter
NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter
NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter
NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter
NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter
Specifications
Brand Name :
3nh
Model Number :
NH310
Certification :
CE / ROHS / TUV / ISO9001:2015
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
1 working day
Packaging Details :
Packed in Alumimum box firstly, and then reinforced with carton box for outer packing,Carton Size:40.5*20.9*31.9cm
Light Sources Type :
D65, A, D50
Illuminating/Viewing Geometry :
8°/D (8° illumination, diffused viewing angle)
Integrating Sphere :
Non
Locating Method :
Camera Viewfinder Locating & Illumination Locating
Inter-Instruments Error :
ΔE*ab≤0.4
Color Space :
CIE L*a*b, CIE XYZ, CIE RGB, CIEL*u*v, CIE*C*H,
Description

NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

Brief Introduction

NH310 is a mainstream brand Portable Spectrophotometer Colorimeter introduced by 3nh which has synthesized the advantages of ten more traditional imported colorimetersand has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!

Applications

Nowadays, color management instruments, like Portable Spectrophotometer Colorimeter have been widely applied to industries like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc. And also, schools and laboratories need the color measuring instruments to teach and study.

NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

Parameters

NH310 Precise Colorimeter

Model Number

NH310

Illuminating/Viewing Geometry

8°/D (8° illumination, diffused viewing angle)

Measuring Aperture

Φ8mm&4mm

Integrating Sphere

Non

Locating Method

Camera Viewfinder Locating & Illumination Locating

Repetitive Error

Standard deviation ΔE*ab≤0.06 (Measurement Conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)

Inter-Instruments Error

ΔE*ab≤0.4

Wavelength Range

Non

Wavelength Pitch

Non

Reflectance Range

Non

Color Space

CIE L*a*b, CIE XYZ, CIE RGB, CIEL*u*v, CIE*C*H,
Whiteness&Yellowness, Color Fastness

Color Difference Formula

ΔE*ab, ΔL*ab, ΔE*C*H, ΔECIE94, ΔEHunter

Display Data

Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation

Other Chromaticity Data

Non

Observer Angle

10°

Light Sources Type

D65, A, D50

Light Source Device

LED Blue Light Excitation

Light Source Life

5 years, More than 1.6 million measurements

Sensor

Silicon Photoelectric Diode Array

Measuring Time

1.5s

Data Storage

100 Standards, 20000 Samples

Data Port

USB

Display Size

TFT 2.8"

Touch-Screen

Non

Operating Temperature

0~40℃ (32℉~104℉)

Storage Temperature

-20℃~50℃ (-4℉~122℉)

Humidity

0~85%, No condensation

PC Software

CQCS3

Weight

500g

Dimension

205*70*100mm

Battery

Large Capacity Li-ion Battery

Standard Accessory

Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White Calibration Plate, Φ8mm and Φ4mm Measuring Aperture

Optional Accessory

Extended Aperture(Φ8mm), Universal Test Components, Micro-Printer, Powder Test Box

Certificates

CE & RoHS & TUV & FCC & ISO9001

Photos

NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

Main Features

The repeatable accuracy of NH310 is: DE<0.08.
NH310 adopts a wide range of innovative technologies:
1. Both camera locating and illumination locating
2. Built-in standard white calibration plate; Automatic calibration at startup
3. Optional 8mm extended aperture, available for measuring concave surface
4. Configuring 8mm & 4mm apertures which can measure colors of any item

Calibration Board

Name: Calibration Board

Brand: 3nh

NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

Original: China

used for colorimeter calibration

CQCS3 Color Quality Control System

Name: CQCS3 Color Quality Control SystemBrand: 3nhOriginal: China


CQCS3 can make color difference analysis, color difference cumulative analysis, color sample database management, chromaticity index analysis, simulated object color and print, etc. It is the right-hand man of color quality management.

NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

Measuring aperture

Name: measuring aperture
Brand:

3nh
Original: Chinafix it on the instrument and used to measure the surface.

Measuring aperture protective lid

Used to protect measuring aperture from dirt, water etc.

NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

Mini printer(choosing parts)

This mini printer can connect to any model colorimeter and spectrophotometer of 3nh brand and it can print test results without the computer.

Size: 180*110*90mm

Paper size: 57mm
Accessory: power adaptor, usb cable

Universal Test Components(choosing parts)

Name: Universal Test Components
Brand: 3nh

Original: China
Features: Powerful accessory with high sensitivity which is used to measure liquid, paste and powder.

NH310 CIE LAB Portable Spectrophotometer Colorimeter 8mm 4mm Aperture Color Analysis Chroma meter

FAQ


1: Q: Is your company accept customization?
A: We accept OEM/ ODM. Any color and any logo is welcome if placed at least 10pcs.

2: Q:Does your products have warranty?
A: YES, We offer 1 year warranty. Our policy: Is there any quality problem, First, send the defective machine to us and you bear the freight. Second, we send back to you free after fixed.

3: Q: After an order placed, when to deliver?
A: It depends on whether we are in stock or not. If we are, generally we can arrange shipment in 1 days after payment. If not, it will be decided by factory production.

4: Q: How to place an order?
A: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price and freight and other details
d: finish the payment
e: we arrange the shipment
f: you got your products
