NH300 Portable Spectrophotometer Colorimeter Plastic Particle Laboratory Colour Measure Instrument
Plastics have changed the course of human history. From cars, to film, to electrification, plastics have been essential to the development of revolutionary products and have shaped the way we live, work, and play.Renowned for their durability, longevity, and versatility, plastics are now integrated into a virtually endless number of industrial and consumer goods.
Part of what makes plastics so attractive has been their ability to take on a broad spectrum of hues. Indeed, the color of plastics is vital to ensuring both aesthetic appeal and practical functionality.As such, color accuracy and consistency are among the most important aspects of plastic manufacturing, and spectrophotometers must therefore play a central role in the production process.
Product Description
Brief Introduction
3nh high-quality Portable Spectrophotometer Colorimeter NH300 has adopted multi-channel color sensors of international brands, more stable IC platform as well as efficient and accurate algorithms to provide users with accurate and fast color management and application. NH300 is also designed with ergonomics and humanized operation and it has applied for a number of patents. NH300 is a multifunctional colorimeter with high quality and competitive price. 3nh insists on independent research whose technology innovation is unique in color management field. NH300 is the most convenient colorimeter for users.
Product Application
NH300 Portable Spectrophotometer Colorimeter is widely used in industries like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garments, textiles and traffic signage, etc. And also, schools and laboratories need the color measuring instruments to teach and study.
Technical Details
NH300 Precise Colorimeter | |||
Model Number | NH300 | ||
Illuminating/Viewing Geometry | 8°/D (8° illumination, diffused viewing angle) | ||
Measuring Aperture | Φ8mm | ||
Integrating Sphere | Non | ||
Locating Method | Illumination Locating | ||
Repetitive Error | Standard deviation ΔE*ab≤0.07 (Measurement Conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration performed.) | ||
Inter-Instruments Error | ΔE*ab≤0.4 | ||
Wavelength Range | Non | ||
Wavelength Pitch | Non | ||
Reflectance Range | Non | ||
Color Space | CIE L*a*b*C*H*, CIE L*a*b, CIE XYZ | ||
Color Difference Formula | ΔE*ab, ΔL*a*b, ΔE*C*H | ||
Display Data | Colorimetric Value, PASS/FAIL Result | ||
Other Chromaticity Data | Non | ||
Observer Angle | 10° | ||
Light Sources Type | D65 | ||
Light Source Device | LED Blue Light Excitation | ||
Light Source Life | 5 years, More than 1.6 million measurements | ||
Sensor | Silicon Photoelectric Diode Array | ||
Measuring Time | 1.5s | ||
Data Storage | 100 Standards, 20000 Samples | ||
Data Port | USB | ||
Display Size | TFT 2.8" | ||
Touch-Screen | Non | ||
Operating Temperature | 0~40℃ (32℉~104℉) | ||
Storage Temperature | -20℃~50℃ (-4℉~122℉) | ||
Humidity | 0~85%, No condensation | ||
PC Software | CQCS3 | ||
Weight | 500g | ||
Dimension | 205*70*100mm | ||
Battery | Large Capacity Li-ion Battery | ||
Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White Calibration Plate, Φ8mm Measuring Aperture | ||
Optional Accessory | Universal Test Components, Micro-Printer, Powder Test Box | ||
Certificates | CE & RoHS & TUV & FCC & ISO9001 |

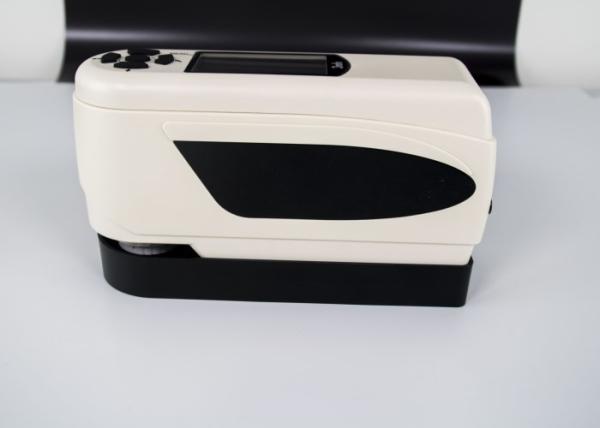

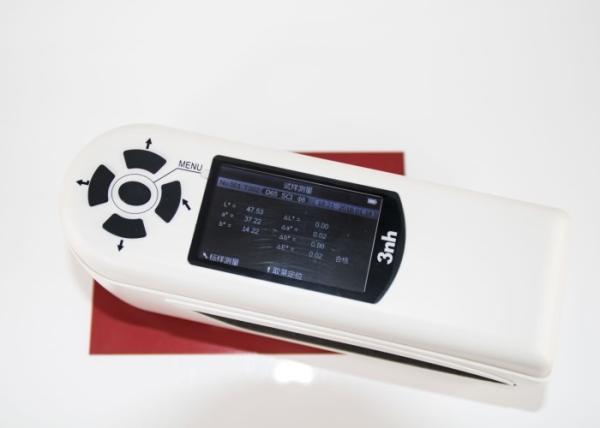

Photos
About 3nh
Shenzhen Threenh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
3nh cherishes talents, focuses on talents. Company brings together many of high-level, high educated professionals. Among them, undergraduate academic staffs of the total number of company accounted for more than 80%; postgraduate staffs of the total number of company accounted for 30%. It involves the fields of photometry, electronic circuit, embedded system, photoelectric detection, mechanical structure design, optical design, application software, lighting technology electronic commerce and internet. 3nh team has strong capability to design, develop and produce on its own. The company has a large number of innovation patents, core technologies and intellectual property rights of 3nh products.
3nh adheres to “people-oriented, customer first, technological innovation, sustainable development” business philosophy to meet customer demand continuously, to create value for customers and to achieve win-win situation and common development.
