Specifications
Brand Name :
3nh
Model Number :
YG60
Certification :
CE,FCC,Rohs,TUV,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000pcs/month
Delivery Time :
1 working day
Packaging Details :
Packed in Alumimum box firstly, and then reinforced with carton box for outer packing
Measuring Angle :
60°
Measuring Range :
60°: 0~1000GU
Measuring Modes :
Basic mode; Statistic mode; Continuous mode; QC mode
Interface :
USB
Repeatability :
100~1000GU:±0.2%GU
Display :
2.3 inch white and black screen
Description

India economic gloss meter YG60 Accurate digital gloss meter for Protective and Marine Coatings

Universal 60 degree gloss tester makes measurement simpler


Commonly used in the market is a general-purpose 60-degree gloss meter. It can be applied to paints, inks, wood, marble, granite, polished tile ceramic tiles, plastics, paper, etc. It looks like a small instrument. With such powerful features, measurement is easier.


The universal 60-degree gloss meter can be applied to many industries such as paints, inks, lacquers, wood products, marble, granite, polished tiles, ceramic tiles, plastics, paper, etc. This powerful feature makes measurement easier.


3nh gloss meter, there are indeed many very good places: small size, high precision, good repeatability, can print test reports, etc., not only can achieve single measurement, multiple measurements, but also can achieve average measurement.


The pursuit of excellence in customer experience has always been our goal, 3nh universal 60 degree gloss meter will be a perfect upgrade of the domestic gloss meter, more exciting, so stay tuned!

Brief Introduction


YG60 60° digital gloss meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.

YG series gloss meter also features with USB/RS-232 interface and Bluetooth 2.1 dual mode, with PC software for quality report, more extend functions.

YG60 Applications


YG60 digital gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, marble, varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.

YG60 Accurate Digital Gloss Meter USB Interface For Protective / Marine Coatings

Highlights


1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.


Specifications


Model YG60 Accurate gloss meter
Measuring Angle 60°
Measuring Area 60°:9X15
Measuring Range 60°: 0~1000GU
Division Value 0.1GU
Measuring Modes Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time 0.5S
Repeatability 0~100GU:±0.2GU ;
100~1000GU:±0.2%GU
Accurate Conform with JJG696 first grade requirements of gloss meter
Auto Power-off Time Within 30s-120s
Long-time Calibration Automatically check and made the calibration
Language Chinese & English
Storage 35000(Basic mode &Statistic mode : 15000; Continuous mode : 10000; QC mode: 10000)
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface USB
PC Software GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range 0-40℃(32-104° F)
Storage Temperature Range (-20-50℃)(-4-122° F)
Humidity Range < 85% RH, without condensation
Standard Accessories USB cable, user manual, calibration plate, QC software
Optional Accessories Miniature printer
Notification: the technical parameter is only for reference

GQC6 Software Introduction


YG60 Accurate Digital Gloss Meter USB Interface For Protective / Marine Coatings

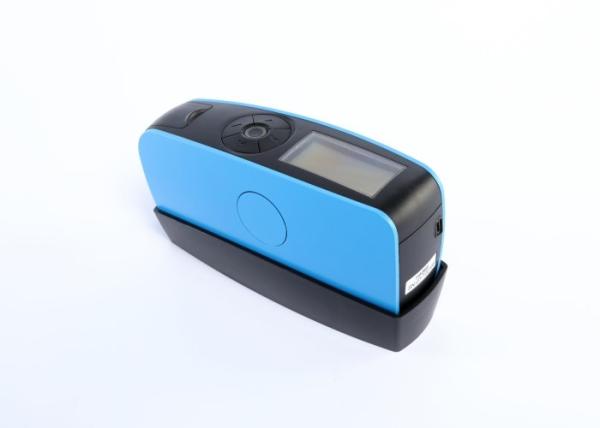

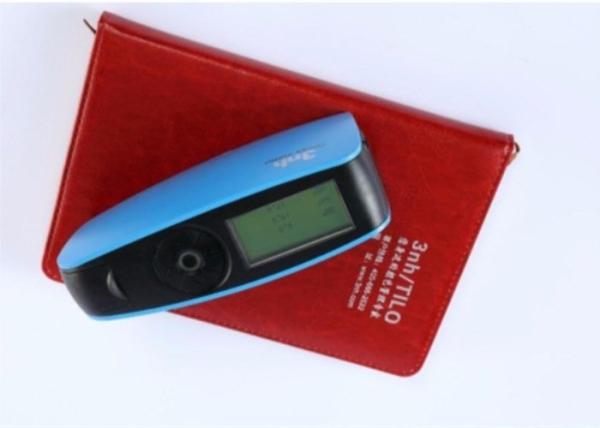

Product Details


YG60 Accurate Digital Gloss Meter USB Interface For Protective / Marine Coatings

YG60 Accurate Digital Gloss Meter USB Interface For Protective / Marine Coatings

YG60 Accurate Digital Gloss Meter USB Interface For Protective / Marine Coatings

Certificate


YG60 Accurate Digital Gloss Meter USB Interface For Protective / Marine Coatings
