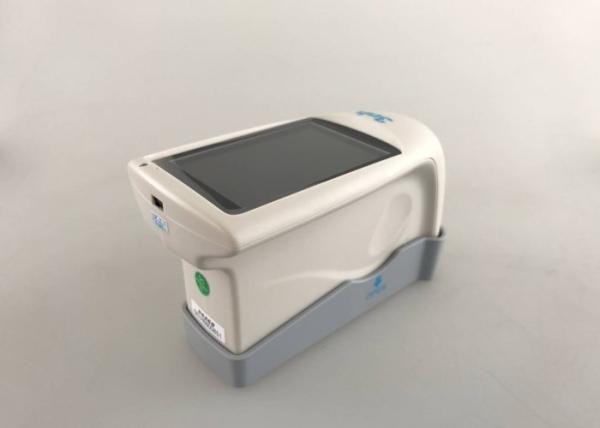

20°/60°/85° Digital Paint Gloss Meter HG268 Printing Plastic Film Gloss Measurement Instrument
20°/60°/85° Digital Paint Gloss Meter HG268 Printing Plastic Film Gloss Measurement Instrument
20°/60°/85° Digital Paint Gloss Meter HG268 Printing Plastic Film Gloss Measurement Instrument
20°/60°/85° Digital Paint Gloss Meter HG268 Printing Plastic Film Gloss Measurement Instrument
20°/60°/85° Digital Paint Gloss Meter HG268 Printing Plastic Film Gloss Measurement Instrument
20°/60°/85° Digital Paint Gloss Meter HG268 Printing Plastic Film Gloss Measurement Instrument
20°/60°/85° Digital Paint Gloss Meter HG268 Printing Plastic Film Gloss Measurement Instrument
20°/60°/85° Digital Paint Gloss Meter HG268 Printing Plastic Film Gloss Measurement Instrument
Specifications
Brand Name :
3nh
Model Number :
HG268
Certification :
CE,FCC,Rohs,TUV,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000pcs/month
Delivery Time :
1 working day
Packaging Details :
Packed in Alumimum box firstly, and then reinforced with carton box for outer packing
Measuring Angle :
20° 60°85°
Repeatability :
± 0.1GU ± 0.2GU ± 0.2%GU
Division Value :
0.1GU
Errors :
±1.5 , ± 1.5%
Language :
Chinese/English
Dimension :
L*W*H : 160mm*75mm*90mm
Description

20°/60°/85° Digital Paint Gloss Meter HG268 Printing Plastic Film Gloss Measurement Instrument

Brief Introduction

HG268 Digital Paint Gloss Meter features with 20, 60 and 85°angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



Highlights

1. 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand

2. Concise appearance, feel good

3. Display 5 sets of measurement data, good for comparison

4. Built-in lithium ion rechargeable battery

5. Basic model measurement can meet basic glossiness testing requirements

6. Connect to PC, more extend functions

7. One button for all angles measurement at the same location

8. Comply with international standards

9. Stable performance, easy to read data.


Specification

HG268 Tri-angle Gloss Meter
Model: HG268
Measuring Angle 20°/60°/85°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm) 20°: 10x10 60°: 9x15 85°: 5x36
Measuring Range 20°:0~1000GU 60°:0~1000GU 85°:0~160GU
Division Value 0.1GU
Measurement Range 0-10GU 10-100GU 100-1000GU
Repeatability ± 0.1GU ± 0.2GU ± 0.2%GU
Reproducibility ± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.5 , ± 1.5%
Measuring Time 0.1s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3200mAh Li-ion Battery ,>10000 times(within 8 hours)
Display TFT 3.5 inch
Interface USB/RS-232
Storage Basic mode: 1000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.

Application


3nh gloss meter is widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.

20°/60°/85° Digital Paint Gloss Meter HG268 Printing Plastic Film Gloss Measurement Instrument

GQC6 Software Introduction

20°/60°/85° Digital Paint Gloss Meter HG268 Printing Plastic Film Gloss Measurement Instrument


Product Details

20°/60°/85° Digital Paint Gloss Meter HG268 Printing Plastic Film Gloss Measurement Instrument

Warranty

All our products have one year warranty except consumables from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
