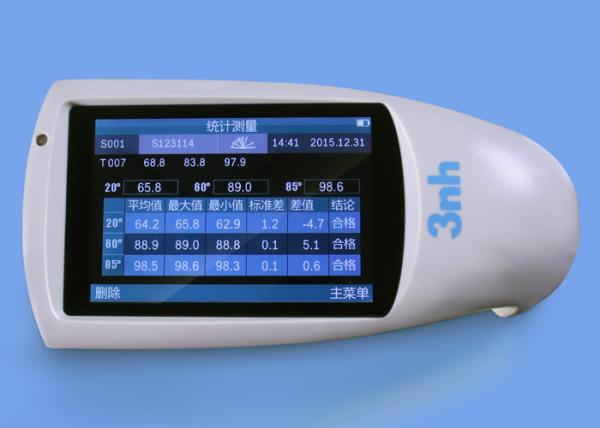

NHG60M Small Aperture Paint film Digital Gloss Meter 60° Measure Angle With Large Storage

Metallic luster is one of the grades of gloss intensity. The gloss reflected by the surface after metal polishing is like the gloss of a smooth metal surface. The reflection is extremely strong, juxtaposed with non-metallic luster and semi-metallic luster. There are many applications for metallic luster such as metallic gloss glaze and metallic gloss printing.

Metallic gloss glaze refers to a glaze (pigment) that looks like a metal. It is widely used in the production of glazed tiles (the surface of which is glazed by high temperature and high pressure firing) and the production of exterior wall tiles. When a building is paved with metallic luster glazes of different colors, the building will be very beautiful.

Metallic gloss printing refers to printing with gold and silver ink and hot stamping with anodized aluminum material, so that the printing material has a shiny metallic luster. This kind of printing material gives a gorgeous and rich feeling, and is mostly used for product packaging and product beautification. .

For these items with metallic luster, the 3nh metallic Digital Gloss Meter can be used to detect the gloss of the surface.

Brief Introduction

NHG60M gloss meter adopts small aperture 1.5*2mm, with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

NHG60M gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

Advantages

1. Small aperture: 1.5*2mm

2. 60° angle for semi gloss

3. Display 5 sets of measurement data, good for comparison

4. Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

5. Continuous mode to check uniformity over large areas

6. Connect to PC, more extend functions

7. Input gloss value manually

8. Large touch screen operation, easy to use

9. Beauty appearance, good man-machine communication interface

10. Powerful functions to meet many different requirements

11. Large storage to save over 5000 data

12. Built-in lithium ion rechargeable battery.

Specifications

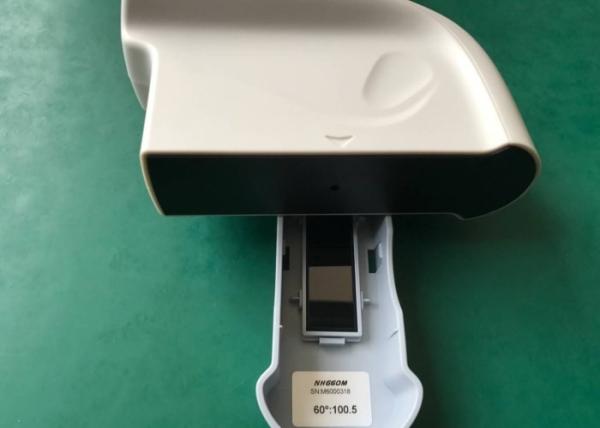

More Pictures

Applications

NHG60M Small Aperture Paint film Digital Gloss Meter is widely used to test glossiness in these industries, such as automobile, paint, ink, marble, varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
