Specifications
Brand Name :
3nh
Model Number :
NR110
Certification :
CE / ROHS / TUV / FCC / ISO9001:2015
Place of Origin :
P.R.China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
1 working day
Packaging Details :
Packed with carton box
Display :
TFT 2.8 inch
Measuring time :
0.4s
Measurement aperture :
Φ4mm
Illumination/Viewing geometry :
8° / d
Standard :
CE/ROHS/FCC/TUV
Light source :
D65
Description

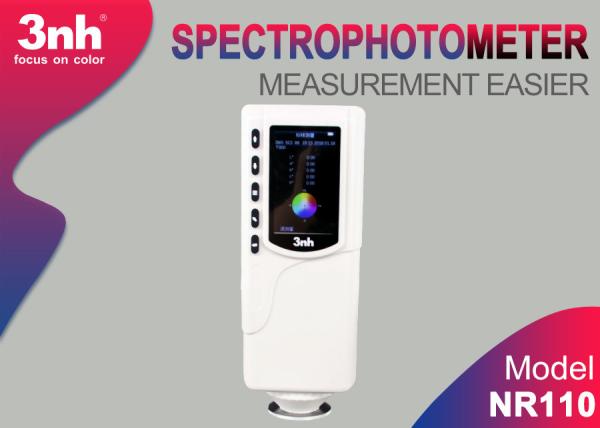

NR110 portable spectrophotometer colorimeter Netherlands CIE lab colour measurement equipment ​

Double Locating: Illuminating locating and cross locating

Double Measurement End Face: Large area measurement and small area measurement

New Integrating Sphere Design: More stable measurement

Equipped with Rechargeable High-Capacity Li-ion Battery

Product Advantages


  1. Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
  2. Double Locating: Illuminating locating and precise cross locating.
  3. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
  4. New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Having the advantages of the highest measurement stability and precision.
  5. 4mm Measuring Aperture.
  6. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
  7. Configure CQCS3 software. Connect PC computer to realize more functions.
  8. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
  9. Hand-head structure: small and convenient; make the measurement easier.
  10. Exquisite appearance: adopts traditional and fashionable aesthetic designs.
  11. Spending huge sums on high-end mold. Product consistency approaches 100%.
  12. High cost performance: large output, good quality, cheap products

Applicable Industries


3nh portable spectrophotometer colorimeter can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.

Technical Specifications


Illuminating/Viewing Geometry 8/d
Measuring Aperture Φ4mm
Detector Silicon photoelectric diode
Locating Illuminating Locating/Cross Locating
Measurement End Face Large stable end face and small concave-convex end face
Color Space

CIEL*a*b*C*h* CIEL*a*b*

CIEXYZ

Color Difference Formula △E*ab △L*a*b* △E*C*h*
Light Source D65
Light Source Device LED blue light excitation
Errors Between Each Equipment ≤0.80ΔE*ab
Storage 100pcs standards 20000pcs samples
Repeatability

Standard deviation within ΔE*ab 0.08

Average of 30 measurements of standard white plate

Language English/Chinese
Weight 450g
Dimension 205×67×80 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Charging Time 8 hours--100% electricity
PC Software CQCS3 Software
Printer (optional) Miniature thermal printer

*Note: The specifications are subject to change without notice
