Car Paint Spectrometer CIElab Paint Color Matching Tool Laboratory Plastic Colorimeter YS3010
Car Paint Spectrometer CIElab Paint Color Matching Tool Laboratory Plastic Colorimeter YS3010
Car Paint Spectrometer CIElab Paint Color Matching Tool Laboratory Plastic Colorimeter YS3010
Car Paint Spectrometer CIElab Paint Color Matching Tool Laboratory Plastic Colorimeter YS3010
Car Paint Spectrometer CIElab Paint Color Matching Tool Laboratory Plastic Colorimeter YS3010
Car Paint Spectrometer CIElab Paint Color Matching Tool Laboratory Plastic Colorimeter YS3010
Car Paint Spectrometer CIElab Paint Color Matching Tool Laboratory Plastic Colorimeter YS3010
Car Paint Spectrometer CIElab Paint Color Matching Tool Laboratory Plastic Colorimeter YS3010
Specifications
Brand Name :
3nh
Model Number :
YS3010
Certification :
CE / ROHS / TUV / ISO9001:2015
Place of Origin :
P.R.China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, L/C
Supply Ability :
1000pcs per month
Delivery Time :
3 working days
Packaging Details :
Packed in Alumimum box firstly, and then reinforced with carton box for outer packing,Carton Size:40.5*20.9*31.9cm
Data Storage :
Standard 2000 Pcs, Sample 20000 Pcs
Observer Angle :
2°/10°
Specular Component :
SCI&SCE
Screen :
Large capacitive touch screen
Inter-instrument Error :
MAV/SCI: ΔE*≤0.4
Measuring Aperture :
Single Aperture: 8mm/10mm
Description

3nh Reflectance Paint Matching Spectrophotomer CIElab High accuracy for plastic

Application Industry

3nh handheld spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.


Specifications:

Model Items YS3060 YS3020 YS3010
Optical Geometry Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
Integrating Sphere Size 48mm
Light Source Combined LED Light, UV Light Combined LED Light
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400-700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0-200%
Measuring Aperture Dual Aperture: 10mm/8mm & 5mm/4mm Customized Aperture: 8mm/4mm/1×3mm Single Aperture: 8mm/10mm
Specular Component SCI&SCE
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),
Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
Observer Angle 2°/10°
Illuminant D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 D65, A, C, D50, D55, D75, F2, F7, F11 D65, A, C, D50
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time 2.6s
Repeatability MAV/SCI: ΔE*≤0.03 MAV/SCI: ΔE*≤0.05 MAV/SCI: ΔE*≤0.06
Inter-instrument Error MAV/SCI: ΔE*≤0.15 MAV/SCI: ΔE*≤0.2 MAV/SCI: ΔE*≤0.4
Measurement Mode Single Measurement, Average Measurement
Locating Method Camera View Finder Locating
Battery Li-ion battery. 5000 measurements within 8 hours
Dimension L*W*H=184*77*105mm
Weight 600g
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth 4.0 USB
Data Storage Standard 2000 Pcs, Sample 20000 Pcs
Language English, Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
Optional Accessory Micro Printer, Powder Test Box
Notes: The specifications are subject to change without notice.


Product detail shows:

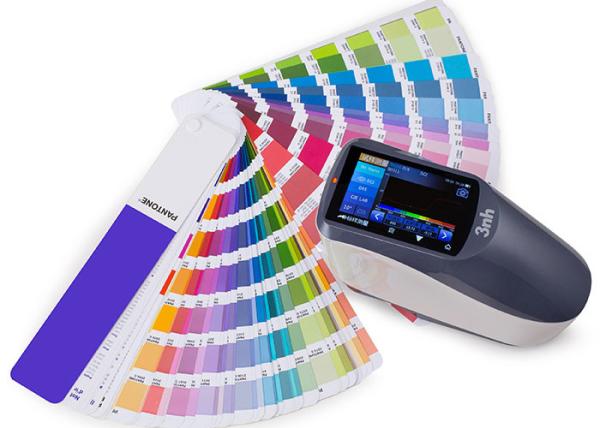

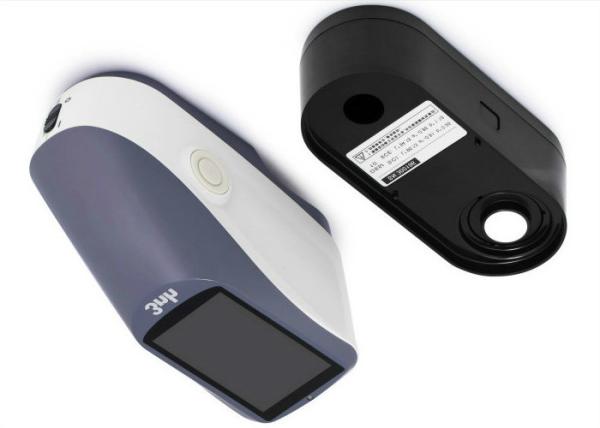

Car Paint Spectrometer CIElab Paint Color Matching Tool Laboratory Plastic Colorimeter YS3010

Car Paint Spectrometer CIElab Paint Color Matching Tool Laboratory Plastic Colorimeter YS3010


FAQ

1: Q: Is your company accept customization?
A: We accept OEM/ ODM. Any color and any logo is welcome if placed at least 10pcs.

2: Q:Does your products have warranty?
A: YES, We offer 1 year warranty. Our policy: Is there any quality problem, First, send the defective machine to us and you bear the freight. Second, we send back to you free after fixed.

3: Q: After an order placed, when to deliver?
A: It depends on whether we are in stock or not. If we are, generally we can arrange shipment in 1 days after payment. If not, it will be decided by factory production.

4: Q: How to place an order?
A: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price and freight and other details
d: finish the payment
e: we arrange the shipment
f: you got your products
