Economic Handheld Single Angle Professional Gloss Meters HG60 Paint Granite Woodware Surface Tester
Economic Handheld Single Angle Professional Gloss Meters HG60 Paint Granite Woodware Surface Tester
Economic Handheld Single Angle Professional Gloss Meters HG60 Paint Granite Woodware Surface Tester
Economic Handheld Single Angle Professional Gloss Meters HG60 Paint Granite Woodware Surface Tester
Economic Handheld Single Angle Professional Gloss Meters HG60 Paint Granite Woodware Surface Tester
Economic Handheld Single Angle Professional Gloss Meters HG60 Paint Granite Woodware Surface Tester
Economic Handheld Single Angle Professional Gloss Meters HG60 Paint Granite Woodware Surface Tester
Economic Handheld Single Angle Professional Gloss Meters HG60 Paint Granite Woodware Surface Tester
Specifications
Brand Name :
3nh
Model Number :
HG60
Certification :
CE / ROHS / FCC / ISO9001:2015
Place of Origin :
P.R.China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
1 working day
Packaging Details :
Packed in hard nylon box firstly, and then reinforced with carton box for outer packing
Aperture :
9x15
Measure Angle :
60°
Measuring Range :
0~300GU
Measuring Time :
0.5s
Viewing Screen :
TFT 3.5 inch, capacitive touch screen
Data Save :
Basic mode: 1000
Description

Economic Handheld Single Angle Professional Gloss Meters HG60 Paint Granite Woodware Surface Tester

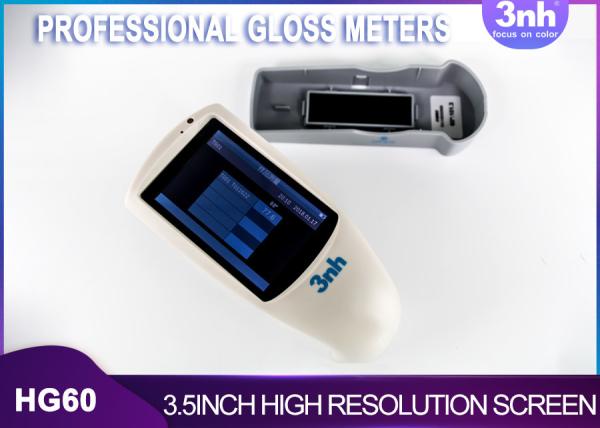

Professional Gloss Meters HG60 is developed by 3nh independently with independent intellectual property. It features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

HG60 gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.


Features


1. 60° angle for semi gloss
2. Concise appearance, feel good
3. Display 5 sets of measurement data, good for comparison
4. Built-in lithium ion rechargeable battery
5. Basic model measurement can meet basic glossiness testing requirements
6. Connect to PC, more extend functions
7. One button for all angles measurement at the same location
8. Comply with international standards
9. Stable performance, easy to read data.

Specifications

HG60 Economic Gloss Meter
Model: HG60
Measuring Angle 60°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm) 9x15
Measuring Range 0~300GU
Division Value 0.1GU
Measurement Range 0-10GU 10-100GU 100-300GU
Repeatability ± 0.1GU ± 0.2GU ± 0.2%GU
Reproducibility ± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.5 , ± 1.5%
Measuring Time 0.5s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3200mAh Li-ion Battery ,>10000 times(within 8 hours)
Display TFT 3.5 inch
Interface USB/RS-232
Storage Basic mode: 1000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.

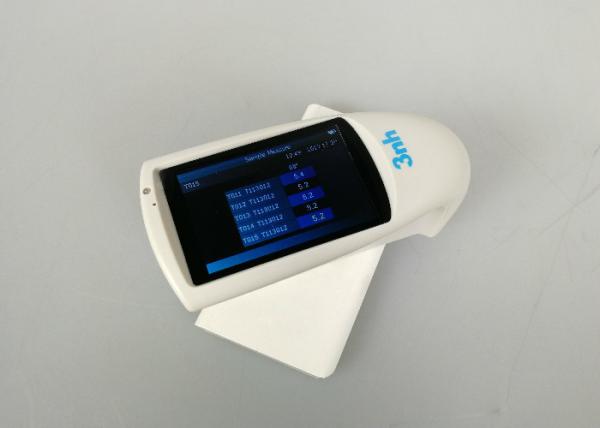

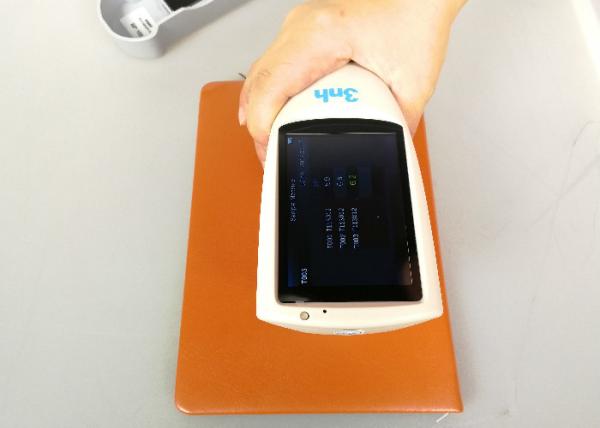

Product detail shows


Economic Handheld Single Angle Professional Gloss Meters HG60 Paint Granite Woodware Surface Tester

Economic Handheld Single Angle Professional Gloss Meters HG60 Paint Granite Woodware Surface Tester

Economic Handheld Single Angle Professional Gloss Meters HG60 Paint Granite Woodware Surface Tester

Applicable Industries

Professional Gloss Meters HG60 is mainly used to measure the surface gloss of paint, paper, plastic, wood furniture, ceramics, marble, ink, aluminum alloy and aluminum oxidized surface and other flat products.
