Specifications
Brand Name :
3nh
Model Number :
NHG60
Certification :
CE / ROHS / FCC / ISO9001:2015
Place of Origin :
P.R.China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
1 working day
Packaging Details :
Packed in hard nylon box firstly, and then reinforced with carton box for outer packing
Division value :
0.1GU
Measuring Area (mm) :
9x15
Measuring Range :
0~1000GU
Measuring Time :
0.5s
Viewing Screen :
TFT 3.5 inch, capacitive touch screen
Interface :
USB/RS-232
Description

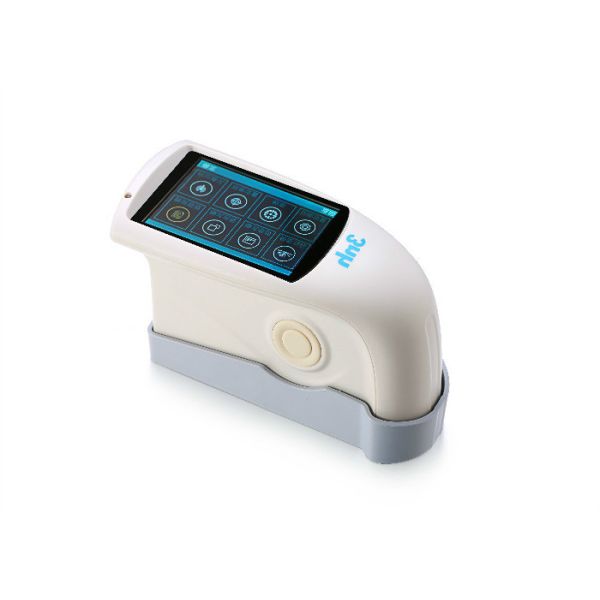

3NH 60 Degree Gloss tester NHG60 Professional Gloss Meters For Paint Architectural Coating Ink

Brief Introduction


NHG60 Professional Gloss Meters is developed by 3nh independentlywith independent intellectual propert. It features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

Main Features


  • 60° angle for semi gloss
  • Display 5 sets of measurement data, good for comparison
  • Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
  • Continuous mode to check uniformity over large areas
  • Connect to PC, more extend functions
  • Input gloss value manually
  • Large touch screen operation, easy to use
  • Beauty appearance, good man-machine communication interface
  • Powerful functions to meet many different requirements
  • Large storage to save over 5000 data
  • Built-in lithium ion rechargeable battery.


Specifications


Model NHG60
Measure Angle 60°
Comply with standard ISO 2813,GB/T 9754,ASTM D 523,ASTM D 2457
Measuring Area (mm) 9X15
Measurement Range 0~1000GU
Division Value 0.1GU
Measurement Range Repeatability Reproducibility 0-10GU 10-100GU 100-1000GU
± 0.1GU ± 0.2GU ± 0.2%GU
± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform with JJG696 first class gloss meter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.2 , ± 1.2%
Measuring Time 0.5s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3200mAh Li-ion Battery, >10000 times(within 8 hours)
Viewing Screen TFT 3.5 inch, capacitive touch screen
Interface USB/RS-232
Data Save Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation
Standard Accessories Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
Optional Accessories Miniature Printer
Note The specifications are subject to change without notice.

Product detail shows


3NH 60 Degree Gloss tester NHG60 Professional Gloss Meters For Paint Architectural Coating Ink

3NH 60 Degree Gloss tester NHG60 Professional Gloss Meters For Paint Architectural Coating Ink

3NH 60 Degree Gloss tester NHG60 Professional Gloss Meters For Paint Architectural Coating Ink

Applicable Industries


NHG60 Professional Gloss Meters is widely used in various industries, including:

1. Paint coating (can be used for surface gloss of doors and windows, wood, furniture, silicon wall surface, etc.)

2. Decoration materials (can be used for decorative surface gloss of interior and exterior walls, cylinders, door frames, etc.)

3. Building materials (the floor is a kind of building material such as solid wood laminate flooring, bamboo wood flooring, cork flooring, etc.)

4. Plastic materials (plastic parts such as household appliances, instrumentation, household hardware, etc.)
